LIBERTY Sump Pump, Elevator, 1/3 HP, 5.2 Amps, 115V

Pumps
>
Sump, Effluent and Sewage Pumps
>
Elevator Sump Pump with Oil Sensor

Write a Review
| Read all Reviews
| Read all Ask & Answer

Sump Pump, Elevator, Housing Cast Iron, HP 1/3, Voltage 115, Amps 5.2, Discharge NPT 1 1/2 In., Alarm 100 db, Max. Head 22 Ft., Max. Dia. Solids 1/2 In., Max. Temp. 140 F, Impeller Material Polypropylene, Shaft Seal Carbon, Ceramic, Buna, Height 10 1/2 In., Dia. 9 39/64 In., Application Elevator Sumps, Transformer Vaults, Commercial Applications, Warranty Length 2 Years, Agency Compliance CSA/UL

Grainger Item #	2WML9
Price (ea.)	$2,931.00
Brand	LIBERTY
Mfr. Model #	ELV250
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	32.04
Availability	Ready to Ship
Catalog Page No.	3867
Country of Origin (Country of Origin is subject to change.)	USA

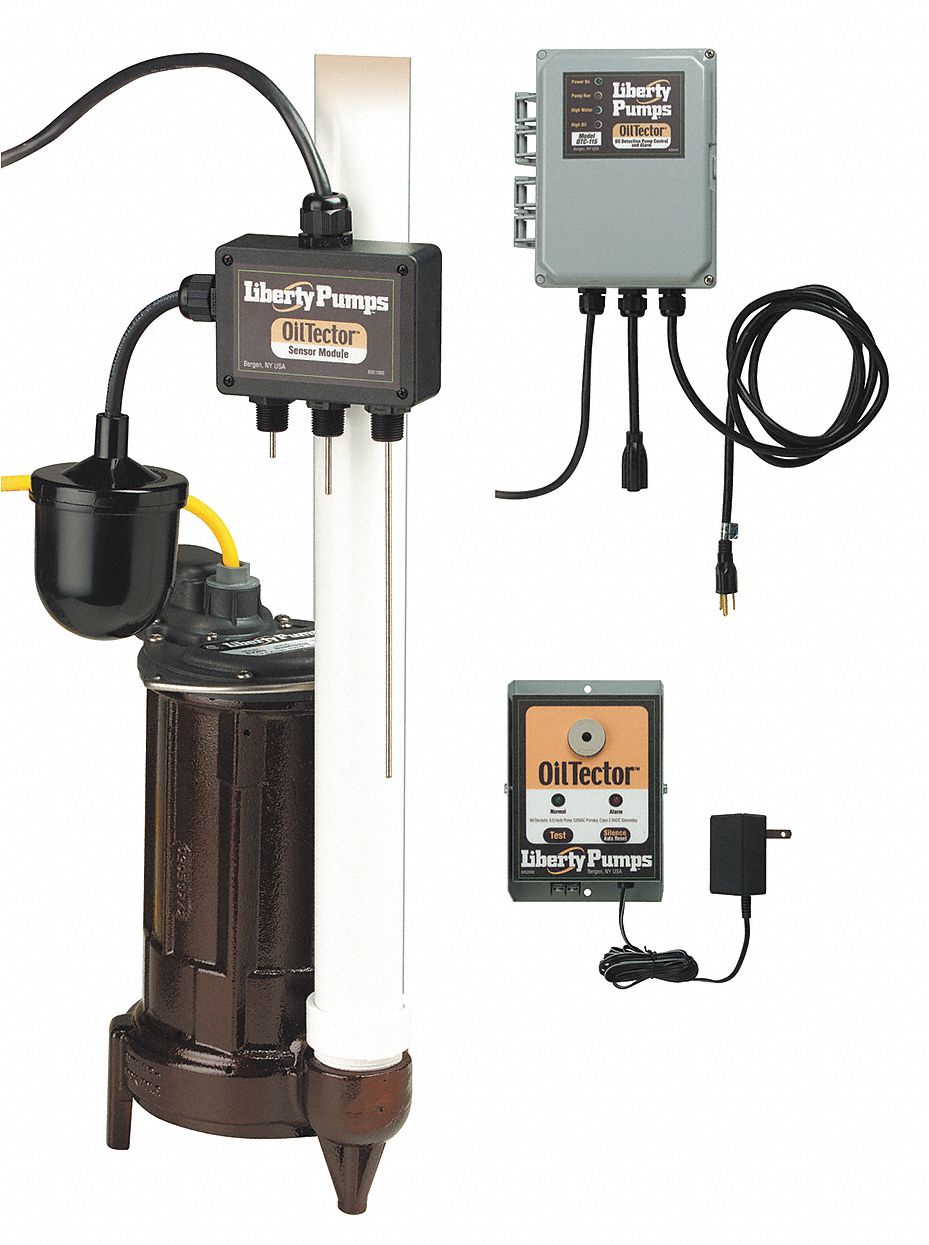

Sump Pump, Elevator, 1/3 HP, 5.2 Amps, 115V

Enlarge Image

Qty.

Add Grainger TripleGuard® repair & replacement coverage

for $299.00 each.

Price shown may not reflect your price. Sign in or register.

When can I get it? Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Sump Pump
Type		Elevator
HP		1/3
Switch Type		Sensor
Base Material		Cast Iron
Housing		Cast Iron
Top Material		Polypropylene
Impeller Material		Polypropylene
Voltage		115
Amps		5.2
Height (In.)		10-1/2
Dia. (In.)		9-39/64
Min. Sump Pit Dia. (In.)		14
Cord Length (Ft.)		10
Discharge NPT (In.)		1-1/2
Max. Dia. Solids (In.)		1/2
GPM of Water @ 5 Ft. of Head		45
GPM of Water @ 10 Ft. of Head		37
GPM of Water @ 15 Ft. of Head		26
GPM of Water @ 20 Ft. of Head		11
Max. Head (Ft.)		22
Max. Temp. (F)		140
RPM		3450
Thermal Protection		Yes
Duty		Continuous
Motor Type		PSC
Bearing Type		Ball
Shaft Material		Stainless Steel
Shaft Seal		Carbon, Ceramic, Buna
Alarm		100 db
Power Cord Length (Ft.)		25
Sensor Cord Length (Ft.)		15
Features		Oil Sensor
Application		Elevator Sumps, Transformer Vaults, Commercial Applications
Manufacturers Warranty Length		2 Years
Agency Compliance		CSA/UL
