LIBERTY Sump Pump, Wide Angle Piggy-Back, 1/3 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Submersible Sump Pump, Automatic, 1/3 HP, Tether Switch Type, Discharge NPT 1-1/2 In., Voltage 115, Amps 5.2, Cord Length 10 Ft., On Point 10 In., Off Point 4 In., GPM of Water @ 10 Ft. of Head 30, Max. Head 21 Ft., Max. Dia. Solids 3/8 In., Max. Temp. 140 F, Base Material Polypropylene, Housing Aluminum, Impeller Material Polypropylene, Duty Continuous, RPM 3450, Mechanical Seal Buna N, SS, Shaft Material Stainless Steel

Grainger Item #	2WMK2
Price (ea.)	$232.00
Brand	LIBERTY
Mfr. Model #	233
UNSPSC #	40151512
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	11.4
Availability	Typically in Stock
Catalog Page No.	4037
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

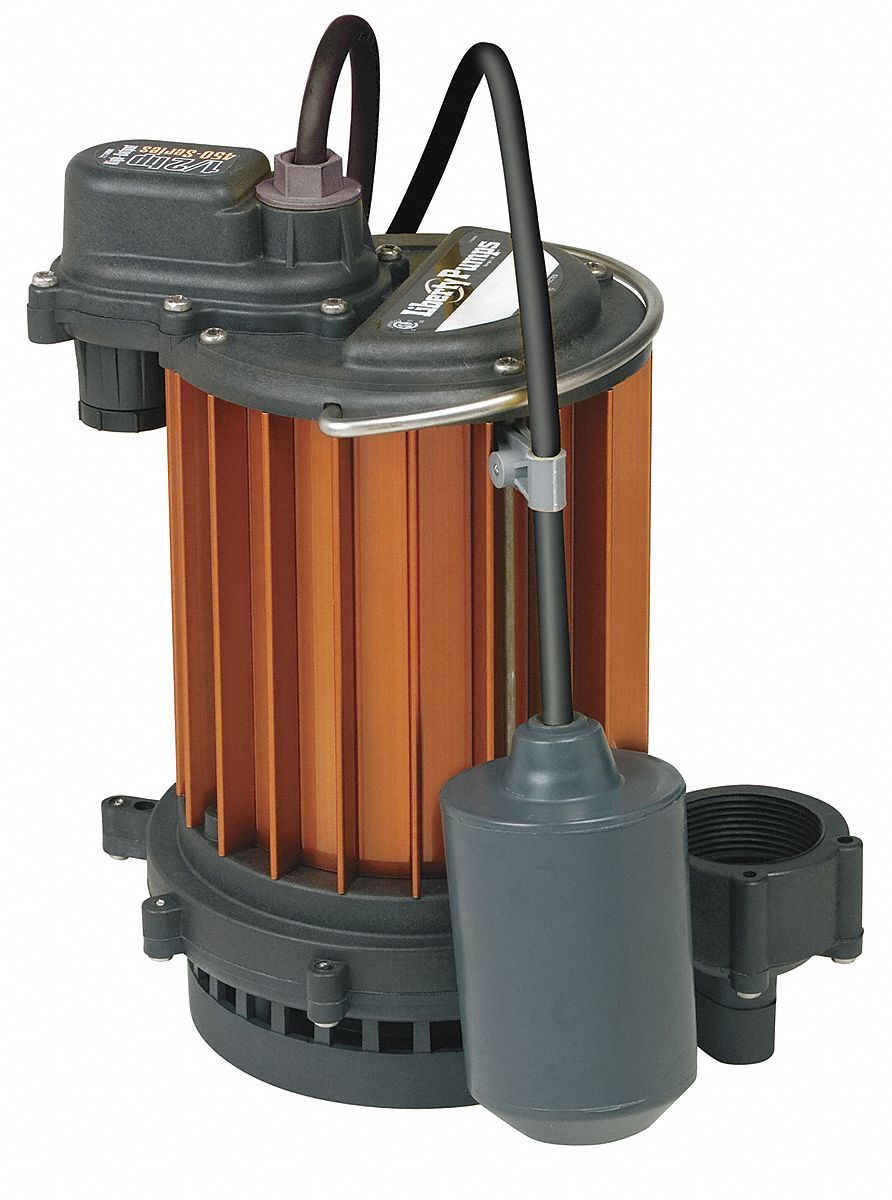

Sump Pump, Wide Angle Piggy-Back, 1/3 HP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Submersible Sump Pump
Type		Automatic
HP		1/3
Switch Type		Tether
Discharge NPT (In.)		1-1/2
Voltage		115
Amps		5.2
Cord Length (Ft.)		10
Min. Sump Pit Dia. (In.)		14
On Point (In.)		10
Off Point (In.)		4
GPM of Water @ 5 Ft. of Head		37
GPM of Water @ 10 Ft. of Head		30
GPM of Water @ 15 Ft. of Head		19
GPM of Water @ 20 Ft. of Head		4
Max. Head (Ft.)		21
Height (In.)		10-1/2
Dia. (In.)		9-5/8
Max. Dia. Solids (In.)		3/8
Max. Temp. (F)		140
Base Material		Polypropylene
Housing		Aluminum
Top Material		Polypropylene
Impeller Material		Polypropylene
Duty		Continuous
RPM		3450
Thermal Protection		Yes
Bearing Type		Ball
Shaft Seal		Buna N, Stainless Steel
Mechanical Seal		Buna N, SS
Motor Type		PSC
Shaft Material		Stainless Steel
Features		Mercury Free Float
Standards		CSA, cUS
