Pumps
>
Pump Controls
>
Float Switches

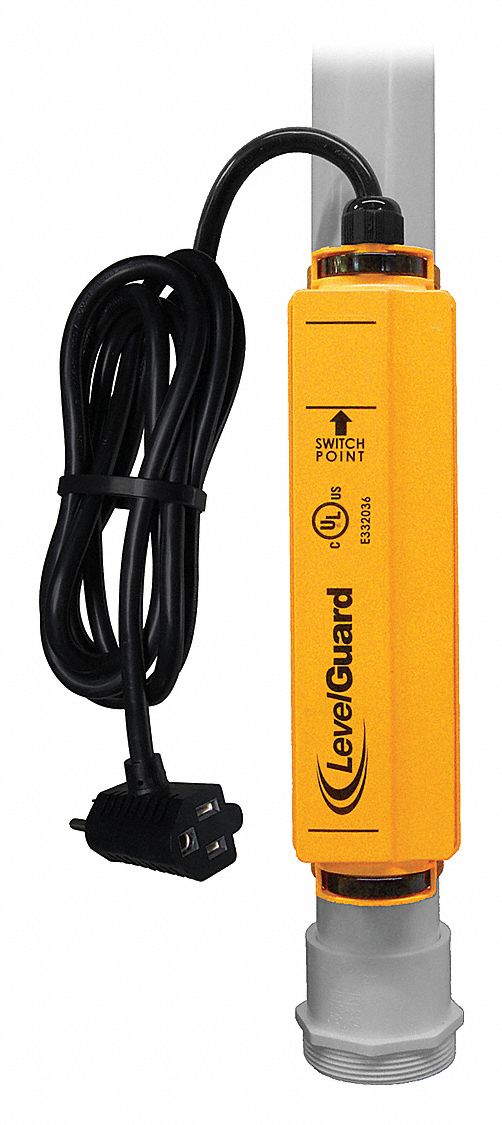

LEVELGUARD Electric Sump Pump Switch, 9 Ft. Cord

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump Switch, Tether, Solid State, Normally Open, Plug Connection, Max. Amps Running 12, Voltage 115, Cord Length 9 Ft., Wire Gauge 14, Pumping Range Min./Max. 0 to 10, Overall Length 117.5 In., Electronic Operation, Mounts Vertical, For Use With 1/2 HP And Under Submersible Sump Pumps, 120 V, 60hz, Single Phase Only, ABS Plastic Body Material, Control Range 10 In, Turns Off At 0 In, Turns On At 6 In

Grainger Item #	20X772
Price (ea.)	$133.55
Brand	LEVELGUARD
Mfr. Model #	Z24800A1Z
UNSPSC #	39121531
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.05
Availability	Typically in Stock
Catalog Page No.	4049
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump Switch
Type		Tether, Solid State
Switch Type		Normally Open
Connection		Plug
Max. Amps Running		12
HP @ 1 Phase - 115V		0.5
Voltage		115
Cord Length (Ft.)		9
Wire Gauge		14
Pumping Range Min./Max.		0 to 10
Overall Length (In.)		117.5
Length		117.5"
Width		2.45"
Height		10"
VA Rating		1440
Max. Temp. (F)		122
Max. Temp. (C)		50
Operation		Electronic
Mounts		Vertical
For Use With		1/2 HP And Under Submersible Sump Pumps, 120 V, 60hz, Single Phase Only
Body Material		ABS Plastic
Control Range		10"
Max. Voltage		120
Max. Wattage		1176
Turns Off At		0"
Turns On At		6"
Agency Compliance		UL Recognized
Includes		Pump Switch, 5 Zip Ties, and Instruction Booklet
