LEESON Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, 3-Phase, 1/2 HP, 1725 Nameplate RPM, Voltage 208-230/460, Phase 3, 56C Frame, Totally Enclosed Nonventilated, Full Load Amps 1.6-1.6/0.8, 60/50 Hz, Face/Base Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 10-3/4 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Body Dia. 6-9/16 In., Length Less Shaft 8-7/8 In., Continuous Duty, Frame Material Stainless Steel

Grainger Item #	4YED7
Price (ea.)	$988.50
Brand	LEESON
Mfr. Model #	117119.00
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	42.17
Availability	Typically in Stock
Catalog Page No.	35
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

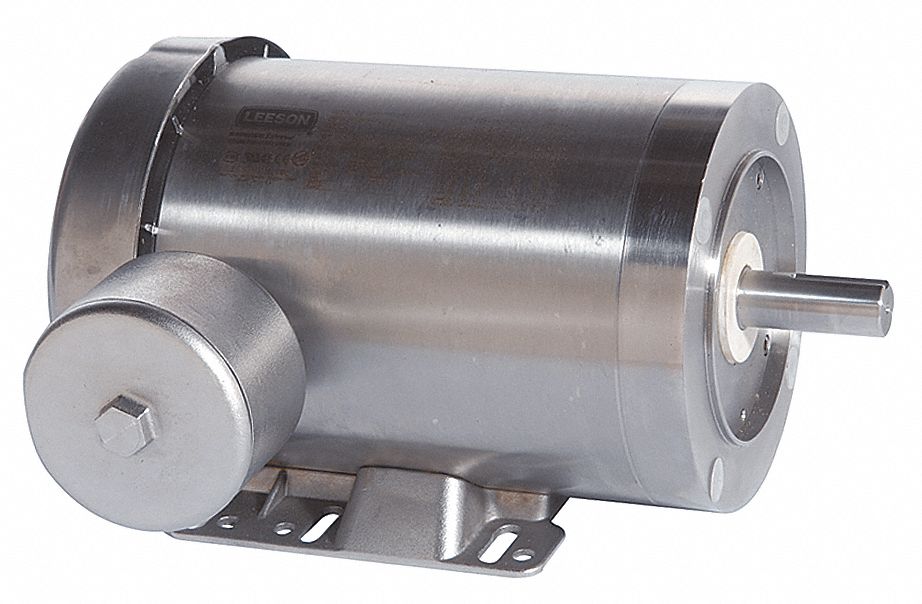

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Nonventilated
HP		1/2
Nameplate RPM		1725
NEMA/IEC Frame		56C
Frame		56C
NEMA Design		B
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		1.6-1.6/0.8
Phase		3
Hz		60/50
Mounting		Face/Base
Bearings		Ball
Frame Material		Stainless Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Body Dia.		6-9/16"
Length Less Shaft		8-7/8"
Overall Length		10-3/4"
Insulation Class		F
RPM Range		1400-1800
Duty		Continuous
Shaft Material		303 Stainless Steel
Conduit Box		Oversized Stainless Steel BICB and Threaded Cover with O Ring
Drain Plugs		None
Endshields		Stainless Steel
Nominal Efficiency		78.5%
Application		Chemical Processing
Footnotes		8, 11
Includes		Frame, Base, Conduit Box Cover Endshields and Bearing Carrier Cover
Standards		UL Recognized (E57948), CSA Certified (LR33543), CSA Energy Efficiency Verification Program (EEV 78720-1), BISSC (769)
