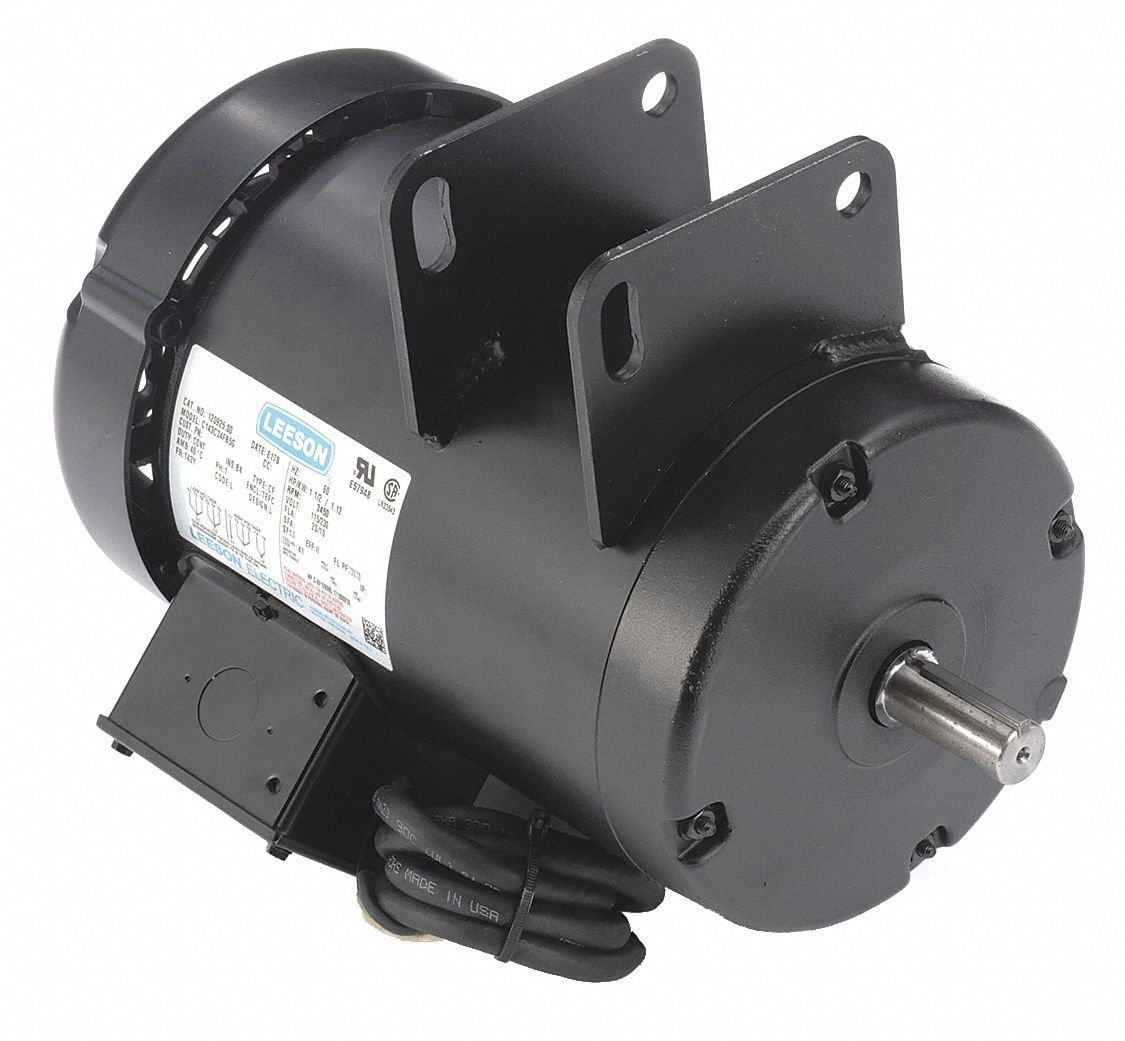

Table Saw Motor, Capacitor-Start, Totally Enclosed Fan-Cooled, 1-1/2 HP, 3450 Nameplate RPM, 143Y NEMA/IEC Frame, Voltage 115/230, 60 Hz, 1 Phase, 20.0/10.0 Full Load Amps, Mounting Special Bracket, Thermal Protection None, Insulation Class B, 1.0 Service Factor, Bearings Double-Shielded Ball, Ambient Temperature 40 Degrees C, CW/CCW Rotation, Length Less Shaft 11 In., Shaft Dia. 3/4 In., Shaft Length 1-3/4 In., Standards UL Recognized (E57948), CSA Certified (LR33543)

Grainger Item #	1XEL8
Price (ea.)	$491.75
Brand	LEESON
Mfr. Model #	120925.00
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	45.5
Availability	Typically in Stock
Catalog Page No.	44
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Table Saw Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		1-1/2
Nameplate RPM		3450
NEMA/IEC Frame		143Y
Frame		143Y
Voltage		115/230
Hz		60
Phase		1
Full Load Amps		20.0/10.0
Mounting		Special Bracket
Thermal Protection		None
Insulation Class		B
Service Factor		1.0
Bearings		Double-Shielded Ball
Ambient Temperature		40 Degrees C
Rotation		CW/CCW
Length Less Shaft		11"
Shaft Dia.		3/4"
Shaft Length		1-3/4"
RPM Range		2350-3600
Standards		UL Recognized (E57948), CSA Certified (LR33543)
Includes		50" Long 14/3 Power Cord Less Plug

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

	Item #	Description	Brand Mfr. Model #	Availability	Price
	1XEL9	Saw Motor, 2 HP, 3450 RPM, 115/230V >More Details... Country of Origin: USA	LEESON 120997.00	Typically in Stock	$499.00
