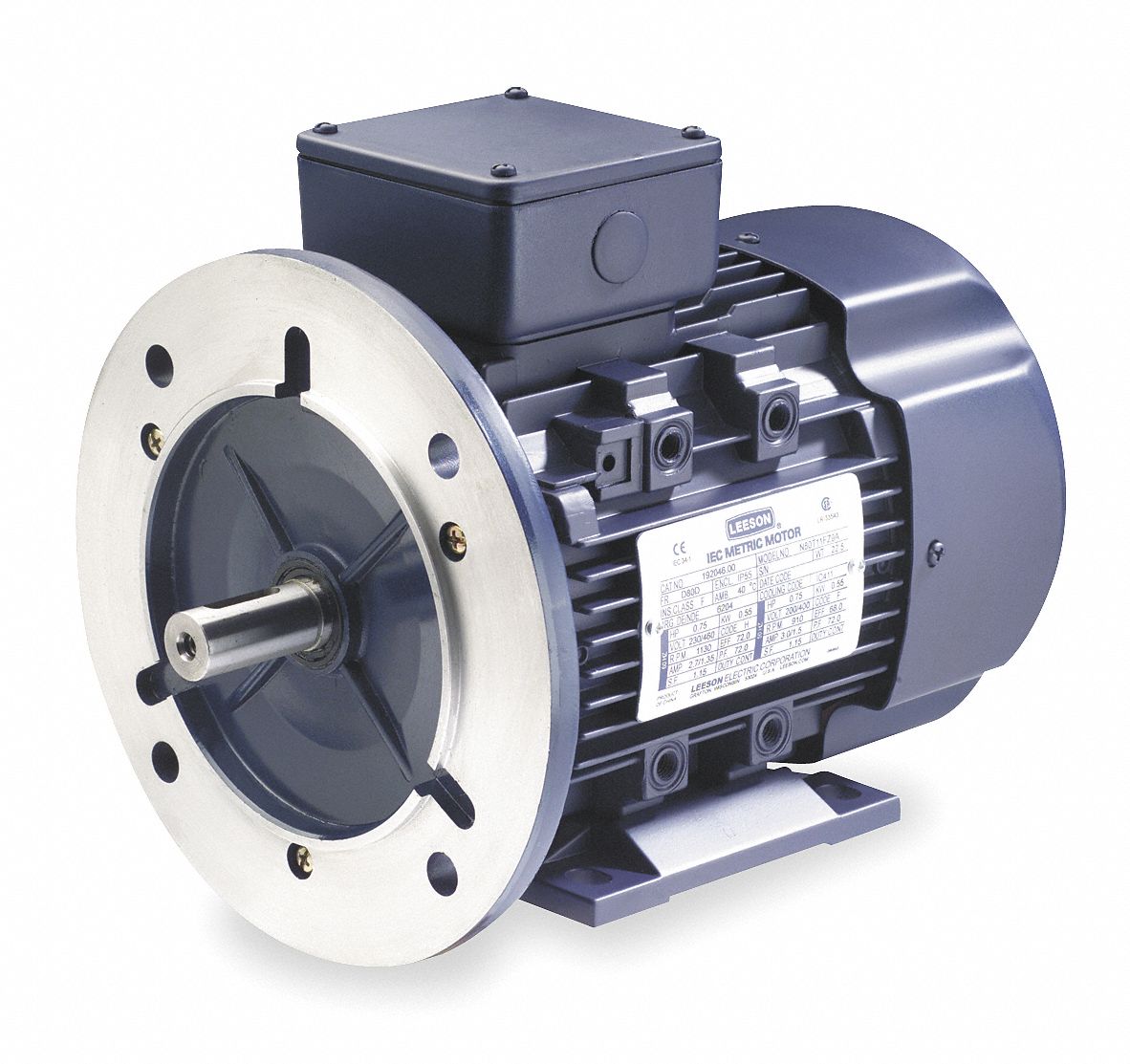

LEESON Metric Motor, 2.7/1.35A, Ball, 40 Deg C

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Metric Motor, 3-Phase, IP55 Enclosure, 3/4 HP, 0.55 kW, Nameplate RPM 1200, NEMA/IEC Frame D80D, Voltage 230/460V, 60/50 Hz, 3 Phase, Full Load Amps 2.7/1.35, B3/B5 Mounting, Thermal Protection None, B3/B5 Flange Mounting Type, Insulation Class F, Service Factor 1.15, Ball Bearings, Frame Material Aluminum, Ambient Temperature 40 Degrees C, Ambient (C) 40, CW/CCW Rotation, Nominal Efficiency 72.0 Percent, Continuous Duty, 1000-1380

Grainger Item #	3GVN7
Price (ea.)	$298.50
Brand	LEESON
Mfr. Model #	192046.00
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	25.69
Availability	Typically in Stock
Catalog Page No.	23
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Metric Motor
Motor Type		3-Phase
Enclosure		IP55
HP		3/4
kW		0.55
Nameplate RPM		1200
NEMA/IEC Frame		D80D
Frame		D80D
Voltage		230/460V
Hz		60/50
Phase		3
Full Load Amps		2.7/1.35
Mounting		B3/B5
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Aluminum
Ambient Temperature		40 Degrees C
Rotation		CW/CCW
Nominal Efficiency		72.0%
Duty		Continuous
RPM Range		1000-1380
Standards		UL Recognized, CSA Certified, CE Certified
Includes		Terminal Board, Multi Mount Repositionable Feet to Allow for 3 Conduit Box Positions
