Motors
>
General Purpose AC Motors
>
Metric Three Phase Motors

LEESON Metric Motor, 230/460V, Ball, B3/B14

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Metric Motor, 3-Phase, IP55 Enclosure, 1/4 HP, 0.18 kW, Nameplate RPM 1800, NEMA/IEC Frame D63C, Voltage 230/460V, 60/50 Hz, 3 Phase, Full Load Amps 1.0/0.5, B3/B14 Mounting, Thermal Protection None, B3/B14 Foot/Small Flange Mounting Type, Insulation Class F, Service Factor 1.15, Ball Bearings, Frame Material Aluminum, Ambient Temperature 40 Degrees C, Ambient (C) 40, CW/CCW Rotation, Nominal Efficiency 68.0 Percent, Continuous Duty, 1400-1800, UL Recognized, CSA Certified, CE Certified

Grainger Item #	2NE16
Price (ea.)	$211.00
Brand	LEESON
Mfr. Model #	192018.00
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	11.85
Availability	Typically in Stock
Catalog Page No.	23
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Metric Motor
Motor Type		3-Phase
Enclosure		IP55
HP		1/4
kW		0.18
Nameplate RPM		1800
NEMA/IEC Frame		D63C
Frame		D63C
Voltage		230/460V
Hz		60/50
Phase		3
Full Load Amps		1.0/0.5
Mounting		B3/B14
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Aluminum
Ambient Temperature		40 Degrees C
Rotation		CW/CCW
Nominal Efficiency		68.0%
Duty		Continuous
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE Certified
Includes		Terminal Board, Multi Mount Repositionable Feet to Allow for 3 Conduit Box Positions

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Motors > General Purpose AC Motors > Metric Three Phase Motors

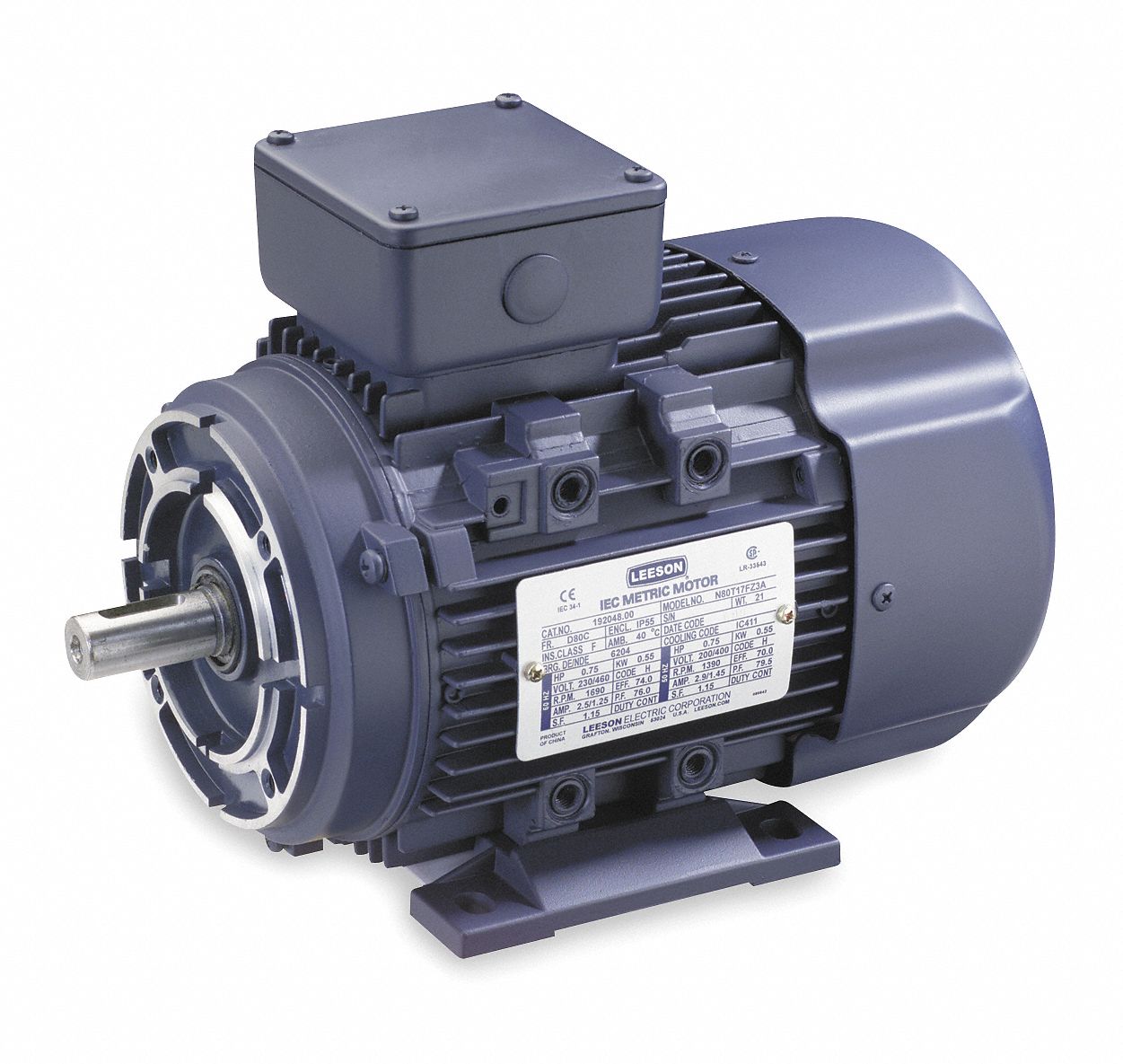

LEESON Metric Motor, 230/460V, Ball, B3/B14
