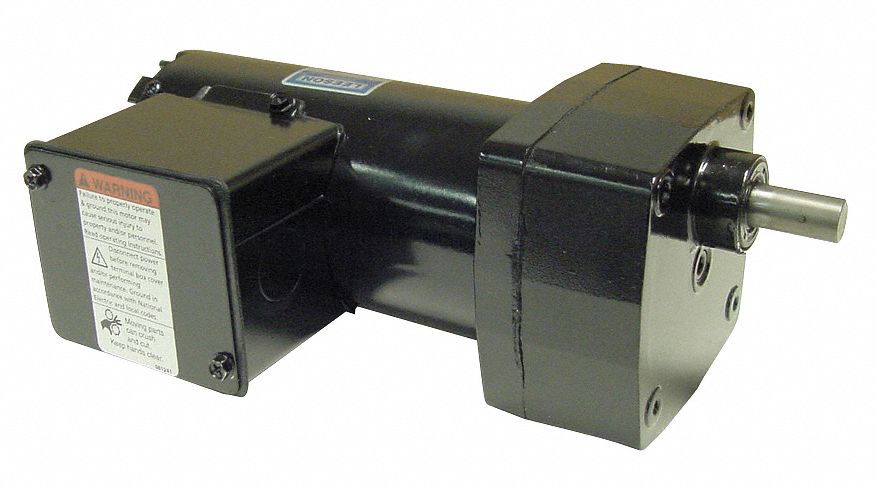

LEESON AC Gearmotor, Inverter Duty, RPM 142

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Parallel Shaft, Voltage Rating 208-230, 3 Phase, 60 Hz, Nameplate RPM 142, Full Load Torque (In.-Lbs.) 24.0, Overhung Load (Lb.) 155, Input HP 1/15, Gear Ratio 12:1, Full Load Amps .4, Insulation Class F4, TENV Enclosure, None Thermal Protection, All Position Except Shaft Up Mounting, Motor Type 3-Phase, Black High Gloss Enamel Finish, Rolled Steel Housing, Inverter Duty

Grainger Item #	6HHE2
Price (ea.)	$526.50
Brand	LEESON
Mfr. Model #	M1125284.00
UNSPSC #	20101617
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	11.0
Availability	Typically in Stock
Catalog Page No.	114
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC Gearmotor
Type		Parallel Shaft
Voltage Rating		208-230
Phase		3
Hz		60
Shaft Orientation		Parallel
Nameplate RPM		142
No Load RPM		150
Full Load Torque (In.-Lbs.)		24.0
Overhung Load (Lb.)		155
Input HP		1.15
Gear Ratio		12:1
Full Load Amps		.4
Full Load Amps @ 230V		.4
Insulation Class		F4
Enclosure		TENV
Thermal Protection		None
Ambient (C)		40
Rotation		Reversible
Mounting		All Position Except Shaft Up
Motor Type		3-Phase
Length Less Shaft (In.)		8.73
Shaft Dimensions (In.)		1/2 x 1
Keyway (In.)		.25 X .75
Bearings		Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Lubrication		Permanent Heavy-Duty Gear Oil
Lubrication Quantity (Qt.)		0.1
Finish		Black High Gloss Enamel
Housing		Rolled Steel
Gear Case		Die Cast Aluminum
Gears		Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9
Seals		Single Lip, Spring Loaded, Heavy Duty
Application		Inverter Duty
Agency Compliance		UL/CSA
RPM Range		100 to 150
