Motors
>
Definite Purpose AC Motors
>
50 Hz Motors

LEESON 50hz Mtr, 3-Ph, 1hp, 1425, 220/380-440, 143TC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

50 Hz Motor, 3-Phase, Totally Enclosed Fan-Cooled, 1 HP, Number of Speeds 1, Nameplate RPM 1425, Voltage 220/380/440, Hz 50, 3 Phase, Full Load Amps 3.5/2.0/1.75, NEMA/IEC Frame 143TC, Mounting Face, Thermal Protection None, Insulation Class B, 1.15 Service Factor, Bearings Ball, Rotation CW/CCW, Ambient Temperature 40 Degrees C, Shaft Dia. 7/8 In., Shaft Length 2-1/4 In., Length Less Shaft 9-1/4 In., Overall Length 11-1/2 In., RPM Range 1400-1800

Grainger Item #	4GUW3
Price (ea.)	$329.50
Brand	LEESON
Mfr. Model #	121272.00
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	29.0
Availability	Item ships within 4 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

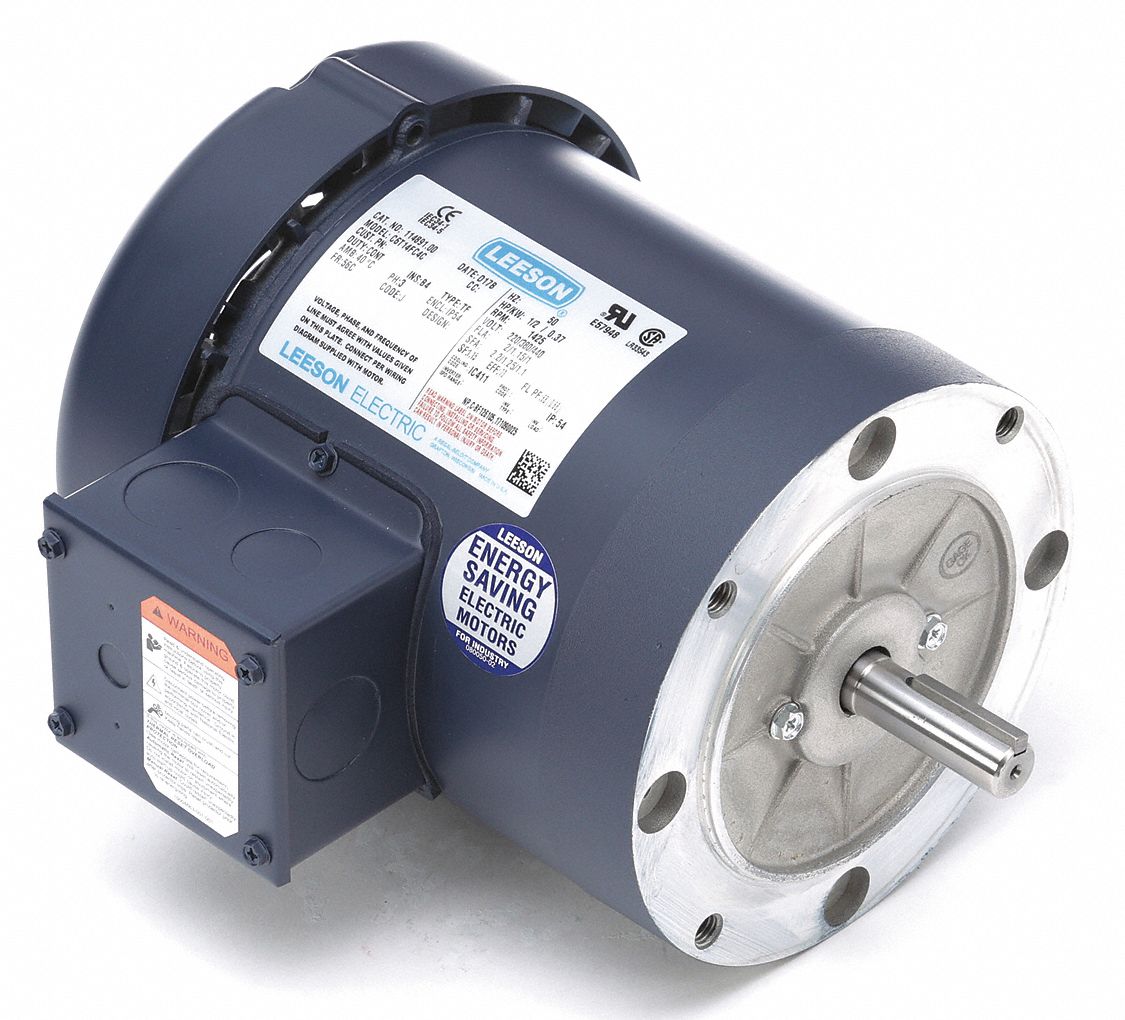

50hz Mtr, 3-Ph, 1hp, 1425, 220/380-440, 143TC

Enlarge Image

Item		50 Hz Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		1
Number of Speeds		1
Nameplate RPM		1425
Voltage		220/380/440
Hz		50
Phase		3
Full Load Amps		3.5/2.0/1.75
NEMA/IEC Frame		143TC
Frame		143TC
Mounting		Face
Thermal Protection		None
Insulation Class		B
Service Factor		1.15
Bearings		Ball
Rotation		CW/CCW
Ambient Temperature		40 Degrees C
Shaft Dia.		7/8"
Shaft Length		2-1/4"
Length Less Shaft		9-1/4"
Overall Length		11-1/2"
RPM Range		1400-1800
