Motors
>
Definite Purpose AC Motors
>
50 Hz Motors

380-440, 56

| Write a Review
| Read all Reviews
| Read all Ask & Answer

50 Hz Motor, 3-Phase, Totally Enclosed Fan-Cooled, 3/4 HP, Number of Speeds 1, Nameplate RPM 2850, Voltage 220/380/440, Hz 50, 3 Phase, Full Load Amps 3.0/1.75/1.5, NEMA/IEC Frame 56, Mounting Base, Thermal Protection None, Insulation Class B, 1.15 Service Factor, Bearings Ball, Rotation CW/CCW, Ambient Temperature 40 Degrees C, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Length Less Shaft 8-11/16 In., Overall Length 10-9/16 In., RPM Range 2350-3600

Grainger Item #	4GUT5
Price (ea.)	$309.75
Brand	LEESON
Mfr. Model #	114306.00
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	22.83
Availability	Item ships within 4 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

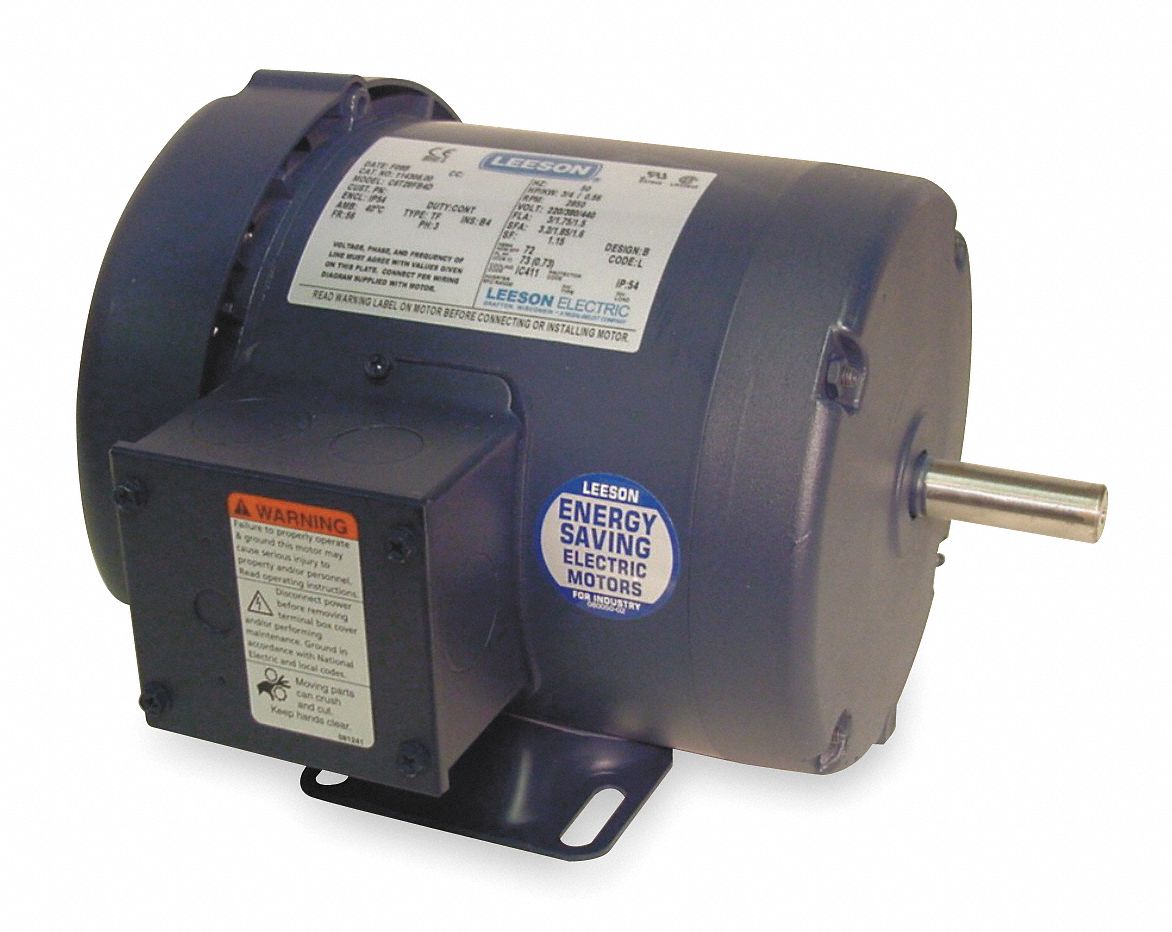

50 Hz Mtr, 3-Ph, 3/4hp, 2850, 220/380-440, 56

Enlarge Image

Item		50 Hz Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		3/4
Number of Speeds		1
Nameplate RPM		2850
Voltage		220/380/440
Hz		50
Phase		3
Full Load Amps		3.0/1.75/1.5
NEMA/IEC Frame		56
Frame		56
Mounting		Base
Thermal Protection		None
Insulation Class		B
Service Factor		1.15
Bearings		Ball
Rotation		CW/CCW
Ambient Temperature		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		8-11/16"
Overall Length		10-9/16"
RPM Range		2350-3600
