Motors
>
Definite Purpose AC Motors
>
50 Hz Motors

LEESON 50 Hz Motor, 5 HP, 1440, 220 V, 184T, TEFC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

50 Hz Motor, Capacitor-Start, Totally Enclosed Fan-Cooled, 5 HP, Number of Speeds 1, Nameplate RPM 1440, Voltage 220, Hz 50, 1 Phase, Full Load Amps 21.0, NEMA/IEC Frame 184T, Mounting Base, Thermal Protection None, Insulation Class F, 1.0 Service Factor, Bearings Ball, Rotation CW/CCW, Ambient Temperature 40 Degrees C, Shaft Dia. 1-1/8 In., Shaft Length 2-3/4 In., Length Less Shaft 14-3/4 In.RPM Range 1400-1800, Footnotes 24

Grainger Item #	4GUL8
Price (ea.)	$871.00
Brand	LEESON
Mfr. Model #	131578.00
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	104.0
Availability	Typically in Stock
Catalog Page No.	43
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

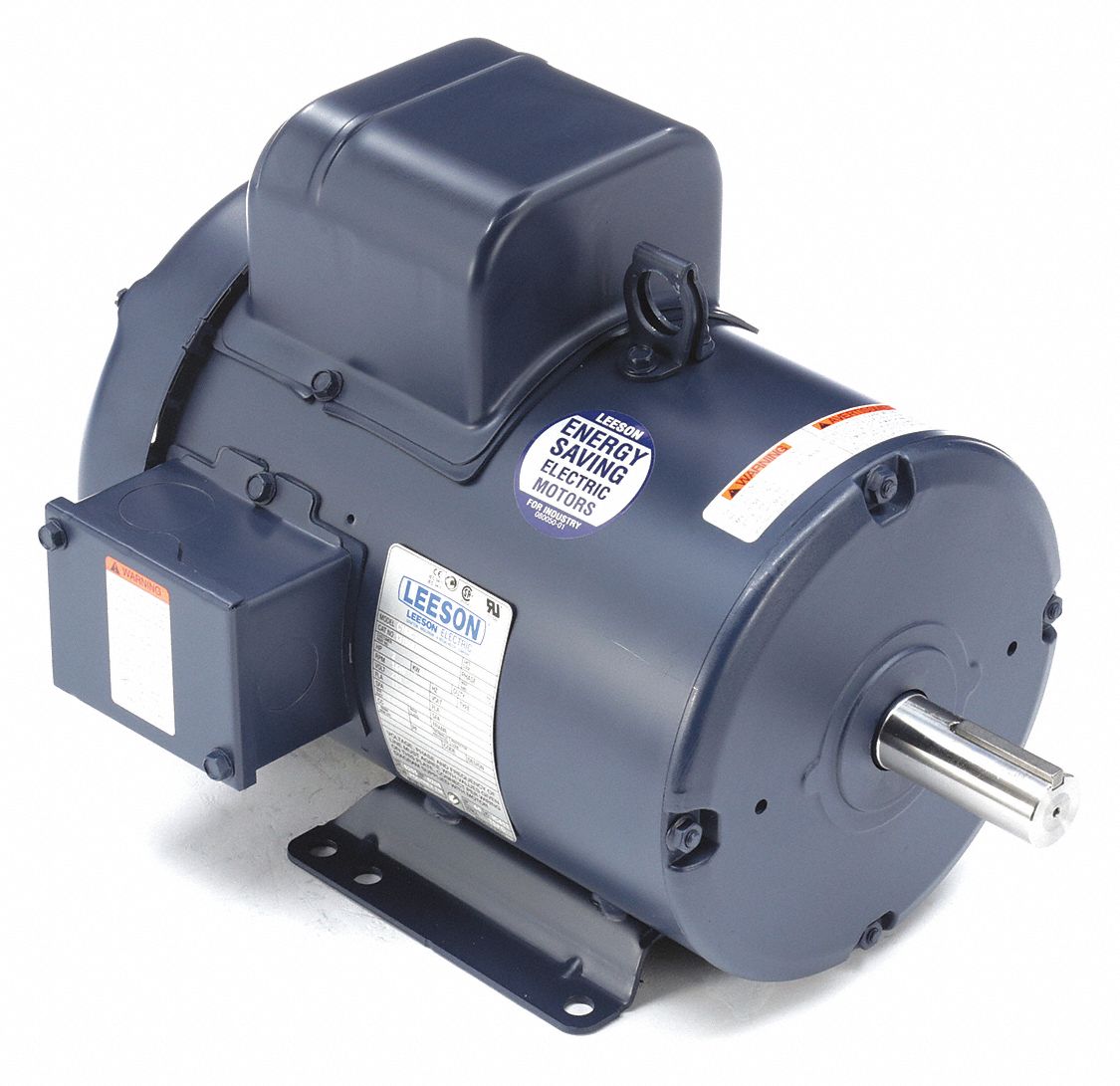

50 Hz Motor, 5 HP, 1440, 220 V, 184T, TEFC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		50 Hz Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		5
Number of Speeds		1
Nameplate RPM		1440
Voltage		220
Hz		50
Phase		1
Full Load Amps		21.0
NEMA/IEC Frame		184T
Frame		184T
Mounting		Base
Thermal Protection		None
Insulation Class		F
Service Factor		1.0
Bearings		Ball
Rotation		CW/CCW
Ambient Temperature		40 Degrees C
Shaft Dia.		1-1/8"
Shaft Length		2-3/4"
Length Less Shaft		14-3/4"
RPM Range		1400-1800
Footnotes		24
