Motors
>
Definite Purpose AC Motors
>
50 Hz Motors

220 V, 56C, TEFC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

50 Hz Motor, Capacitor-Start, Totally Enclosed Fan-Cooled, 1/3 HP, Number of Speeds 1, Nameplate RPM 1425, Voltage 110/220, Hz 50, 1 Phase, Full Load Amps 6.4/3.2, NEMA/IEC Frame 56C, Mounting Face, Thermal Protection Manual, Insulation Class B, 1.0 Service Factor, Bearings Ball, Rotation CW/CCW, Ambient Temperature 40 Degrees C, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Length Less Shaft 9-1/4 In.RPM Range 1400-1800

Grainger Item #	4GUH9
Price (ea.)	$324.00
Brand	LEESON
Mfr. Model #	113921.00
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	23.55
Availability	Typically in Stock
Catalog Page No.	43
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

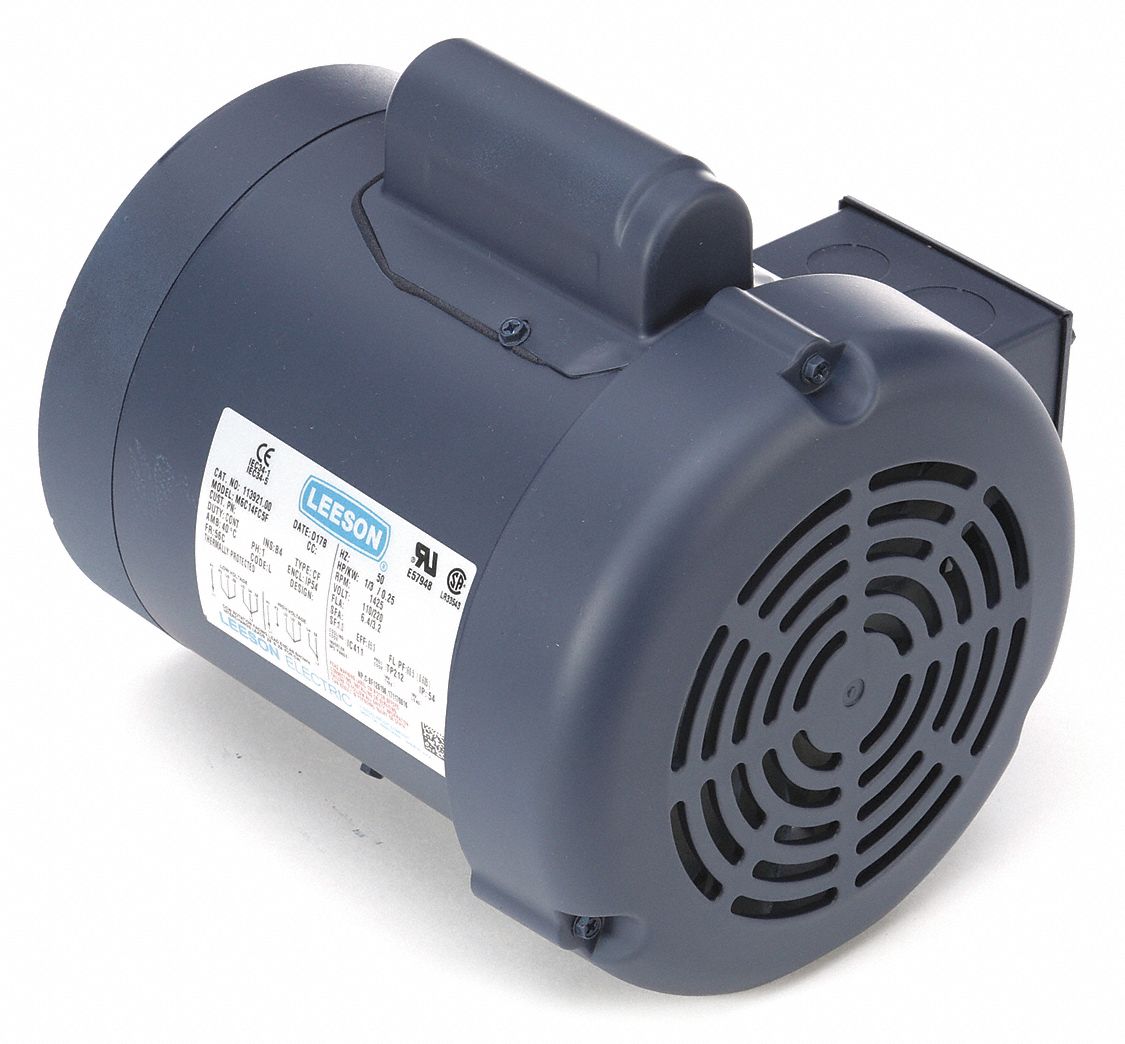

50 Hz Mtr, 1/3 HP, 1425, 110/220 V, 56C, TEFC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		50 Hz Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		1/3
Number of Speeds		1
Nameplate RPM		1425
Voltage		110/220
Hz		50
Phase		1
Full Load Amps		6.4/3.2
NEMA/IEC Frame		56C
Frame		56C
Mounting		Face
Thermal Protection		Manual
Insulation Class		B
Service Factor		1.0
Bearings		Ball
Rotation		CW/CCW
Ambient Temperature		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		9-1/4"
RPM Range		1400-1800
