Motors
>
Definite Purpose AC Motors
>
50 Hz Motors

LEESON 50 Hz Motor, 1 HP, 1425, 110/220 V, 56H, TEFC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

50 Hz Motor, Capacitor-Start, Totally Enclosed Fan-Cooled, 1 HP, Number of Speeds 1, Nameplate RPM 1425, Voltage 110/220, Hz 50, 1 Phase, Full Load Amps 12.8/6.4, NEMA/IEC Frame 56H, Mounting Base, Thermal Protection None, Insulation Class B, 1.0 Service Factor, Bearings Ball, Rotation CW/CCW, Ambient Temperature 40 Degrees C, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Length Less Shaft 11-1/4 In.RPM Range 1400-1800

Grainger Item #	4GUF1
Price (ea.)	$370.50
Brand	LEESON
Mfr. Model #	110066.00
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	36.9
Availability	Typically in Stock
Catalog Page No.	43
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

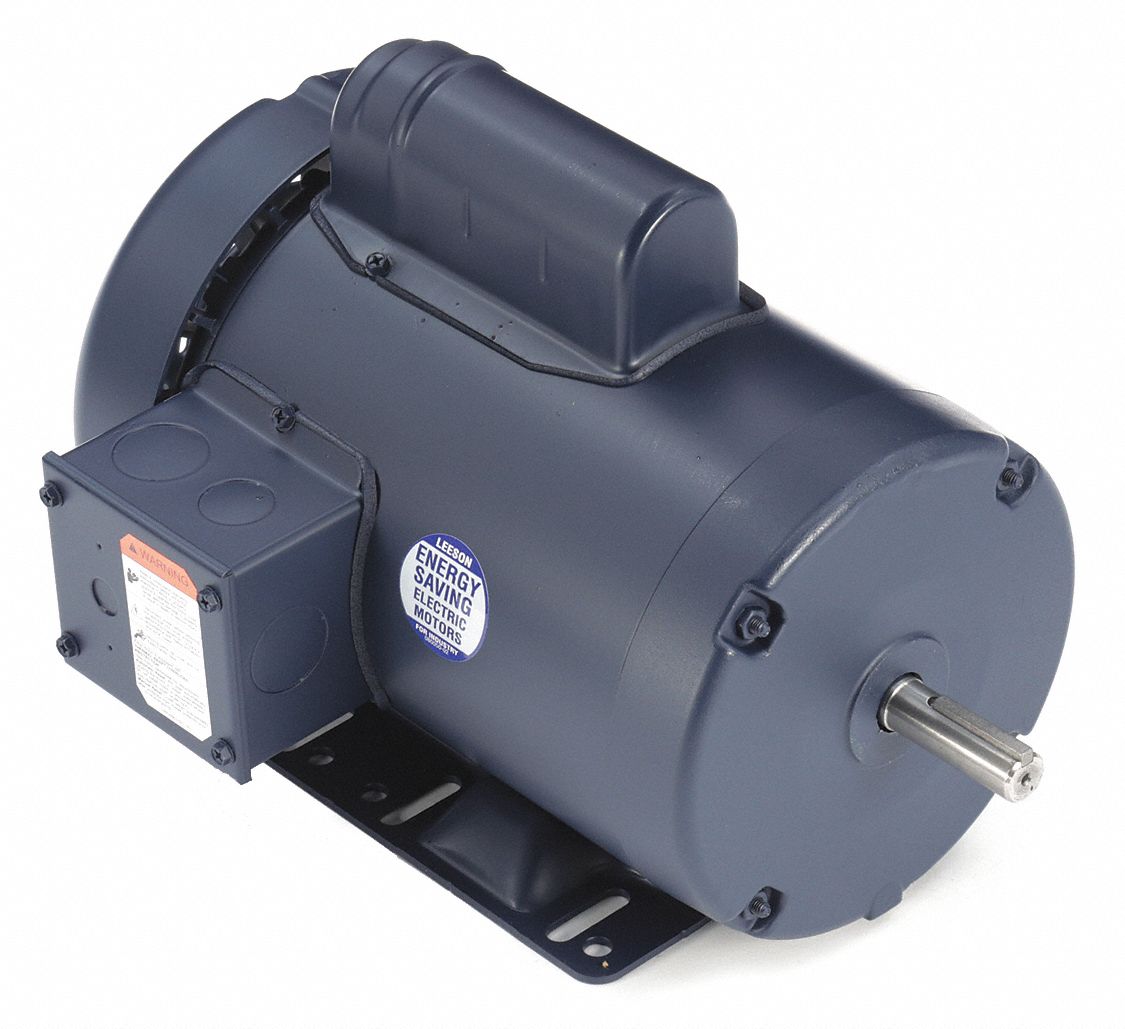

50 Hz Motor, 1 HP, 1425, 110/220 V, 56H, TEFC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		50 Hz Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		1
Number of Speeds		1
Nameplate RPM		1425
Voltage		110/220
Hz		50
Phase		1
Full Load Amps		12.8/6.4
NEMA/IEC Frame		56H
Frame		56H
Mounting		Base
Thermal Protection		None
Insulation Class		B
Service Factor		1.0
Bearings		Ball
Rotation		CW/CCW
Ambient Temperature		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		11-1/4"
RPM Range		1400-1800

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

	Item #	Description	Brand Mfr. Model #	Availability	Price
	4GUF8	50 Hz Motor, 1 1/2 HP, 1425, 110/220 V, 56H >More Details... Country of Origin: USA	LEESON 110424.00	Typically in Stock	$466.00
	Be the First to Write a Review


Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.

	4GUG8	50 Hz Motor, 1 HP, 1425, 110/220 V, 56, TEFC >More Details... Country of Origin: USA	LEESON 113911.00	Typically in Stock	$389.75
	Be the First to Write a Review


Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.

Motors > Definite Purpose AC Motors > 50 Hz Motors

LEESON 50 Hz Motor, 1 HP, 1425, 110/220 V, 56H, TEFC
