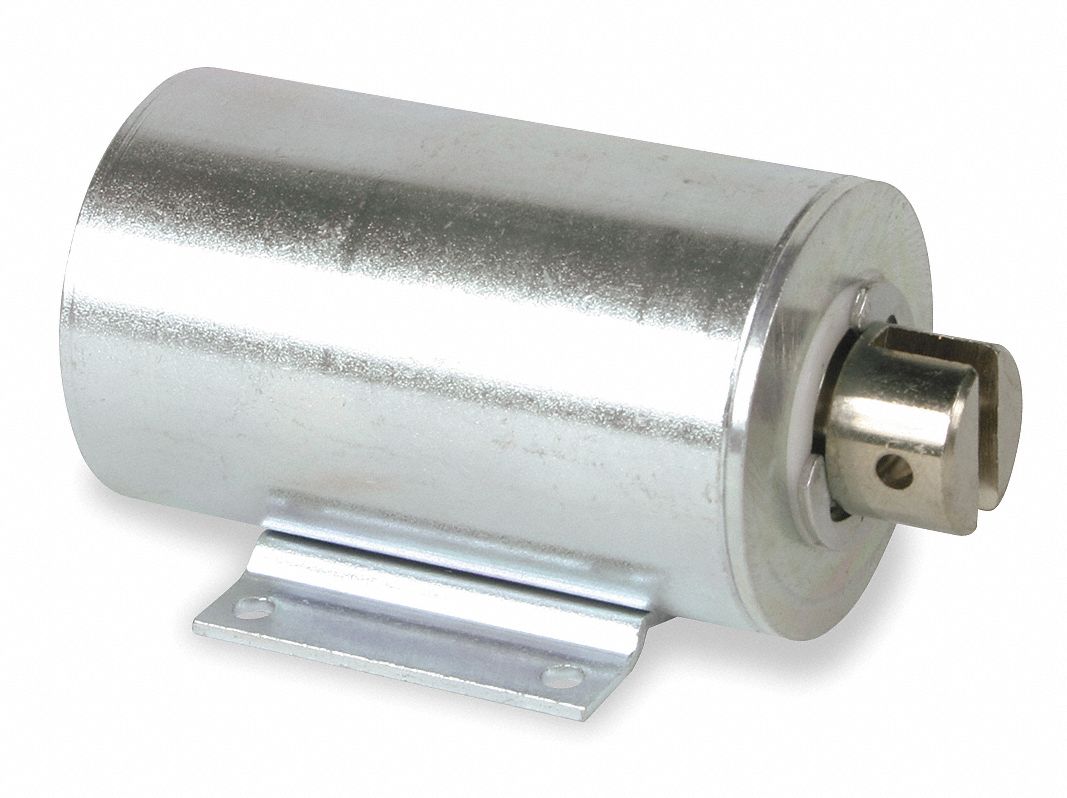

LEDEX Solenoid, Tubular, Coil Volts, 24 DC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Solenoid, Tubular Type, Dia 1 1/4 In, Body Length 2 1/4 In, Coil Volts 24 DC, 0.71 Seated Amps, 17 Seated Watts, 36.90 Ohms Coil Resistance, Class A Coil Insulation, 0.71 Amps @ Max Stroke, Material of Construction Steel, Gravity Value 1.40 Oz, Pull @ 1/8-In Stroke 80 Oz, Pull @ 3/8-In Stroke 16 Oz, Pull @ 1/2-In Stroke 14 Oz, Pull @ 3/4-In Stroke 4 Oz, Lead Wire Terminals, Continuous Duty Cycle

Grainger Item #	1KEJ8
Price (ea.)	$83.00
Brand	LEDEX
Mfr. Model #	174432-027
UNSPSC #	31251510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.1
Availability	Typically in Stock
Catalog Page No.	396
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Solenoid
Type		Tubular
Stroke Range		1/8 to 3/4"
Pull Force Range		4 to 80 oz.
Dia. (In.)		1-1/4
Width (In.)		1-1/2 Dia.
Length (In.)		2-1/2
Body Length (In.)		2-1/4
Coil Volts		24VDC
Seated Amps		0.71
Seated Watts		17
Coil Resistance (Ohms)		36.90
Coil Insulation		Class A
Terminals		Lead Wire
Amps @ Max. Stroke		0.71
Duty Cycle		Continuous
Material of Construction		Steel
Gravity Value (Oz.)		1.40
Standards		RoHs
