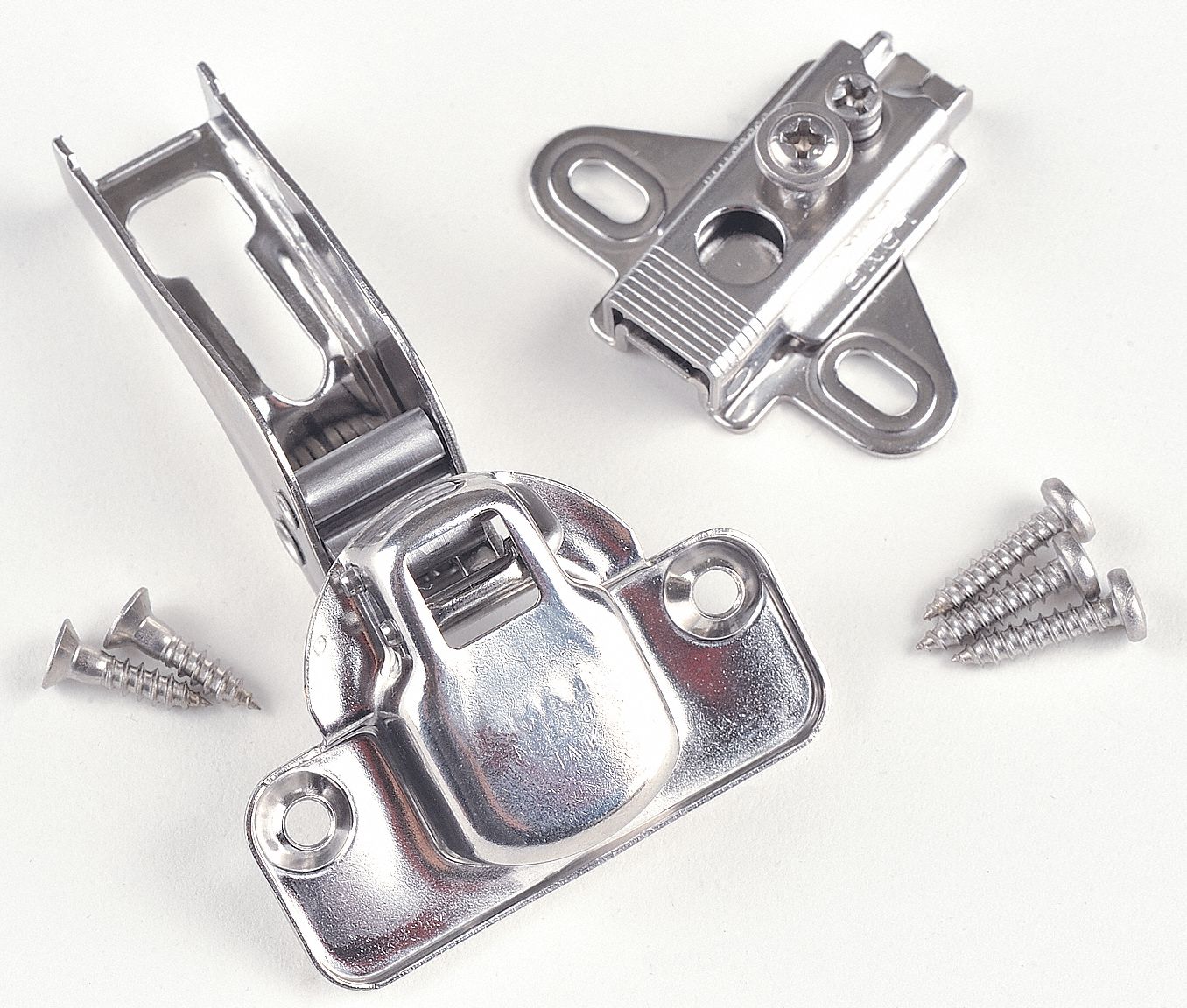

LAMP Concealed Hinge Self-Closing

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hinge, Concealed Self-Closing (9mm Overlay), Material Stainless Steel, Color Polished, Finish Polished, Height 2-9/64 In., Width 1-1/2 In., Pin Material -, Range of Motion 100, Holes per Leaf 2, Pin Type -, 5 Holes, Door Leaf Length 1-1/2 In., Door Leaf Width 2-11/64 In., Frame Leaf Length 1-41/64 In., Frame Leaf Width 1-57/64 In., Load Capacity 15 lb./Pair, Stanley Class Number -, Stanley EDP Number -, Standards -, Mounting Screw-On, Includes Screws, Mounting Plate

Grainger Item #	4WDT9
Price (ea.)	$17.15
Brand	LAMP
Mfr. Model #	304B-C46/9
UNSPSC #	31162403
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.15
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hinge
Type		Concealed Self-Closing (9mm Overlay)
Material		Stainless Steel
Color		Polished
Finish		Polished
Height		2-9/64"
Width		1-1/2"
Range of Motion		100
Holes per Leaf		2
Holes		5
Door Leaf Length		1-1/2"
Door Leaf Width		2-11/64"
Frame Leaf Length		1-41/64"
Frame Leaf Width		1-57/64"
Load Capacity		15 lb./Pair
Mounting		Screw-On
Includes		Screws, Mounting Plate
