LAING THERMOTECH Circulator Pump, 1/150HP, 100-240V, 0.24Amp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circulator Pump, Sealless Magnetic-Drive, Open Loop, 1/150 HP, 1 Phase, Voltage 100-240, 0.24 Amps, Inlet/Outlet 1/2 In Sweat, Housing Material Brass, Max. Temp. 203 F, Max. Working Pressure 150 PSI, Shut-Off 11 Ft., 4800 RPM, Impeller Material Noryl, Auto Thermal Protection, Warranty Length 1 Year

Grainger Item #	5JKG5
Price (ea.)	$342.50
Brand	LAING THERMOTECH
Mfr. Model #	E3-BCSVNN3W-11
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.68
Availability	Typically in Stock
Catalog Page No.	4124
Country of Origin (Country of Origin is subject to change.)	Hungary
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

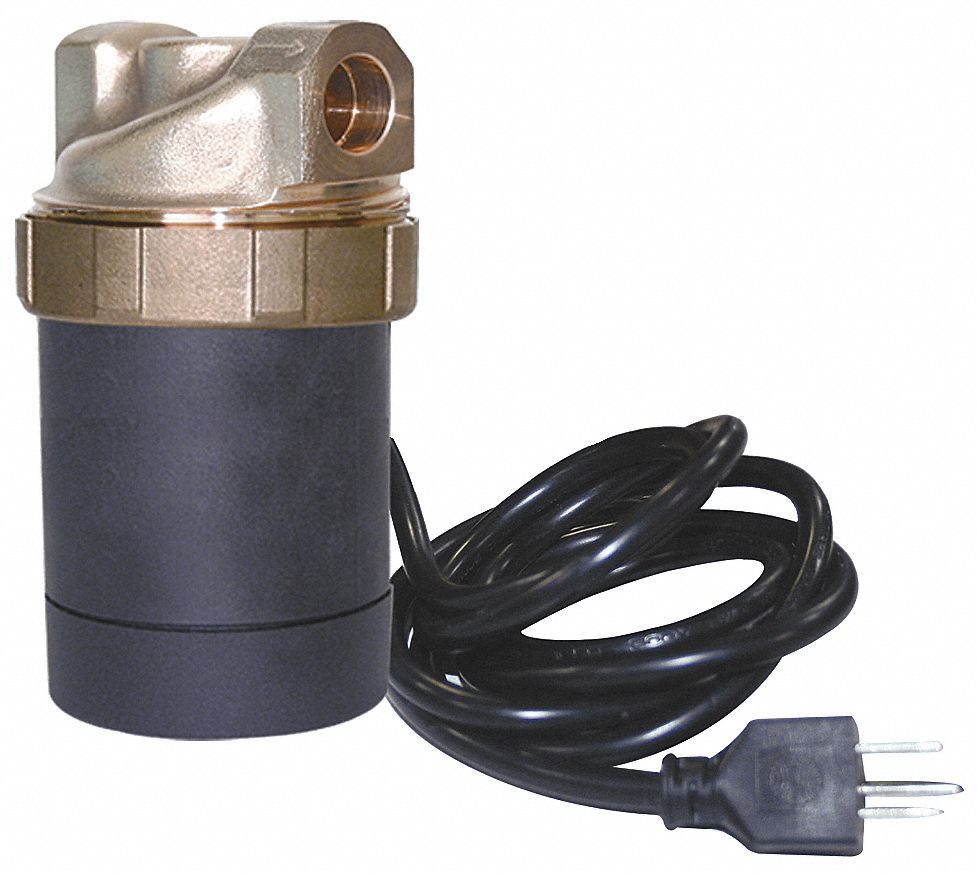

Circulator Pump, 1/150HP, 100-240V, 0.24Amp

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circulator Pump
Type		Open Loop
HP		1/150
Voltage		100-240
Phase		1
Amps		0.24
Inlet/Outlet		1/2" Sweat
Housing Material		Brass
Face to Face Dimension (In.)		2-1/2
Max. Temp. (F)		203
Max. Working Pressure (PSI)		150
Flange/Union Included		No
Shut-Off (Ft.)		11
RPM		4800
Impeller Material		Noryl
Thermal Protection		Auto
GPM of Water @ 4 Ft. of Head		5.6
GPM of Water @ 5 Ft. of Head		5.1
GPM of Water @ 6 Ft. of Head		4.75
GPM of Water @ 7 Ft. of Head		4.25
GPM of Water @ 8 Ft. of Head		3.4
GPM of Water @ 9 Ft. of Head		2.5
GPM of Water @ 10 Ft. of Head		1.5
Length (In.)		4-5/8
Width (In.)		2-3/4
Max. GPM @ Head (Ft.)		5.6 @ 4
Best Efficiency GPM @ Head (Ft.)		4.5 @ 7
Min. GPM @ Head (Ft.)		1.5 @ 10
Drive Type		Magnetic
Bearing Type		Ceramic
Construction		Brass
Watts		27
Pipe Size Return (In.)		1/2
Pipe Size Supply (In.)		1/2
Manufacturers Warranty Length		1 Year
Includes		Power Cord
