LAING THERMOTECH Circulator Pump, 115V, 14 Watts, 3450 RPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circulator Pump, Open Loop, Voltage 115, 14 Watts, 3450 RPM, 1 Phase, Inlet/Outlet NPT 1/2 In., Housing Material Lead Free Brass Volute, Max. Temp. 203 F, Max. Working Pressure 145 PSI, Impeller Material Nylon/ PPO, Automatic Fixed Thermal Protection

Grainger Item #	10D424
Price (ea.)	$566.00
Brand	LAING THERMOTECH
Mfr. Model #	LHB08100092
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.0
Availability	Typically in Stock
Catalog Page No.	4124
Country of Origin (Country of Origin is subject to change.)	Hungary

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

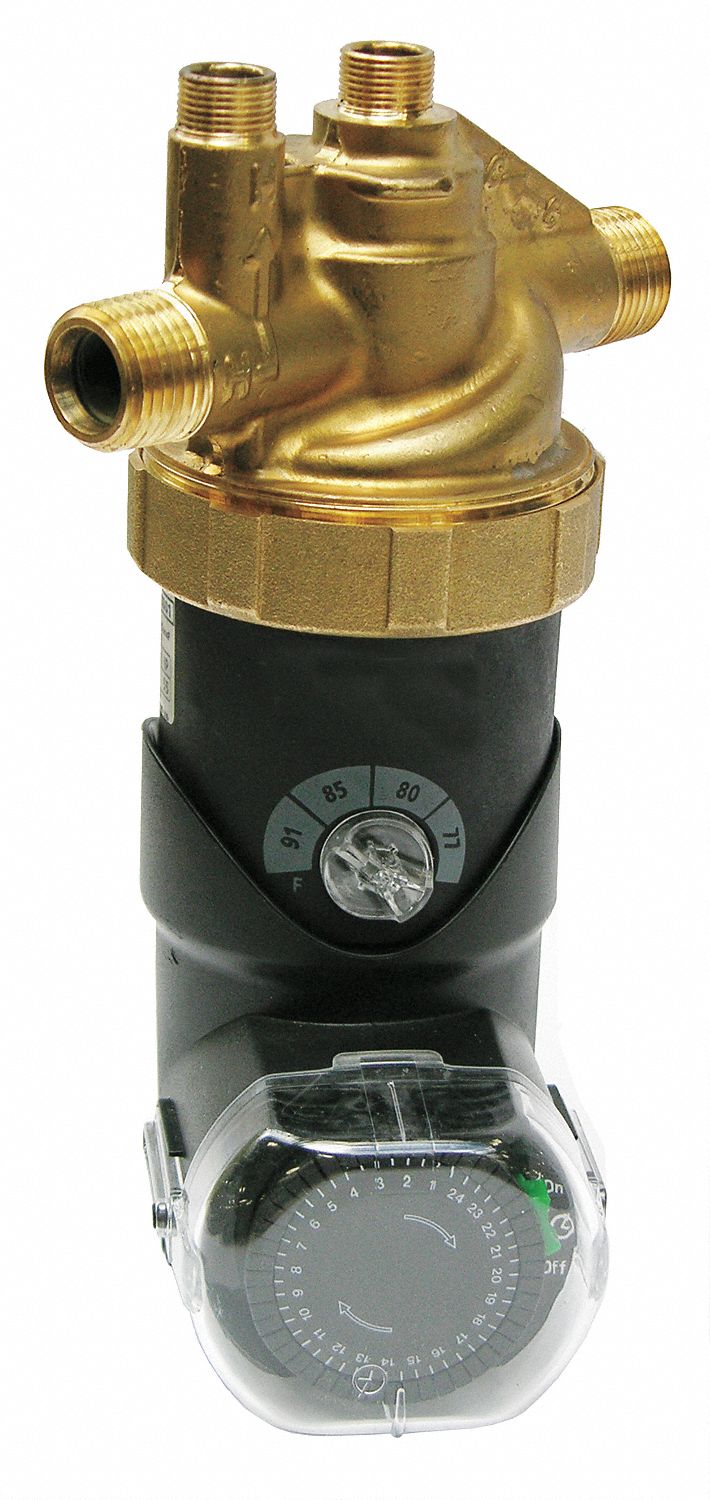

Circulator Pump, 115V, 14 Watts, 3450 RPM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circulator Pump
Type		Open Loop
Height (In.)		8
Style		Fixed Thermostat With Timer
Dia. (In.)		4-1/2
Speed		3450
HP		1/150
Voltage		115
Phase		1
Connection (In.)		1/2 NPT
Inlet/Outlet NPT (In.)		1/2
Amps		0.14
Inlet/Outlet		1/2"
Housing Material		Lead Free Brass Volute
Face to Face Dimension (In.)		4-13/32
Max. Temp. (F)		203
Max. Working Pressure (PSI)		145
RPM		3450
Impeller Material		Nylon/ PPO
Thermal Protection		Automatic Fixed
Pump Mount		Plastic Snap Ring
Construction Material		Lead Free Brass/ EPDM/Nylon/PPO/Carbon Ceramic/316SS or Plastic
Length (In.)		8
Width (In.)		4-1/2
Drive Type		AC Magnetically Driven Spherical Motor
Construction		Lead Free Brass
Watts		14
Pipe Size Return (In.)		1/2
Pipe Size Supply (In.)		1/2
Additional Features		Noise Level 30 Decibels
Manufacturers Warranty Length		2 Years
Includes		6' Power Cord
