KOHLER Gasoline Engine, 4 Cycle, 9.5 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Gasoline Engine, 4 Cycle, 9.5 HP, 4 Cycle, 9.5 HP, 3750 Engine RPM, Gross Torque 13.2 lbs ft, Horizontal Shaft Orientation, Fuel Tank Capacity (Qt.) 7.8, Recoil/Electric Starter Type, Electronic Ignition Type, Pre Start Only Low Oil Shut Down, Cast Iron Cylinder Liner Cylinders, Internal, Daul Ball, PTO and Flywheel, Yes Muffler, Quad-Clean 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner Type, Pleated Paper Encased w/Perforated Metal/Foam Pre-Cleaner, CCW-SE Rotation

Grainger Item #	11M963
Price (ea.)	$914.50
Brand	KOHLER
Mfr. Model #	PA-CH395-3031
UNSPSC #	26101503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	62.0
Availability	Item ships within 3 business days from supplier
Catalog Page No.	1365
Country of Origin (Country of Origin is subject to change.)	China

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

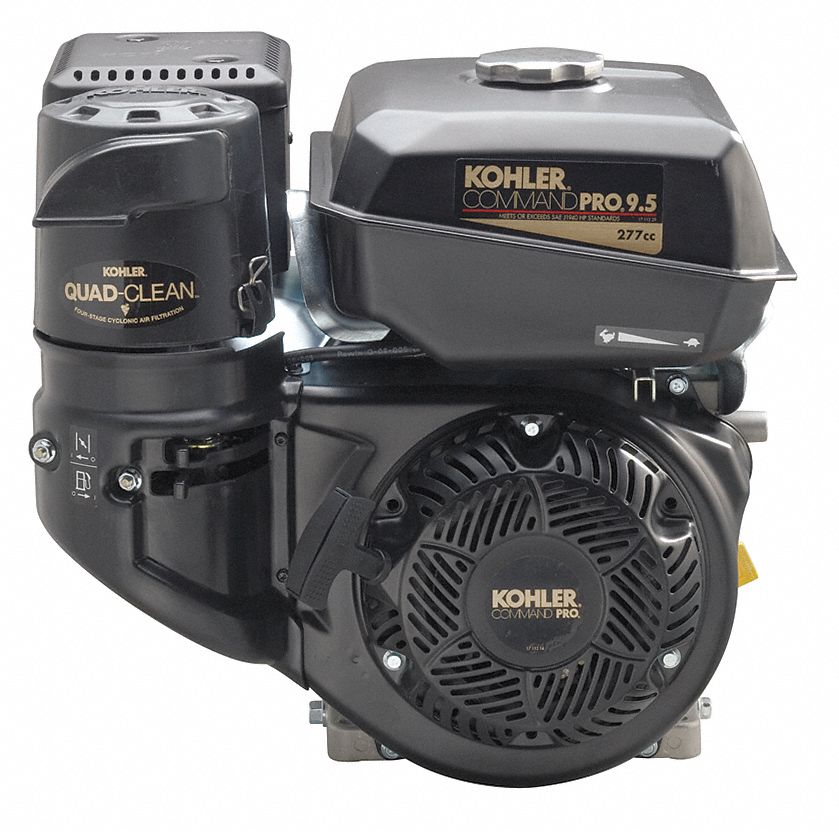

Enlarge Image

Item		Gasoline Engine, 4 Cycle, 9.5 HP
Type		4 Cycle
HP		9.5
Gross Torque		13.2 lb.-ft.
Engine RPM		3750
Shaft Orientation		Horizontal
Fuel Tank Capacity (Qt.)		7.8
Starter Type		Recoil/Electric
Ignition Type		Electronic
Low Oil Shut Down		Pre Start Only
Cylinders		Cast Iron Cylinder Liner
Gear Box		Internal
Bearings		Daul Ball, PTO and Flywheel
Muffler		Yes
Air Cleaner Type		Quad-Clean 4-Stage All-Season Heavy Duty Cyclonic
Air Filter		Pleated Paper Encased w/Perforated Metal/Foam Pre-Cleaner
Rotation		CCW-SE
Application		Utility, Log Splitter, Conveyor, Vibrator, Two Wheeled Tractor, Tiller
Overall Height (In.)		17.75
Overall Width (In.)		16.83
Overall Depth (In.)		15.86
Shaft Length (In.)		3.49
Shaft Height (In.)		5.26
Shaft Dia. (In.)		1.00
Shaft Configuration		Drilled and Tapped 1.1" Deep X 7/16-20 UNF
Shaft Key (In.)		0.25
Series		Command Pro
Maintenance Frequency		100Hour Oil Change, 200 Hour Replace Air Filter
Features		Metal Blower Housing, Balance Shaft, Metal Fuel Cap, Automatic Compression Release, 10amp Charging System
Design		Overhead Valve
Agency Compliance		EPA
Includes		Daul Oil Fill/Drain, Fuel Shut Off Valve, Engine Mounted Throttle&Choke, Remote Throttle Ready, Stellite Exhaust Valve, RFI Compliant, Variable Speed
