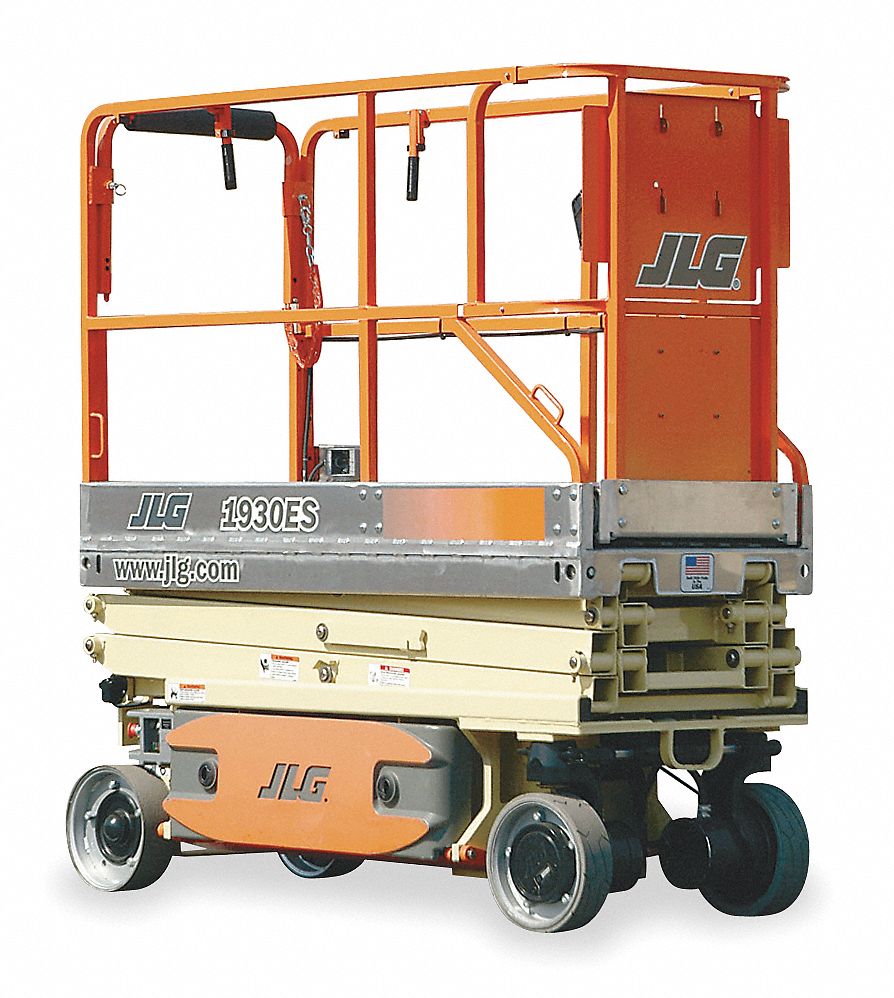

JLG Scissor Lift, Electric, Cap1000Lb

Electric Scissor Lift, 26 Ft Platform Ht Elevated, Platform Railing Ht 43.3 In, Stowed Ht 7 Ft 8 In, Platform Size 44 In W x 98.5 In L, Platform Extension 50 In L, Lift Length 6 Ft 1.5 In, Lift Width 46 In, Wheelbase 6 Ft 10 In, Ground Clearance 5 In, Tire Size 16 In x 5 In, Platform Capacity 1000 Lbs, Extension Capacity 250 Lbs, Max Drive Ht 26 Ft, Gross Weight 4770 Lbs, Drive Speed Lowered 2.5 MPH, Gradeability 25%, Outside Turning Radius 95.1 In, Batteries 4 x 6V 220 AMP HR
Grainger Item #4EU71
Price (ea.)$23,038.00
BrandJLG
Mfr. Model #2646ES
Ship Qty. 1
Sell Qty. (Will-Call) 1
Ship Weight (lbs.)4770.0
Availability Item ships within 51 business days from manufacturer
Catalog Page No.2123 catalog
Country of Origin
(Country of Origin is subject to change.)
USA
See Notes & Restrictions for important safety information.

  • Add to Order
  • Add to Personal List
  • Compare Alternate Items
Price shown may not reflect your price. Sign in or register.
ItemDrivable Electric Scissor Lift
Load Capacity (Lb.)1000
Overall Length (In.)98-1/2
Base Length (In.)98-1/2
Platform Length (In.)98-1/2
Retracted Length (In.)98-1/2
Extended Length (In.)148-1/2
Extended Width (In.)46
Base Width (In.)46
Overall Width (In.)46
Platform Width (In.)46
Retracted Width (In.)46
Height (Ft.)26
Overall Height (In.)92-3/4
Work Height (Ft.)32
Max. Drive Height26 ft. 0"
Platform Height26 ft. 0"
Stowed Height (In.)92-3/4
Handrail Height (In.)43.3
Wheel Base82
Tire Size16
DriveElectric
Drive Wheel16
Grade25%
Power SourceDC
Batteries Included4 x 6V, 220 Amp Hr
Gross Vehicle Weight4770
Ground Clearance5"
Max. Speed Elevated (MPH)0.5
Max. Speed Lowered (MPH)2.5
Platform Extension (In.)50
Platform Size (In.)44 x 98-1/2
SeriesES
StandardsOSHA and ANSI
IncludesProportional Controls, Drywall Gate, Battery Condition Indicator, 110VAC Receptacle in Platform, Fixed Rails, Automatic Traction Control (ATC), 20 Amp Automatic SCR Charger, Slide-Out Battery Trays, All Motion Alarm, Horn, Hourmeter, Manual Descent Pull C
