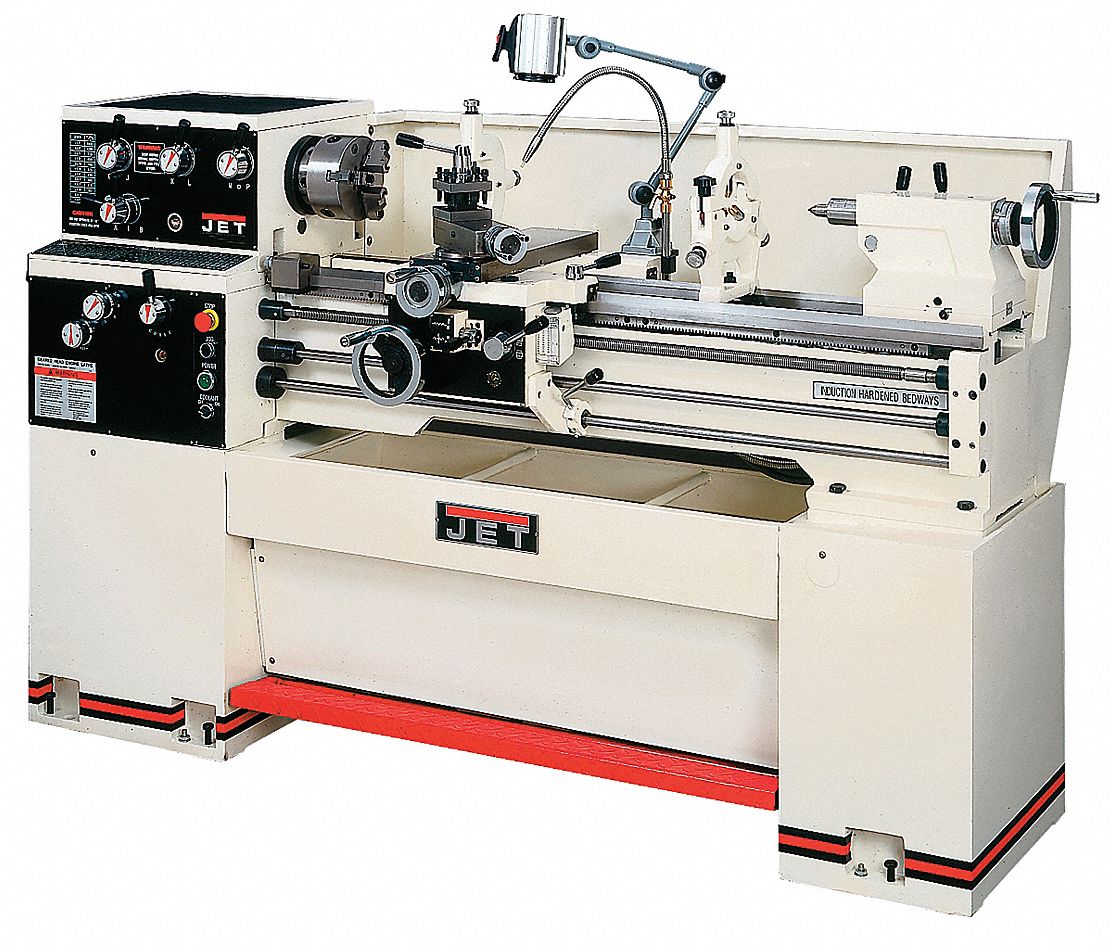

JET Geared Head Bench Lathe, W/Stand, 3 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Geared Head Engine Lathe, 3 HP, 1 Phase, 230 Voltage, 60 Hz, Swing Over Bed 13 In., Distance Between Centers 40 In., Swing Over Cross Slide 7 1/2 In., Swing In Gap 19 In., Gap Length 8 In., Spindle Taper 5 MT (3MT), Spindle Bore 1 1/2 In., Number of Spindle Speeds 12, Spindle Speed 40 to 1800 RPM, Bed Width 10 1/2 In., Cross Travel 6 3/8 In., Compound Travel 3 1/2 In., Carriage Travel 37 1/2 In., Tailstock Taper 3 MT, Overall Length 73 3/4 In, Overall Width 29 1/2 In, Overall Height 46 3/4 In

Grainger Item #	5CEZ6
Price (ea.)	$11,744.00
Brand	JET
Mfr. Model #	GH-1340W-1
UNSPSC #	23171606
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2274.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $1,999.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Geared Head Engine Lathe
Motor HP		3
Phase		1
Voltage		230
Hz		60
Swing Over Bed (In.)		13
Distance Between Centers (In.)		40
Swing Over Cross Slide (In.)		7-1/2
Swing In Gap (In.)		19
Gap Length (In.)		8
Spindle Taper		5 MT (3MT)
Spindle Bore (In.)		1-1/2
Number of Spindle Speeds		12
Spindle Speed (RPM)		40 to 1800
Bed Width (In.)		10-1/2
Cross Travel (In.)		6-3/8
Compound Travel (In.)		3-1/2
Carriage Travel (In.)		37-1/2
Tailstock Taper		3 MT
Tailstock Travel (In.)		4-3/4
Number of Threads (In.)		40
Thread Range (In.)		4 to 112
Number of Threads (mm)		22
Thread Range (mm)		0.45 to 7.5
Cross Feed Rates		0.0003" to 0.0103"
Longitudinal Feed Rates		0.0012" to 0.0294"
Coolant Tank Capacity		3 gal
Overall Length		73-3/4"
Overall Width		29-1/2"
Overall Height		46-3/4"
Features		Hardened And Ground Gears Featured In Headstock And Gearbox, Headstock Is Constantly Oiled During Operation, D1-4 Spindle Precision Ground For Accuracy And Supported By High Quality Tapered Roller Bearings
Includes		6" 3-jaw Direct Mount Chuck With Top Reversing Jaws, 8" 4-Jaw Chuck, Steady And Follow Rest, Splash Guard, Tool Box And Tools
