JET Floor Drill Press, 15 In, 1 HP, 115/230 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Floor Drill Press, Spline Drive, Swing 15 In, Motor HP 1, 1 Phase, Voltage 115/230, 16.0/8.0 Amps AC, Capacity Cast Iron 5/8 In, Capacity Steel (In) 1/2, Spindle Speeds Variable, 400-5000 RPM, Chuck Size 1/2 In, Spindle Taper MT2, Spindle Travel 6, Spindle to Table 41, Max Spindle To Base 47 1/2 In, Column Dia 3 In, Quill Dia 2 1/4 In, Table Work Surface 12 1/2 x 14 1/2 In, Table Slots 1/2W In, Overall Height 71 In, Overall Width 20 In, Overall Depth 30 In, Includes LED Readout

Grainger Item #	3WRN7
Price (ea.)	$3,084.00
Brand	JET
Mfr. Model #	J-A5816
UNSPSC #	27112703
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	393.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Taiwan

Qty.
Price shown may not reflect your price. Sign in or register.

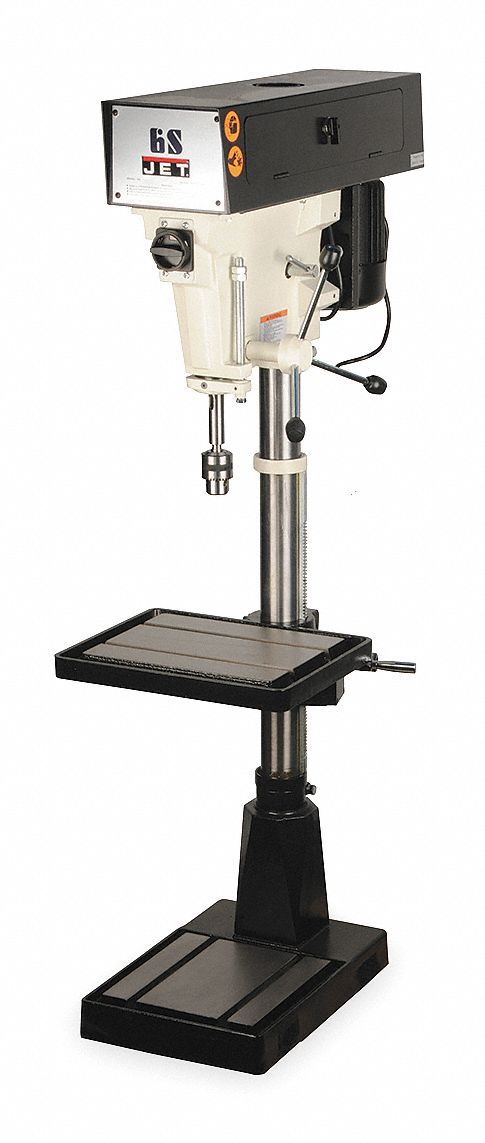

Floor Drill Press, 15 In, 1 HP, 115/230 V

Enlarge Image

Item		Floor Drill Press
Type		Spline Drive
Swing		15"
Motor HP		1
Phase		1
Voltage		115/230
Hz		60
Amps AC		16.0/8.0
Capacity Cast Iron		5/8"
Capacity Steel		1/2"
Spindle Speed		400 to 5000 rpm
Number of Speeds		Variable
Chuck Size		1/2"
Spindle Taper		MT2
Spindle Travel		6"
Spindle to Table		41"
Max. Spindle To Base		47-1/2"
Column Dia.		3"
Quill Dia.		2-1/4"
Table Work Surface		12-1/2 x 14-1/2"
Table Slots		1/2" W
Base Size		10-1/2 x 15"
Overall Height		71"
Overall Width		20"
Overall Depth		30"
Includes		LED Readout
