Pneumatics
>
Pneumatic Tools
>
Air Planishing Hammers

JET Planishing Hammer, 24 In Throat, 8.8 CFM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Planishing Hammer, 1800 to 4600 Blows per Minute, Max. Force 45 lb., 8.8 CFM @ Full Load, Capacity of Mild Steel 16 ga., Max. Workpiece Thickness 1/8 In., Throat Depth 24 In., Head Opening 2-1/2 In., Die Size 2 In. Radius, Air Inlet 1/4 In. NPT, Required Pressure 90 to 120 psi, Voltage 110 VAC, 1 Phase, 60 Hz, Max. dBA 104.3, Frame Tube Size 4 x 4 In., Wheel Size 3-1/4 In. Dia. X 1-1/4 In. W, Overall Length 36-1/4 In., Overall Width 14-3/5 In., Overall Height 67-3/4 In., Net Weight 220 lb.

Grainger Item #	18F219
Price (ea.)	$1,924.00
Brand	JET
Mfr. Model #	PH-24T
UNSPSC #	27131504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	250.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

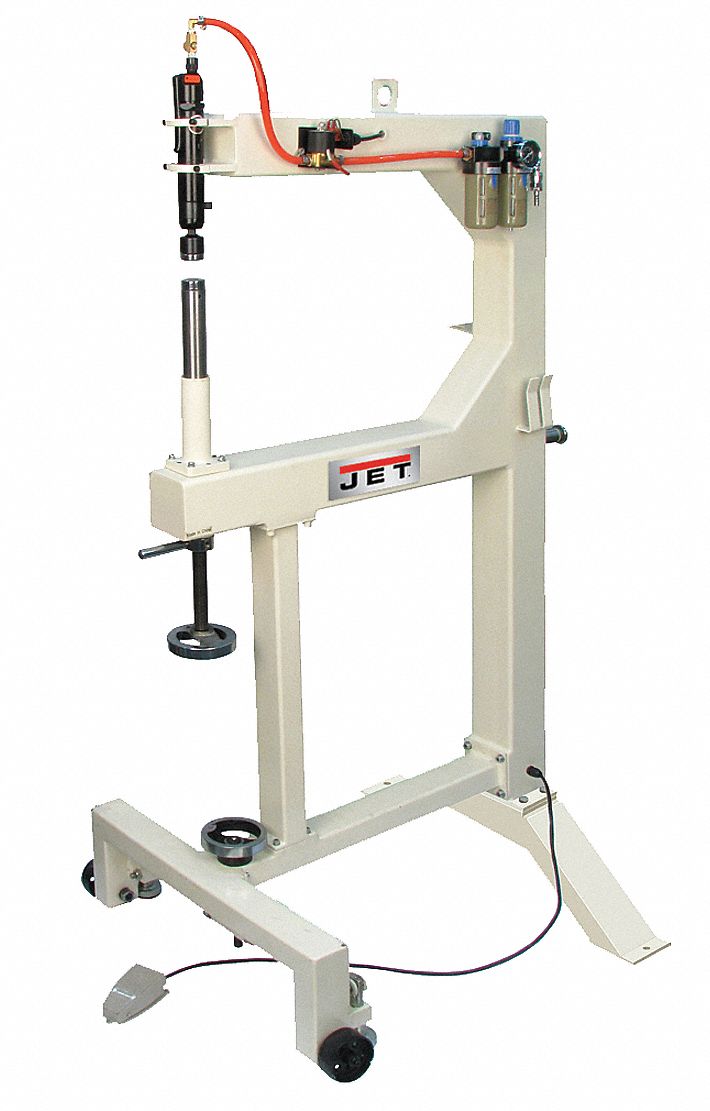

Planishing Hammer, 24 In Throat, 8.8 CFM

Enlarge Image

Item		Air Planishing Hammer
Blows per Minute		1800 to 4600
Max. Force		45 lb.
CFM @ Full Load		8.8
Capacity of Mild Steel		16 ga.
Max. Workpiece Thickness		1/8"
Throat Depth		24"
Head Opening		2-1/2"
Die Size		2" Radius
Air Inlet		1/4" NPT
Required Pressure		90 to 120 psi
Voltage		110 VAC
Phase		1
Hz		60
Max. dBA		104.3
Frame Tube Size		4 x 4"
Wheel Size		3-1/4" Dia. X 1-1/4" W
Overall Length		36-1/4"
Overall Width		14-3/5"
Overall Height		67-3/4"
Net Weight		220 lb.
Includes		Foot Pedal
