JABSCO Rotary Gear Pump, 12VDC, 7 Amps AC, 3.8 GPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Rotary Gear Pump With Motor, Close Coupled, Voltage 12VDC, 7 Amps AC, Port Size 1/2 In., Suction Lift 3 Ft., GPM @ Freeflow 3.8, GPM Max. 3.8, Max. Pressure (PSI) 45

Grainger Item #	3PEP1
Price (ea.)	$263.50
Brand	JABSCO
Mfr. Model #	23220-2012
UNSPSC #	40151551
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.8
Availability	Typically in Stock
Catalog Page No.	4146
Country of Origin (Country of Origin is subject to change.)	Italy

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

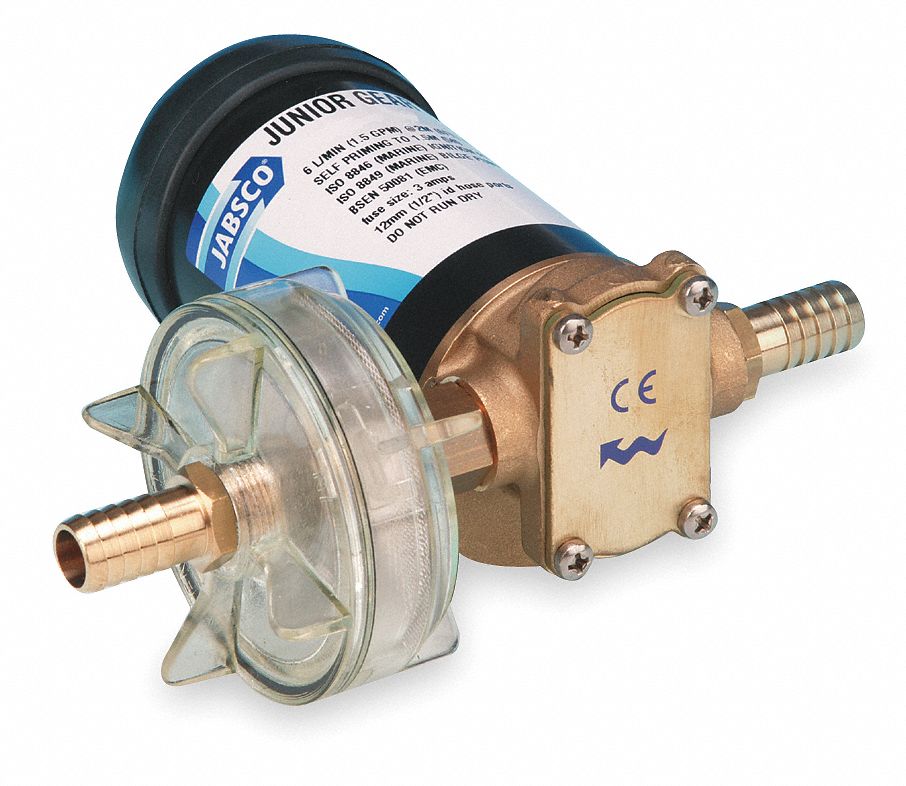

Rotary Gear Pump, 12VDC, 7 Amps AC, 3.8 GPM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Rotary Gear Pump With Motor
Type		Close Coupled
Voltage		12VDC
Amps		7
Port Size (In.)		1/2
Suction Lift (Ft.)		3
GPM Max.		3.8
Max. Pressure (PSI)		45
Body Material		Bronze
Shaft Material		Stainless Steel
Min. Temp. Rating (Deg. F)		40
Max. Temp. (F)		210
Gear Material		Brass
Length (In.)		5-5/16
Width (In.)		6-1/2
Height (In.)		4-1/4
GPM @ Freeflow		3.8
Max. Viscosity (SSU)		800
Manufacturers Warranty Length		1 Year
Includes		Strainer
