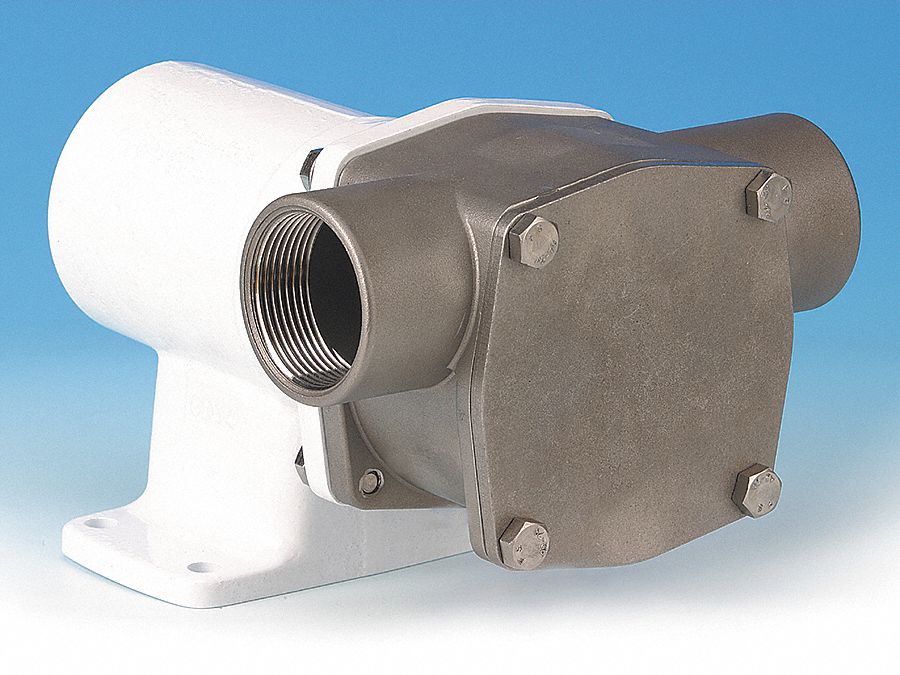

JABSCO Pump, Pedestal, 1 1/2 In (F)NPT

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Sanitary Pedestal, Flexible Impeller, Inlet/Outlet (In.) 1 1/2 (F)NPT, Neoprene Impeller, Max. Head 30 Ft., Max. Pressure 15 PSI, Max. Suction Lift (Ft.) Dry 8 - 10 / Wet 18 - 22, 500 Max. SSU @ 1725 RPM, Body Material Stainless Steel

Grainger Item #	3PER2
Price (ea.)	$3,934.00
Brand	JABSCO
Mfr. Model #	30530-0001
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	23.2
Availability	Typically in Stock
Catalog Page No.	4140
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Sanitary Pedestal
HP		4
Amps AC		Low Current Draw 20-50mA
Duty		Continuous
Inlet/Outlet (In.)		1-1/2 (F)NPT
Body Material		Stainless Steel
Max. Head (Ft.)		30
Max. Suction Lift (Ft.)		Dry 8 - 10 / Wet 18 - 22
Max. Liquid Temp. (F)		176
Impeller		Neoprene
Max. Pressure (PSI)		15
Shaft Dia. (In.)		1-1/8
Self-Priming		Yes
RPM		170 - 3000
Size Height O.C. (In.)		4-7/16
Mounting Holes O.C. (In.)		1 31/32 X 3 15/16
Min. Start Torque (In.-Lbs.)		Fwd 12.9 / Rev 42.6
Seals		Carbon, Ceramic
Bearings		Stainless Steel
Shaft Material		Stainless Steel
Application		Suitable for Non Lubricating Liquids
Characteristics		Can be Direct Coupled or Belt Driven
GPM of Water @ 10 Ft. of Head @ 1725 RPM		50
GPM of Water @ 30 Ft. of Head @ 1725 RPM		45
Max. SSU @ 1725 RPM		2500
Length (In.)		11-1/2
Width (In.)		5-3/4
Height (In.)		6-7/8
