Pumps
>
Flexible Impeller Pumps
>
Flexible Impeller Pumps

JABSCO Pump, Flexible Impeller, 3/4 HP, 115V, 1 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Flexible Impeller, 3/4 HP, Voltage 115, Amps 8.64, Inlet/Outlet (In.) 1 ACME, NEMA Motor Frame 56C, GPM of Water @ 10 Ft. of Head 9.5, Max. Head 30 Ft., Max. Pressure 15 PSI, Suction Lift (Ft.) Dry 8 - 10 / Wet 18 - 22, 500 Max. SSU @ 1725 RPM

Grainger Item #	3PEP5
Price (ea.)	$4,205.00
Brand	JABSCO
Mfr. Model #	30550-4005
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	45.1
Availability	Typically in Stock
Catalog Page No.	4139
Country of Origin (Country of Origin is subject to change.)	United Kingdom

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

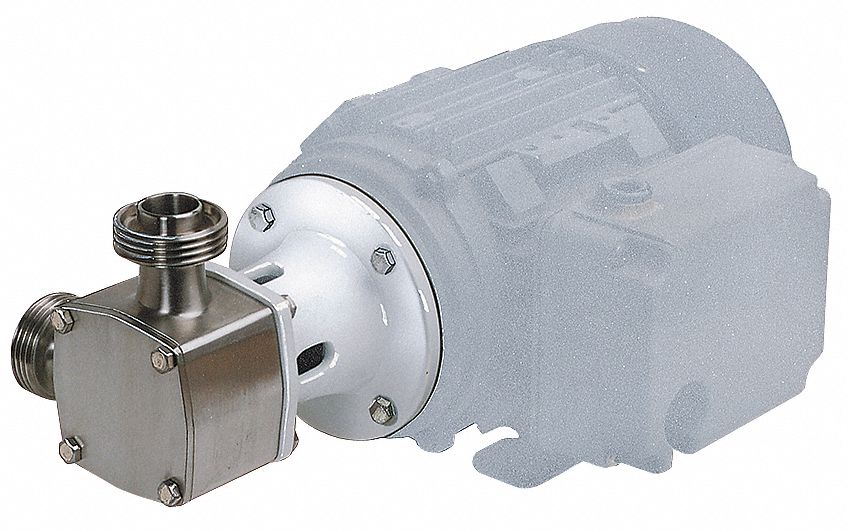

Pump, Flexible Impeller, 3/4 HP, 115V, 1 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Flexible Impeller
HP		3/4
Voltage		115
Amps		8.64
Inlet/Outlet (In.)		1 ACME
NEMA Motor Frame		56C
Impeller Material		Neoprene
Length (In.)		16
Width (In.)		8-7/8
Height (In.)		8-11/16
GPM of Water @ 10 Ft. of Head		9.5
GPM of Water @ 30 Ft. of Head		8
Max. Head (Ft.)		30
Max. Pressure (PSI)		15
Suction Lift (Ft.)		Dry 8 - 10 / Wet 18 - 22
Max. SSU @ 1725 RPM		500
GPM of Water @ 0 Ft. of Head		10.5
Prime in Feet		8-10 Dry Prime
Housing Material		Stainless Steel
Shaft Material		Stainless Steel
Seal		Carbon, Ceramic
Max. Viscosity		500
RPM		1750
Self-Priming		Yes
Motor Type		Capacitor Start
Temp. Range (F)		158
Application		Suitable for Non Lubricating Liquids
Function		Can be Direct Coupled or Belt Driven
Characteristics		Can be Direct Coupled or Belt Driven
