Pumps
>
Flexible Impeller Pumps
>
Flexible Impeller Pumps

230V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Flexible Impeller, 1-1/2 HP, Voltage 115/230, Amps 9.72/4.86, Inlet/Outlet (In.) 1 (F)NPT, NEMA Motor Frame H145TC, Impeller Material Neoprene, Length (In.) 18-1/4, Width (In.) 8-7/8, Height (In.) 8-7/16, GPM of Water @ 10 Ft. of Head 21, GPM of Water @ 30 Ft. of Head 19, Max. Head (Ft.) 30, Max. Pressure (PSI) 15, Suction Lift (Ft.) 8-10 Dry, 18-22 Wet, Max. SSU @ 1725 RPM 2500, GPM of Water @ 0 Ft. of Head 22, Prime in Feet 8-10 Dry Prime, Housing Material 316 Stainless Steel

Grainger Item #	3PEP4
Price (ea.)	$3,372.00
Brand	JABSCO
Mfr. Model #	30520-4001
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	50.2
Availability	Typically in Stock
Catalog Page No.	4140
Country of Origin (Country of Origin is subject to change.)	United Kingdom

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

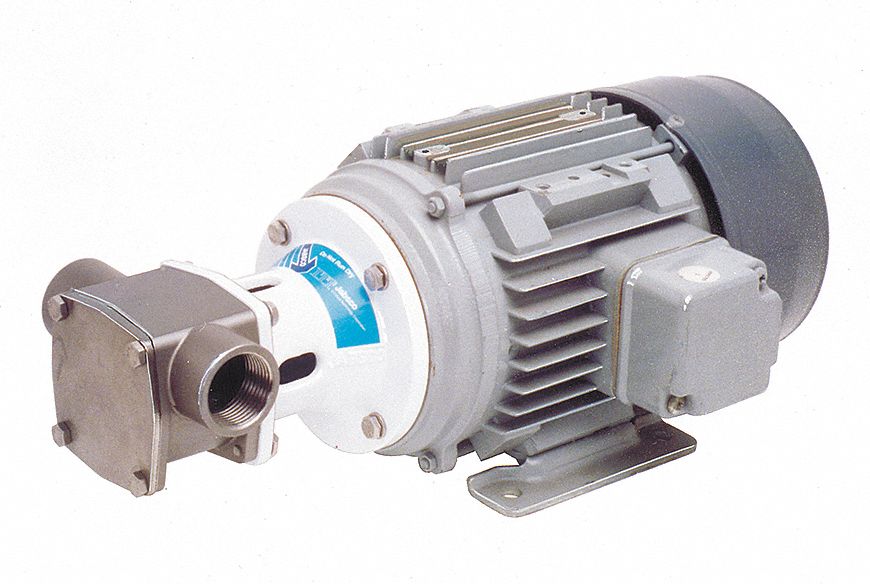

Pump, Flexible Impeller, 1 1/2 HP, 115/230V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Flexible Impeller
HP		1-1/2
Voltage		115/230
Amps		9.72/4.86
Inlet/Outlet (In.)		1 (F)NPT
NEMA Motor Frame		H145TC
Impeller Material		Neoprene
Length (In.)		18-1/4
Width (In.)		8-7/8
Height (In.)		8-7/16
GPM of Water @ 10 Ft. of Head		21
GPM of Water @ 30 Ft. of Head		19
Max. Head (Ft.)		30
Max. Pressure (PSI)		15
Suction Lift (Ft.)		8-10 Dry, 18-22 Wet
Max. SSU @ 1725 RPM		2500
GPM of Water @ 0 Ft. of Head		22
Prime in Feet		8-10 Dry Prime
Housing Material		316 Stainless Steel
Shaft Material		Stainless Steel
Seal		Carbon, Ceramic
Max. Viscosity		500
RPM		1750
Self-Priming		Yes
Motor Type		Capacitor Start
Temp. Range (F)		176
Application		Suitable for Non Lubricating Liquids
Function		Can be Direct Coupled or Belt Driven
Characteristics		Can be Direct Coupled or Belt Driven
