Pumps
>
Flexible Impeller Pumps
>
Flexible Impeller Pedestal Pumps

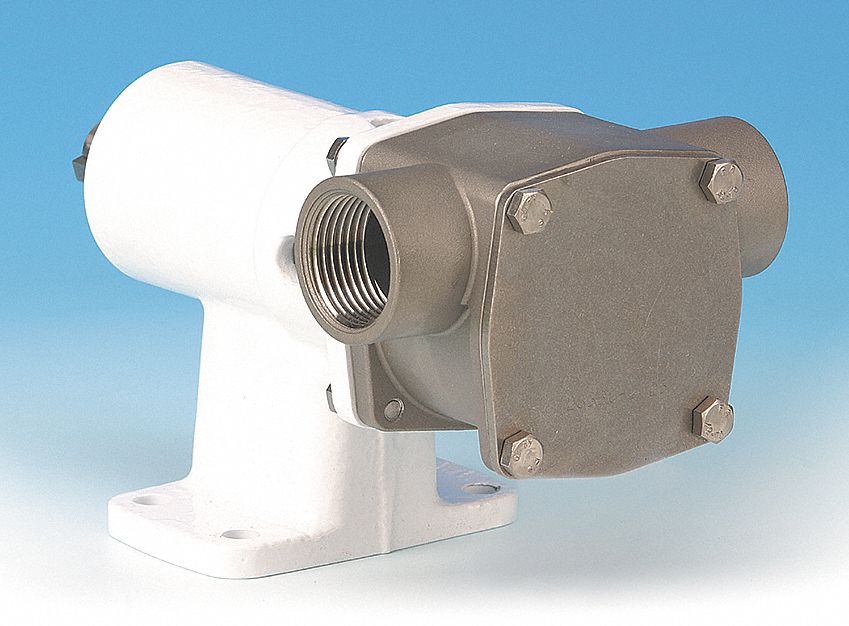

JABSCO Pump, Pedestal, 1 In (F)NPT

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Sanitary Pedestal, 1 HP, Continuous Duty, Inlet/Outlet (In.) 1 (F)NPT, Body Material Stainless Steel, Neoprene Impeller, Self-Priming Yes, 170 - 3000 RPM, Carbon, Ceramic Seals, Stainless Steel Bearings, Shaft Material Stainless Steel, Application Suitable for Non Lubricating Liquids, Characteristics Can be Direct Coupled or Belt Driven, GPM of Water @ 10 Ft. of Head @ 1725 RPM 21, GPM of Water @ 30 Ft. of Head @ 1725 RPM 19, Max. SSU @ 1725 RPM 2500

Grainger Item #	3PEP3
Price (ea.)	$2,933.00
Brand	JABSCO
Mfr. Model #	30520-0001
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	8.25
Availability	Typically in Stock
Catalog Page No.	4140
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Sanitary Pedestal
HP		1
Duty		Continuous
Inlet/Outlet (In.)		1 (F)NPT
Body Material		Stainless Steel
Max. Head (Ft.)		30
Max. Suction Lift (Ft.)		Dry 8 - 10 / Wet 18 - 22
Max. Liquid Temp. (F)		176
Impeller		Neoprene
Max. Pressure (PSI)		15
Shaft Dia. (In.)		5/8
Self-Priming		Yes
RPM		170 - 3000
Size Height O.C. (In.)		3-3/4
Mounting Holes O.C. (In.)		1 1/2 X 3
Min. Start Torque (In.-Lbs.)		Fwd 4.7 / Rev 11.1
Seals		Carbon, Ceramic
Bearings		Stainless Steel
Shaft Material		Stainless Steel
Application		Suitable for Non Lubricating Liquids
Characteristics		Can be Direct Coupled or Belt Driven
GPM of Water @ 10 Ft. of Head @ 1725 RPM		21
GPM of Water @ 30 Ft. of Head @ 1725 RPM		19
Max. SSU @ 1725 RPM		2500
Length (In.)		9-1/4
Width (In.)		4-3/4
Height (In.)		4-3/4
