HVAC and Refrigeration
>
Blowers
>
OEM Specialty Blowers

JABSCO Blower, Flange Mount

| Write a Review
| Read all Reviews
| Read all Ask & Answer

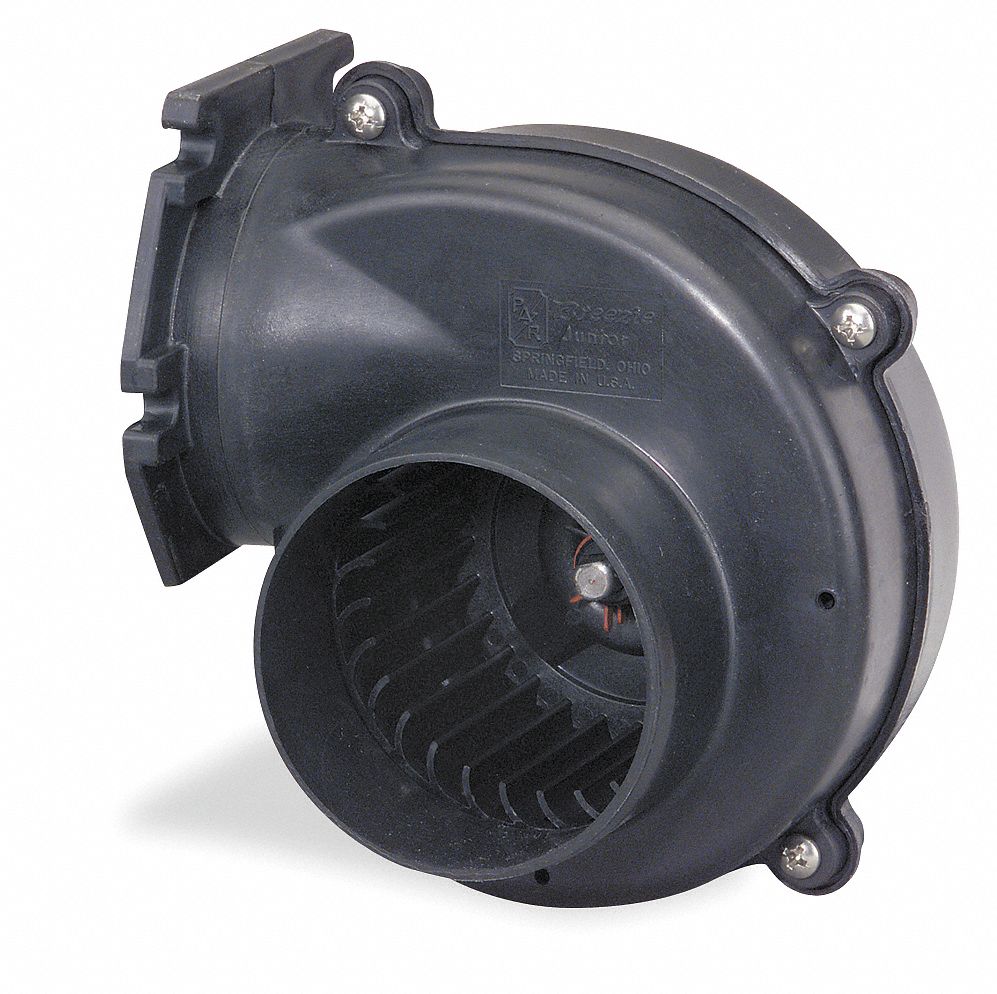

Flange Mount Blower, Air Flow @ 0.000 Inch Static Pressure 105 CFM, Speed 4200 , Voltage Rating 12 VDC, Power Rating 57 Watts, Current Rating 4.30 Amps, Wheel Diameter 3 1/4 Inches, Wheel Width 1 15/16 Inches, Inlet Diameter 3 Inches, Load Length 13 Inches, Motor Mount Rigid, Plastic

Grainger Item #	4C814
Price (ea.)	$105.50
Brand	JABSCO
Mfr. Model #	35115-7020
UNSPSC #	40101601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.7
Availability	Typically in Stock
Catalog Page No.	4510
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		DC Blower
Type		Flange Mount
Wheel Dia. (In.)		3-1/4
Wheel Width (In.)		1-15/16
CFM @ 0.000-In. SP		105
CFM @ 0.200-In. SP		94
CFM @ 0.400-In. SP		86
CFM @ 0.600-In. SP		78
CFM @ 0.800-In. SP		69
CFM @ 1.000-In. SP		59
CFM @ 1.200-In. SP		49
CFM @ 1.600-In. SP		22
Voltage		12 DC
Hz		60
Phase		Single
Full Load Amps		4.4
RPM		4200
Bearing Type		Sleeve
Motor Type		DC
Motor Enclosure		Open Dripproof
Thermal Protection		None
Lead Length (In.)		13
Conduit Box		No
Ambient Temp. (Deg. F)		130
Max. Inlet Temp. (Deg. F)		104
Inlet Dia. (In.)		3
Outlet Dia. (In.)		2-3/4
Overall Height (In.)		5-1/2
Overall Width (In.)		6-3/4
Overall Depth (In.)		4-3/4
Wheel Type		Forward Curve
Drive Type		Direct
Mounting		Shaft Horizontal
Housing Material		Reinforced Plastic
Agency Compliance		NMMA
