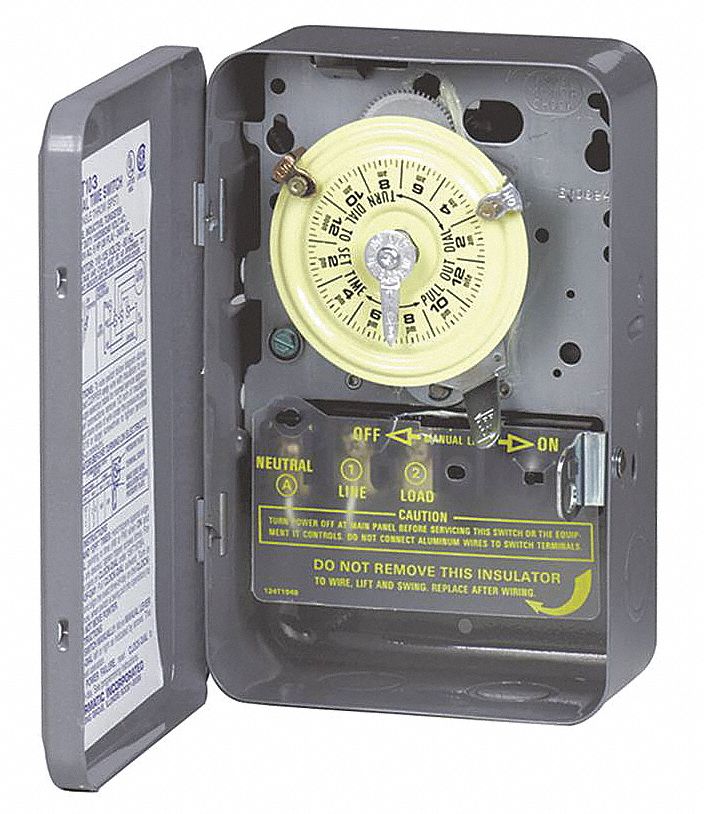

INTERMATIC Timer, 24Hr, SPST, 208-277V, 40A, NEMA1

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electromechanical Timer, 24 Hour, Number of Poles 1, Contact Form SPST, Voltage 208-277, Amps 40, Contact HP @ 120V 2, Contact HP @ 240V 5, Finish Gray, NEMA Rating 1, Min. Time Setting 1 Hr., Max. Time Setting 24 Hrs., Max. On/Off Cycles 12, Length 7 3/4 In., Width 5 In., Depth 3 In., Number of Trippers Included 2, Operating Temp. -40 to 130, Mount Keyhole, Standards C22.2--177, LR3730, UL917

Grainger Item #	4XGW7
Price (ea.)	$122.50
Brand	INTERMATIC
Mfr. Model #	T102
UNSPSC #	39121523
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.6
Availability	Typically in Stock
Catalog Page No.	446
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Electromechanical Timer
Type		24-Hour
Number of Poles		1
Contact Form		SPST-NO
Voltage		208-277
Amps		40
Contact HP @ 120V		2
Contact HP @ 240V		5
Day Skipper		No
Enclosure Type		Steel Indoor
Finish		Gray
NEMA Rating		1
Min. Time Setting		1 hr.
Max. Time Setting		24 hr.
Max. On/Off Cycles		12
Length (In.)		7.75
Width (In.)		5
Depth (In.)		3
Number of Trippers Included		2
Extra Trippers		2E054
Operating Temp.		-40 to 130
Mount		Keyhole
Standards		C22.2--177, LR3730, UL917
