HVAC and Refrigeration
>
HVAC Controls
>
Energy Efficiency and Economizing Controls

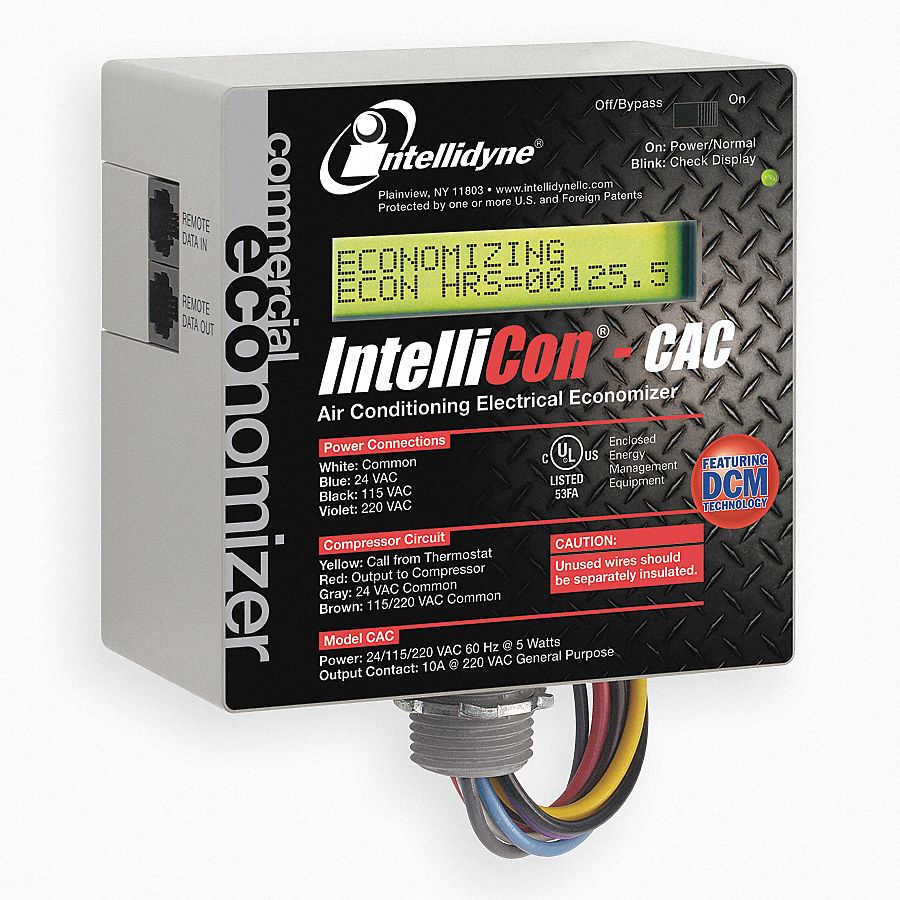

INTELLICON Eff, Control, A/C Sys Larger Than 5 Ton

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Energy Efficiency And Economizing Control, Commercial Air Conditioning Electrical Consumption Economizer, Application Packaged, Split, Roof Top, Air Conditioning Larger Than 5 Ton, Voltage 24/120/208-220, Control Circuit 24 Vac/Dc, 115/220 Vac, Contact Rating 10 Amps At 220V, Height 4 In, Width 4 In, Depth 2 In, 1 Line Backlit Display, Includes Mounting Bracket 4Hvk8 (4010)

Grainger Item #	4HVJ9
Price (ea.)	$93.50
Brand	INTELLICON
Mfr. Model #	2400
UNSPSC #	39121510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.44
Availability	Clearance - limited quantity available
Catalog Page No.	4564
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
|
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Energy Efficiency And Economizing Control
Type		Commercial Air Conditioning Electrical Consumption Economizer
Application		Packaged, Split, Roof Top, Air Conditioning Larger than 5 ton
Voltage		24/120/208-220
Control Circuit		24 Vac/Dc, 115/220 Vac
Contact Rating		10 Amps At 220V
Contact		General Purpose
Operating Temp. Range (F)		32 To 120 Deg F
Height (In.)		4
Width (In.)		4
Depth (In.)		2
Mounting		Any Position Using The Molded Male 1/2" Conduit Fitting
Display		1 Line Backlit
Characteristics		Illuminated LCD Display Shows Run Time Hours, Economizing Hours, Operating Modes And System Diagnostics, Once Installed No Programming Or Follow-Up Visits Required, Microprocessor Based Control, Fail-Safe Operation, Will Not Void The Compressor Manufacturers Warranty
Function		Reduces Maintenance And Extends Compressor Life, Determines The Cooling Demand And Thermal Characteristics Of The Entire Air Conditioning System By Analyzing The Compressor Cycle Pattern, And Dynamically Modifies The Pattern To Provide The Required Amount Of Cooling In The Most Efficient Manner. This Is Accomplished In Real Time By Delaying The Start Of The Next Compressor On Cycle By An Amount Determined By The Cooling Demand Analysis. These New Patterns Also Result In Less Frequent And More Efficient Compressor Cycles, Control Electrically Augments The Existing Controls, And Will Not Cause The Compressor To Run Unless The Existing Thermostat Is Calling For It To Do So, Improves The Electrical Efficiency Of Air Conditioning Systems, By Supplementing The Antiquated On/Off Action Of The Thermostat, Even A Programmable One, With The Analysis And Control Capabilities Of A Computer
Includes		Mounting Bracket 4HVK8 (4010)
Special Information		No Relays, Transformers Or Maintenance Required, Programming Not Normally Required, But Features And Parameters Are Easily Changed. No Programming Tools Necessary.
Agency Compliance		UL U.S. And Canada, Ce
Manufacturers Warranty Length		15 Years
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
