Energy Efficiency And Economizing Control, Light Commercial Steam Heating System Fuel Economizer, Application Systems With Ratings Up To 2.5 Million Btu, 2 to 25 PSI Or 24 to145 PSI, Voltage 24/120/208-220, Control Circuit 24 Vac/Dc, 115/220 Vac, Contact Rating 10 Amps At 220V, Height 4 In, Width 4 In, Depth 2 1/2 In, 2 Line Backlit Display, Requires 4Hvl1 (4005) Or 4Hvl2 (4006) And 1 - 5Wl08 Or 5Wl09 Or 5Wl28 Or 5Wl29

Grainger Item #	4HVJ4
Price (ea.)	$760.00
Brand	INTELLICON
Mfr. Model #	1120
UNSPSC #	39121510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.37
Availability	Clearance - limited quantity available
Catalog Page No.	4564
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
|
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

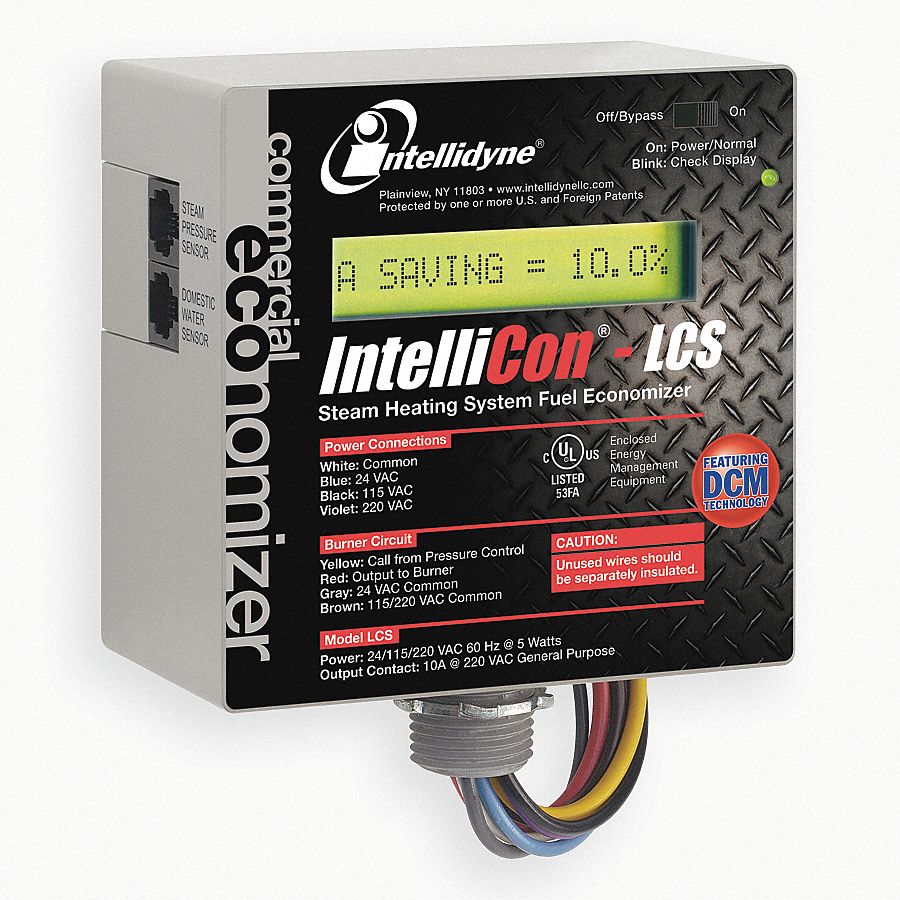

Eff, Economizing Control, Comm Steam Sys

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Energy Efficiency And Economizing Control
Type		Light Commercial Steam Heating System Fuel Economizer
Application		Systems with Ratings up to 2.5 Million Btu, 2 to 25 psi, or 25 to 145 psi
Voltage		24/120/208-220
Control Circuit		24 Vac/Dc, 115/220 Vac
Contact Rating		10 Amps At 220V
Contact		General Purpose
Operating Temp. Range (F)		32 To 120 Deg F
Operating PSI Range		2 to 25 or 25 to 145
Height (In.)		4
Width (In.)		4
Depth (In.)		2-1/2
Mounting		Any Position Using The Molded Male 1/2" Conduit Fitting
Display		2 Line Backlit
Characteristics		Uses Intelligent Dynamic Cycle Management (Dcm) Technology To Save Energy By Adjusting The Burner Run Pattern To Match The Systems Heat Load, Simple Programming Via Sensor
Function		Increased Savings Without Replacing Or Upgrading Costly System Components, Determines The Heat Load By Using An Easily Installed Pressure Sensor That Monitors The Boilers Steam-Pressure And The Rate That This Pressure Is Changing
Requires		4HVL1 (4005) or 4HVL2 (4006), and (1) 5WL08 or 5WL09 or 5WL28 or 5WL29
Special Information		No Relays, Transformers Or Maintenance Required, Programming Not Normally Required, But Features And Parameters Are Easily Changed. No Programming Tools Necessary.
Agency Compliance		UL U.S. And Canada, Ce
Manufacturers Warranty Length		15 Years
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
