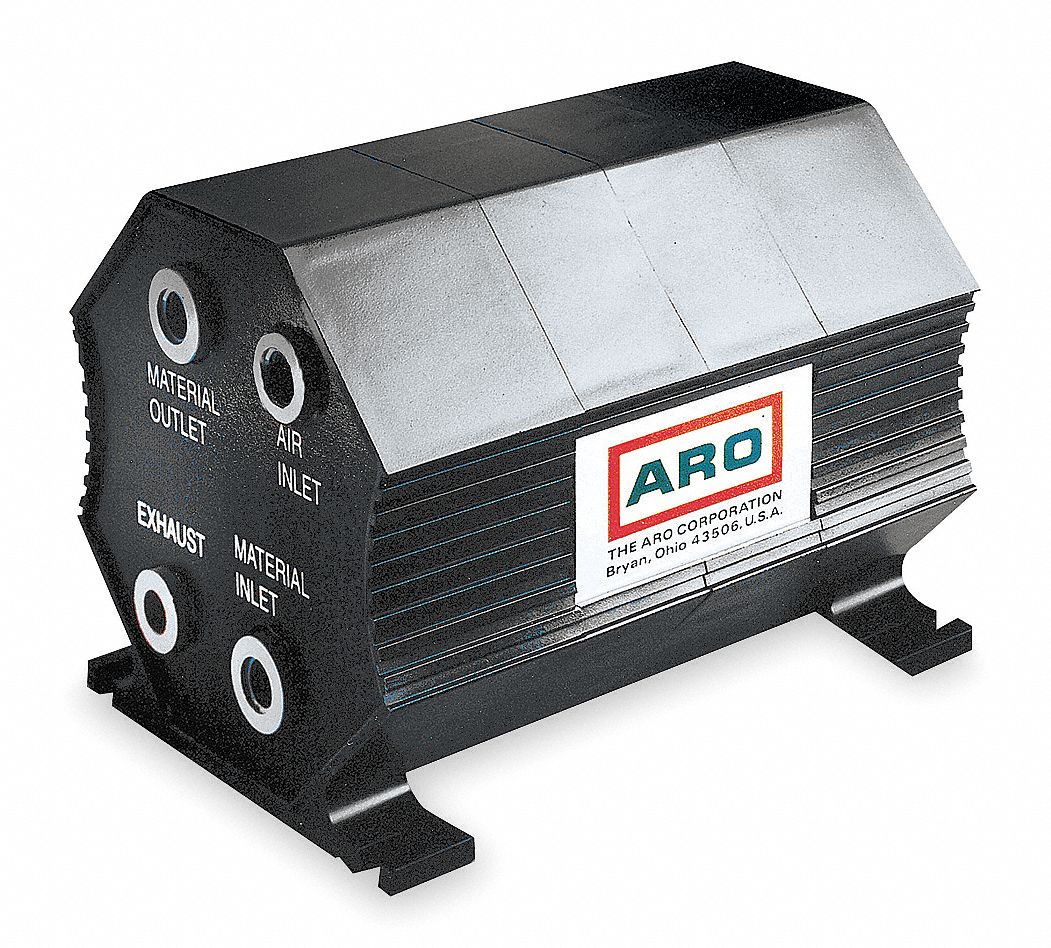

Air Operated Double Diaphragm Pump, Inlet/Outlet 3/8 In. / 1/4 In., Flow 3 gpm, Max. Flow GPM 4.5, Max. Flow 4.5 cfm, Max. Operating PSI 100, Body Material Polypropylene, Diaphragm Material Santoprene(r), Ball Material PTFE, Check Seat Material Polypropylene, Air Inlet (F)NPT 1/4 In., Manifold Connection Single, Max. Dia. Solids Clear Liquid, Max. Temp. 150 Degrees F, Self-Priming Dry 10 ft., Self-Priming Wet 15 ft.
  • Grainger Item #4P970
    Price (ea.)$282.75
    BrandINGERSOLL-RAND/ARO
    Mfr. Model #PD02P-APS-PTA
    UNSPSC #40151549
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)4.6
    Availability Typically in Stock
    Catalog Page No.4135
    Country of Origin
    (Country of Origin is subject to change.)
    China
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemAir Operated Double Diaphragm Pump
Inlet/Outlet3/8" / 1/4"
Flow3 gpm
Max. Flow GPM4.5
Max. Flow4.5 cfm
Max. Operating PSI100
Body MaterialPolypropylene
Diaphragm MaterialSantoprene(R)
Ball MaterialPTFE
Check Seat MaterialPolypropylene
Air Inlet (F)NPT1/4"
Manifold ConnectionSingle
Max. Dia. SolidsClear Liquid
Max. Temp.150 Degrees F
Self-Priming Dry10 ft.
Self-Priming Wet15 ft.
