Pumps
>
Diaphragm Pumps
>
Air Operated Diaphragm Pumps

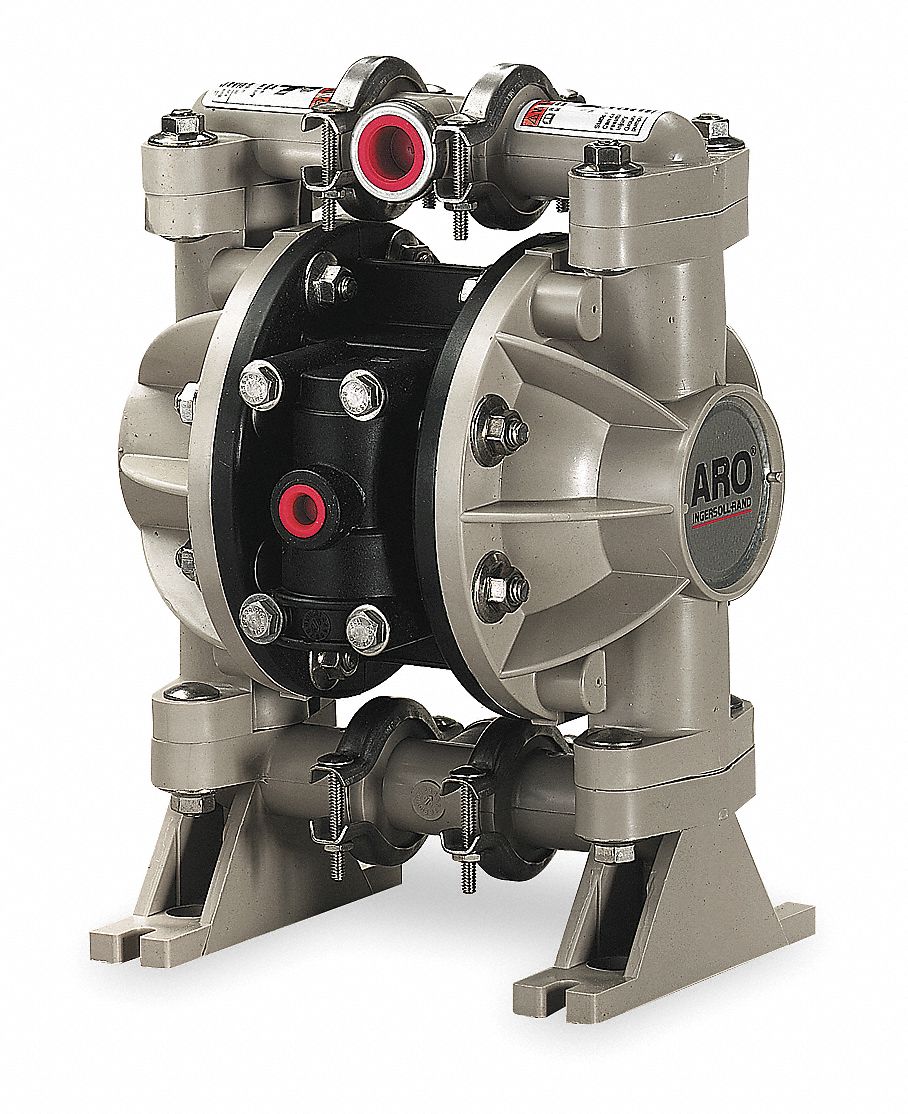

INGERSOLL-RAND/ARO Diaphragm Pump, Urethane Diaphragm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Operated Diaphragm Pump, Non Metallic Double Diaphragm, Inlet/Outlet 1/2 In, Flow 10 GPM, Max Flow GPM 13, Max Flow 19 CFM, Max Operating PSI 100, Body Material Polypropylene, Diaphragm Material Urethane, Ball Material Urethane, Check Seat Material Polypropylene, Air Inlet 1/4 In, Manifold Connection Three, Max Dia Solids 3/32 In, Max Temp 150 F, Self-Priming Dry 10 Ft, Self-Priming Wet 15 Ft

Grainger Item #	2CAP4
Price (ea.)	$654.50
Brand	INGERSOLL-RAND/ARO
Mfr. Model #	666053-388
UNSPSC #	40151548
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	9.0
Availability	Typically in Stock
Catalog Page No.	4135
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Operated Double Diaphragm Pump
Inlet/Outlet		1/2"
Flow		10 gpm
Max. Flow GPM		13
Max. Flow		19 cfm
Max. Operating PSI		100
Body Material		Polypropylene
Diaphragm Material		Urethane
Ball Material		Urethane
Check Seat Material		Polypropylene
Air Inlet (F)NPT		1/4"
Manifold Connection		Single
Max. Dia. Solids		3/32"
Max. Temp.		150 Degrees F
Self-Priming Dry		10 ft.
Self-Priming Wet		15 ft.
Manufacturers Warranty Length		1 Year

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

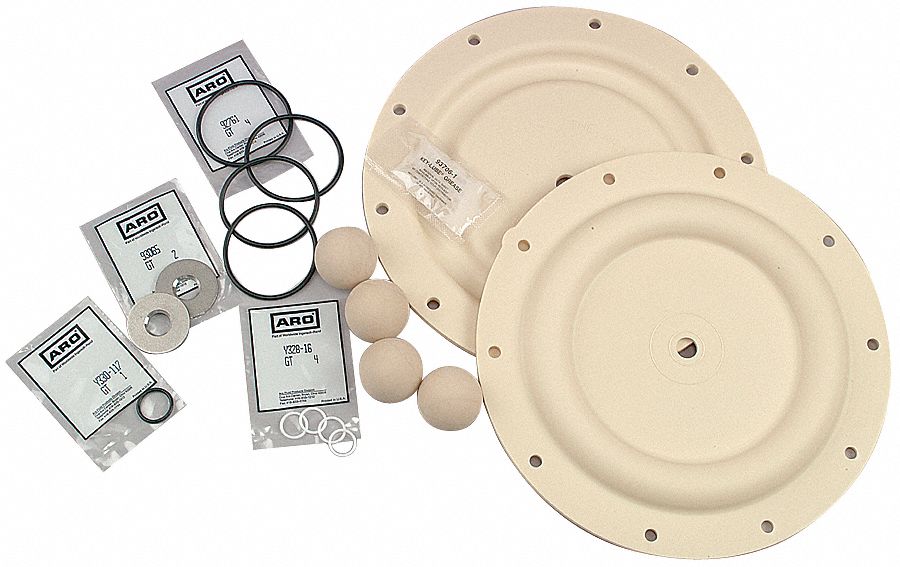

Pump Repair Kit

Brand:

INGERSOLL-RAND/ARO

Grainger Item #:

4RN01

Price (ea.):

$97.05

Item #	Description	Brand Mfr. Model #	Availability	Price
4RN01 Parts Info	Pump Repair Kit >More Details... Country of Origin: USA	INGERSOLL-RAND/ARO 637140-88	Typically in Stock	$97.05
Be the First to Write a Review



4RN03 Parts Info	Air Section Repair Kit >More Details... Country of Origin: USA	INGERSOLL-RAND/ARO 637141	Typically in Stock	$77.30
Be the First to Write a Review



2TU90	Replacement Diaphragm, Urethane >More Details... Country of Origin: USA	INGERSOLL-RAND/ARO 93112	Typically in Stock	$34.95
Be the First to Write a Review

	Item #	Description	Brand Mfr. Model #	Availability	Price
	2CAP6	Diaphragm Pump, PTFE Diaphragm >More Details... Country of Origin: China	INGERSOLL-RAND/ARO 666053-344	Typically in Stock	$907.00
	Be the First to Write a Review
