Material Handling
>
Hoist and Rigging
>
Air Chain Hoist

INGERSOLL-RAND/ARO
Air Chain Hoist, 275 lb. Cap., 10 ft. Lift

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Chain Hoist, Load Capacity 275 lb., Series 7770E, Suspension Rigid to Trolley, Control Pendant, Lift 10 ft., Lift Speed 0 to 110 fpm, Min. Between Hooks 16-7/8 In., Reeving 1Overall Length 11-21/32 In., Overall Width 14-3/4 In., Trolley Type Air Powered, Brake Adjustable Band, Fits Beam Flange W 3-1/4 In. to 6 In., Minimum Radius Curve 42 In., Air Consumption 65 to 70 scfm, Air Pressure 90 psi, Red, Finish Powder Coated, Inlet Size 1/2 In. NPT, Noise Level 85 dBA, Standards ANSI B30.16

Grainger Item #	2NY69
Price (ea.)	$7,341.00
Brand	INGERSOLL-RAND/ARO
Mfr. Model #	7770E-3HA10-C6S
UNSPSC #	24101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	99.0
Availability	Item ships within 38 business days from supplier
Catalog Page No.	1424
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

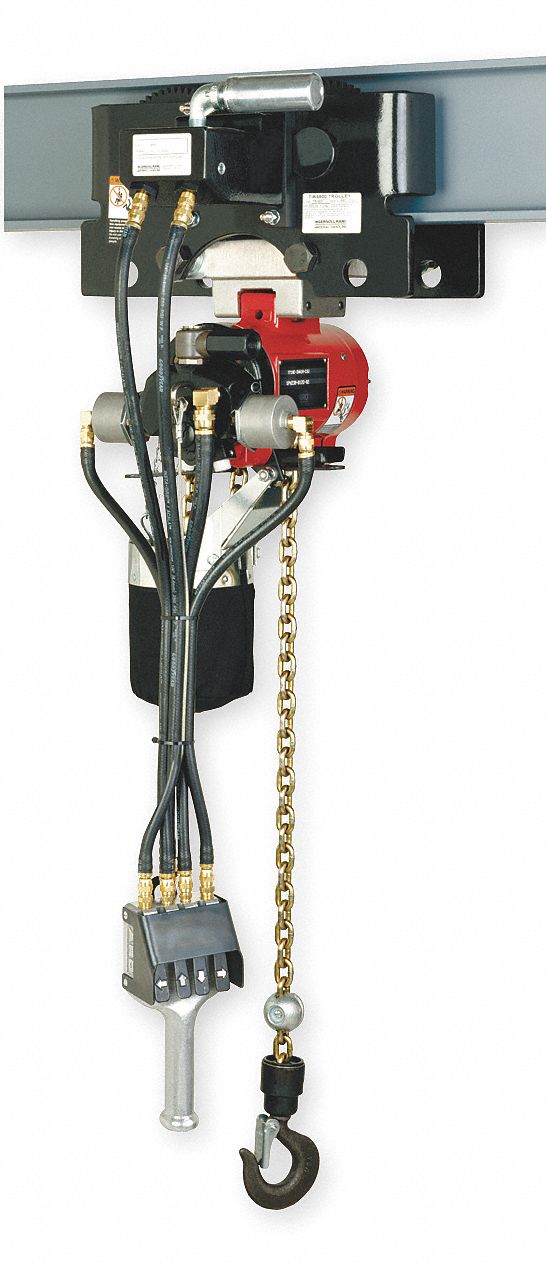

Air Chain Hoist, 275 lb. Cap., 10 ft. Lift

Enlarge Image

Item		Air Chain Hoist
Load Capacity		275 lb.
Series		7770E
Suspension		Rigid to Trolley
Control		Pendant
Lift		10 ft.
Lift Speed		0 to 110 fpm
Min. Between Hooks		16-7/8"
Reeving		1
Overall Length		11-21/32"
Overall Width		14-3/4"
Trolley Type		Air Powered
Brake		Adjustable Band
Fits Beam Flange W		3-1/4 " to 6"
Minimum Radius Curve		42"
Air Consumption		65 to 70 scfm
Air Pressure		90 psi
Color		Red
Finish		Powder Coated
Inlet Size		1/2" NPT
Noise Level		85 dBA
Standards		ANSI B30.16
Includes		Steel Chain Container
