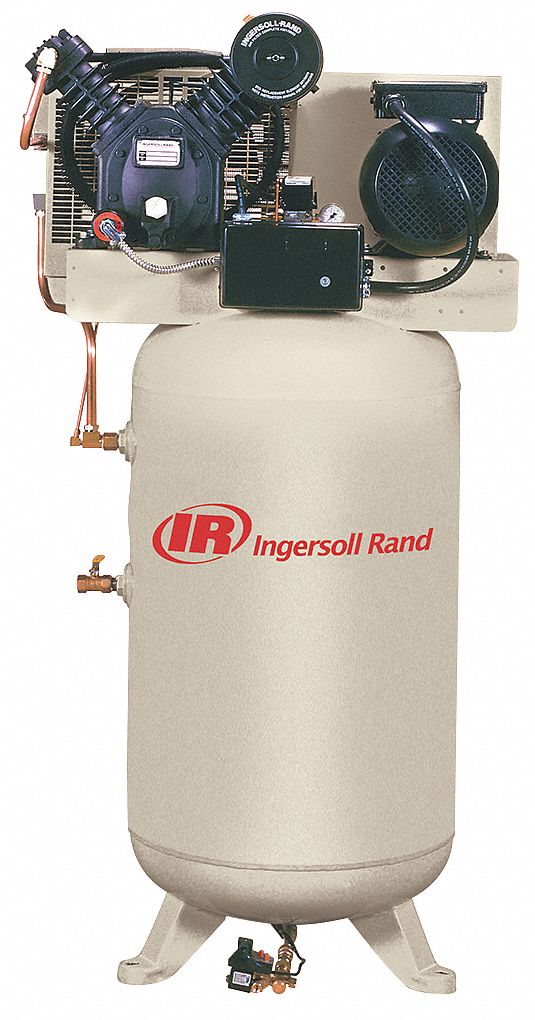

Electric Air Compressor, Fully Packaged, Splash Lubricated, Type 30, Two Stage, Cast Iron, 10 HP, Max. Pressure (PSI) 175, 35.2 Free Air CFM @ 90 PSI, 35 Free Air CFM @ 175 PSI, 35 Free Air CFM @ Max. Pressure, Voltage 230, 3 Phase, Amps AC 25, Tank (Gal.) 120, Vertical Tank Type, (F)NPT Outlet (In.) 3/4, Continuous Duty Cycle, 1050 RPM, Powder Coated Finish, NEMA Enclosure, Pressure Switch, EISA Compliant ODP
  • Grainger Item #16V894
    Price (ea.)$5,356.00
    BrandINGERSOLL-RAND
    Mfr. Model #2545K10A
    UNSPSC #40151601
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)956.0
    Availability Typically in Stock
    Catalog Page No.3997
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemElectric Air Compressor
Sub-CategoryType 30, Two Stage
TypeFully Packaged, Splash Lubricated
Pump TypeCast Iron
HP10
Max. Pressure (PSI)175
Free Air CFM @ 90 PSI35.2
Free Air CFM @ 175 PSI35
Free Air CFM @ Max. Pressure35
Voltage230
Phase3
Amps AC25
Tank (Gal.)120
Tank TypeVertical
Tank (ASME Code)Yes
(F)NPT Outlet (In.)3/4
Duty CycleContinuous
RPM1050
Thermal ProtectionYes
On Pressure Switch Setting140
Off Pressure Switch Setting175
FinishPowder Coated
EnclosureNEMA
ControlPressure Switch
Motor TypeEISA Compliant ODP
Length (In.)44
Width (In.)32
Height (In.)82
IncludesAir-Cooled Aftercooler, Low Oil Protection Switch, Electronic Drain Valve, E-Series Starter
StandardsCSA Approval
Oil Capacity (Qt.)2.5
Rated Pump Life (Hours)10,000

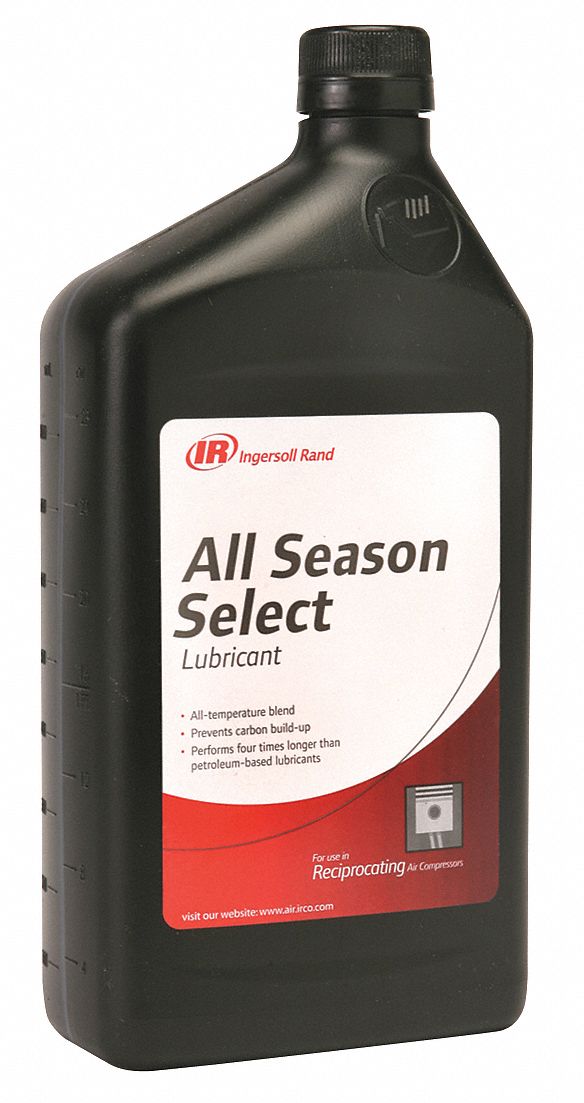

Optional Accessories

More Accessories

Brand:

INGERSOLL-RAND

Grainger Item #:

2YY83

Price (ea.):

$22.60
