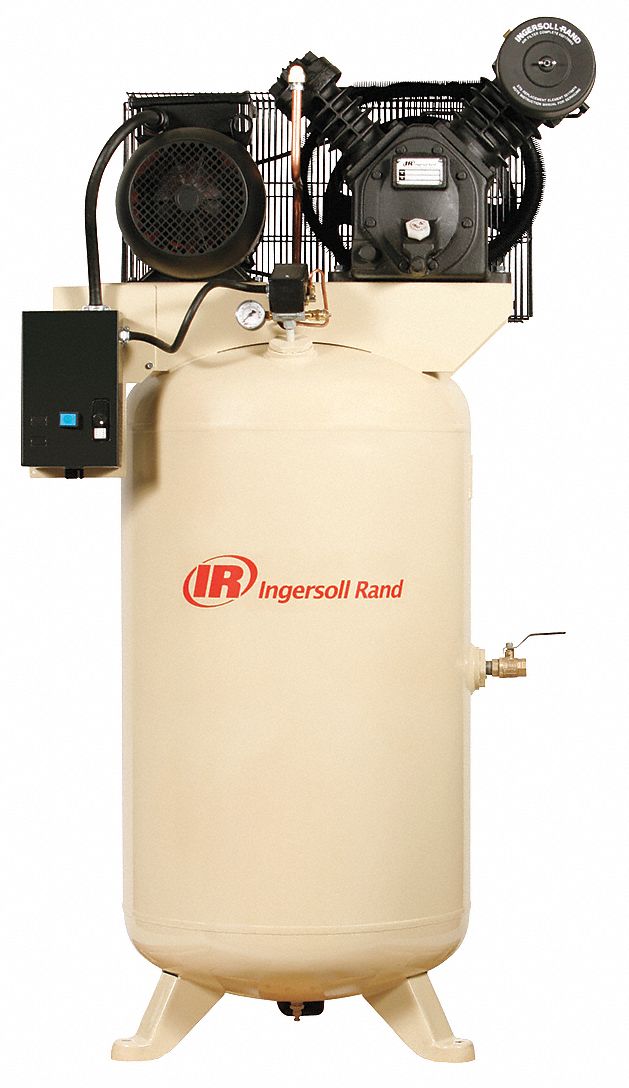

INGERSOLL-RAND Electric Two Stage Air Compressor 7.5HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electric Air Compressor, Base Model, Type 30, Two Stage, Cast Iron, 7-1/2 HP, Max. Pressure (PSI) 175, 24.2 Free Air CFM @ 90 PSI, 24 Free Air CFM @ 175 PSI, 24 Free Air CFM @ Max. Pressure, Voltage 230, 3 Phase, Amps AC 22, Tank (Gal.) 80, Vertical Tank Type, (F)NPT Outlet (In.) 3/4, Continuous Duty Cycle, 1500 RPM, Powder Coated Finish, NEMA Enclosure, Pressure Switch, EISA Compliant ODP

Grainger Item #	16V886
Price (ea.)	$3,134.00
Brand	INGERSOLL-RAND
Mfr. Model #	2475N7.5A
UNSPSC #	40151601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	578.0
Availability	Typically in Stock
Catalog Page No.	3997
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Electric Air Compressor
Sub-Category		Type 30, Two Stage
Type		Base Model
Pump Type		Cast Iron
HP		7-1/2
Max. Pressure (PSI)		175
Free Air CFM @ 90 PSI		24.2
Free Air CFM @ 175 PSI		24
Free Air CFM @ Max. Pressure		24
Voltage		230
Phase		3
Amps AC		22
Tank (Gal.)		80
Tank Type		Vertical
Tank (ASME Code)		Yes
(F)NPT Outlet (In.)		3/4
Duty Cycle		Continuous
RPM		1500
Thermal Protection		Yes
On Pressure Switch Setting		140
Off Pressure Switch Setting		175
Finish		Powder Coated
Enclosure		NEMA
Control		Pressure Switch
Motor Type		EISA Compliant ODP
Length (In.)		36-1/2
Width (In.)		24
Height (In.)		70
Includes		Cast Iron Pump, ASME Coded Receiver Tank, NEMA 1 And ODP Motor, Mounted Magnetic Starter, AS&S Control, Oil Sight Glass And Manual Drain
Standards		CSA Approval
Oil Capacity (Oz.)		43
Rated Pump Life (Hours)		10,000
