Drain Valve, Maximum Pressure 250 PSI, Voltage @ 60 Hz 115 Volts, Drain Rate @ 100 PSI 1.0 GPM, Inlet 1/4 Inch, Outlet 1/4 Inch, Minimum/Maximum Temperature 33/265 Degrees Fahrenheit, Body Material Low Lead Brass, Height 3.8 Inches, Depth 10 Inches, Width 4.9 Inches, Single Phase, Industrial Electric Condensate, With Strainer and Timer, Electronic Drain

Grainger Item #	4N443
Price (ea.)	$408.00
Brand	INGERSOLL-RAND
Mfr. Model #	54410931
UNSPSC #	40141603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.4
Availability	Typically in Stock
Catalog Page No.	4006
Country of Origin (Country of Origin is subject to change.)	Ireland

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

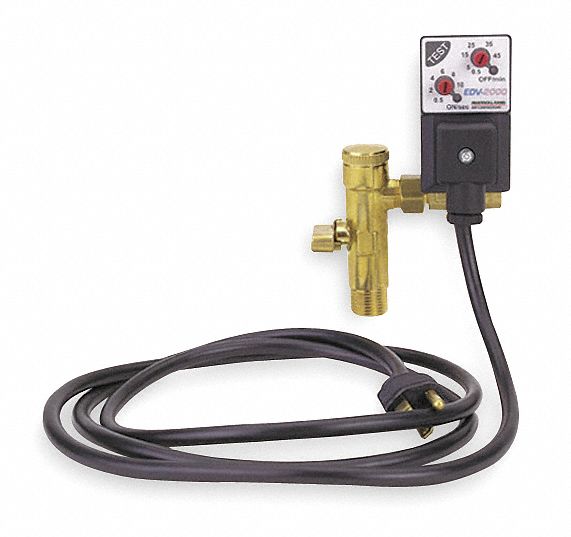

Drain Valve, 115 Volts, 1/ 2 In, 1/4 Out

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Automatic Drain Valve
Operation Type		Electronic
Max. Pressure (PSI)		250
Min. Pressure (PSI)		3
Adjustable Drain Cycle		30 Sec. to 45 Min.
Adjustable Purge Time (Sec.)		0.5 to 10
Drain Rate @ 100 PSI (GPM)		1.0
NPT Inlet (In.)		1/2
Drain Outlet Dia. (In.)		1/4
Operating Temp. (F) Min./Max.		33 to 265
Voltage		115
Hz		60
Amps AC		0.12
Enclosure		NEMA 4
Body Material		Low Lead Brass
Height (In.)		3-26/32
Width (In.)		4-29/32
Depth (In.)		10
