Material Handling
>
Winches
>
Air Winches

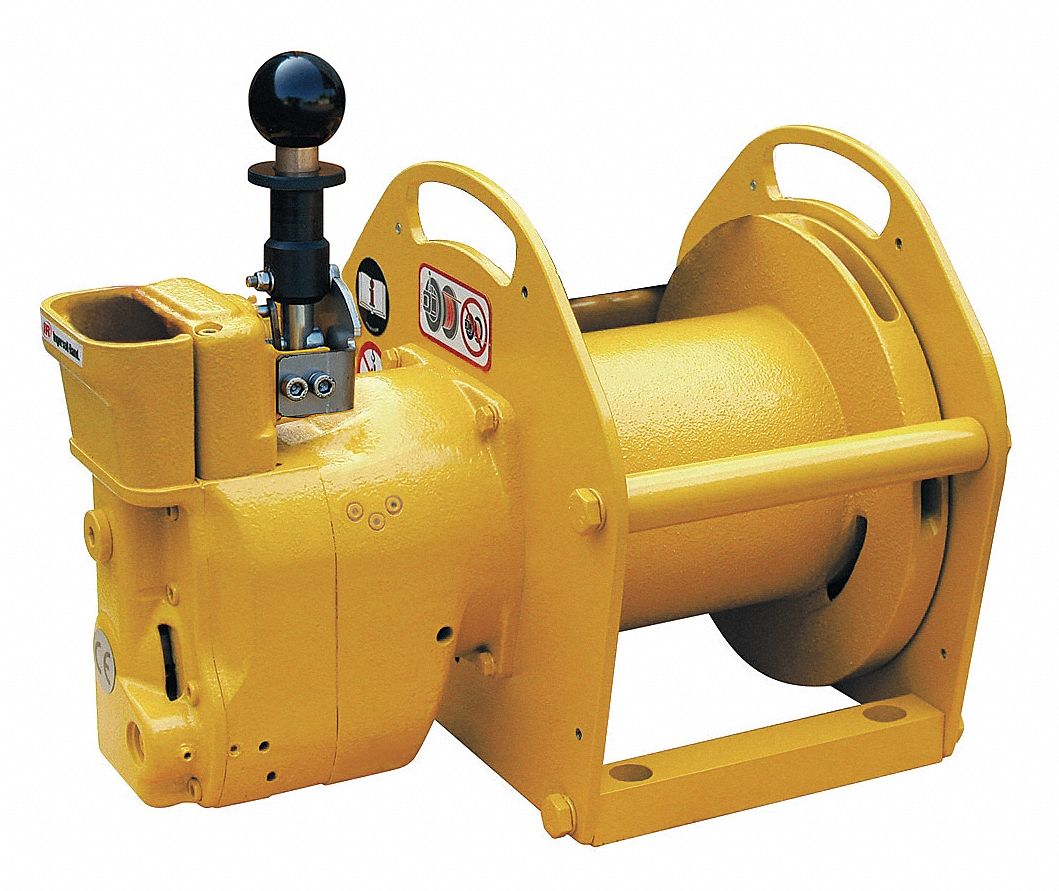

INGERSOLL-RAND Air Winch, Lever Ctrl, 4245 lb Max Pull

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Winch, For Lifting/Pulling, Gear Type Planetary, Lever Control, Gear Motor, Gear Ratio 250:1, Air Consumption 177 scfm, Required Pressure 90 psi, (F)NPT Inlet 3/4 In., Hose Size 1 In., 1st Layer Line Pull 4245 lb., 1st Layer Line Speed 18 fpm, 2nd Layer Line Pull 3875 lb., 2nd Layer Line Speed 20 fpm, 3rd Layer Line Pull 3564 lb., 3rd Layer Line Speed 21 fpm, 4th Layer Line Pull 3300 lb., 4th Layer Line Speed 23 fpmRecommended Wire Rope Dia. 3/8 In.

Grainger Item #	3CPD7
Price (ea.)	$17,338.00
Brand	INGERSOLL-RAND
Mfr. Model #	LS1500RGC-L
UNSPSC #	24101608
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	168.0
Availability	Item ships within 13 business days from supplier
Catalog Page No.	1462
Country of Origin (Country of Origin is subject to change.)	France

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Air Winch
Winch Type		For Lifting/Pulling
Series		Liftstar(R)
Gear Type		Planetary
Control Type		Lever Control
Motor Type		Gear Motor
Gear Ratio		250:1
Air Consumption		177 scfm
Required Pressure		90 psi
(F)NPT Inlet		3/4"
Hose Size		1"
1st Layer Line Pull		4245 lb.
1st Layer Line Speed		18 fpm
2nd Layer Line Pull		3875 lb.
2nd Layer Line Speed		20 fpm
3rd Layer Line Pull		3564 lb.
3rd Layer Line Speed		21 fpm
4th Layer Line Pull		3300 lb.
4th Layer Line Speed		23 fpm
Recommended Wire Rope Dia.		3/8"
Max. Length of Recommended Wire Rope		535 ft.
Overall Height		15-3/4"
Overall Width		12"
Overall Length		24-7/16"
Standards		FEM9.511 and FEM1001
