INGERSOLL CUTTING TOOL Ext Turning Holder, STGCR08-2C-SH

| Write a Review
| Read all Reviews
| Read all Ask & Answer

External Turning Holder, Without Shim, Style STGCR, Positive Rake, Rake Angle 7 Deg, Right Hand, Square Shank, Shank Width 1/2 In, Shank Height 1/2 In, Inscribed Circle 1/4 In, Overall Length 5 In, Insert Shape Triangle, Insert Thickness 0.094 In, SO25065I Insert Screw, Screw Held Lock, Torx Wrench T7, For Use With TCET, TCGT, TCMT Inserts

Grainger Item #	4RLW6
Price (ea.)	$134.45
Brand	INGERSOLL CUTTING TOOL
Mfr. Model #	STGCR08-2C-SH
UNSPSC #	23153308
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.405
Availability	Item ships within 3 business days from supplier
Catalog Page No.	3623
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

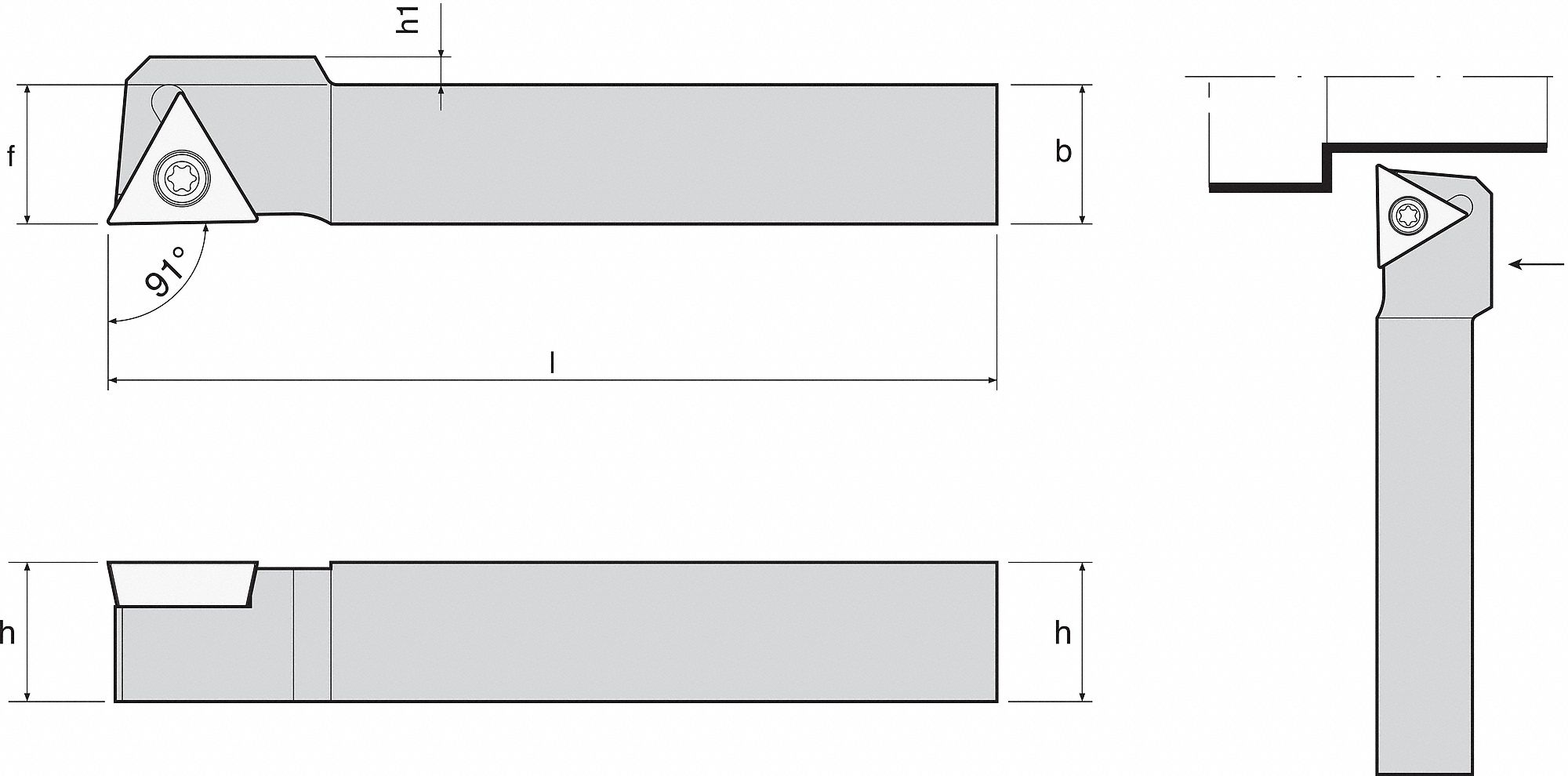

Enlarge Image

Item		External Turning Holder
Type		Without Shim
Nomenclature		STGCR08-2C-SH
Style		STGCR
Lock		Screw Held
Rake		Positive
Rake Angle (Deg.)		0
Left/Right Hand		Right Hand
Shank Width (In.)		1/2
Shank		Square
Shank Height (In.)		1/2
Overall Length (In.)		5
For Use With		TCET, TCGT, TCMT
Insert Shape		Triangle
Inscribed Circle (In.)		1/4
Insert Thickness (In.)		0.094
Insert Screw		SO25065I
Torx Wrench		T7
Dimension A (In.)		1/2
Dimension B (In.)		1/2
Dimension C (In.)		5
Dimension F (In.)		0.5
Package Quantity		1
