INGERSOLL CUTTING TOOL External Turning Holder, TWLNR16-3D

| Write a Review
| Read all Reviews
| Read all Ask & Answer

External Turning Holder, With Shim, Style TWLN, Cutting Edge Type -5, Negative Rake, Right Hand, Square Shank, Shank Width 1 In, Shank Height 1 In, Inscribed Circle 3/8 In, Overall Length 6 In, Insert Shape Trigon, Insert Thickness 3/16 In, DLM3 Clamp, DLS3 Clamp Screw, DSP3 Clamp Clip, Top Clamp Lock, PSW32 Shim, SO40090I Shim Screw, Torx Wrench L-W2.5, For Use With WNMA, WNMG Inserts

Grainger Item #	4RLF8
Price (ea.)	$136.10
Brand	INGERSOLL CUTTING TOOL
Mfr. Model #	TWLNR16-3D
UNSPSC #	23153308
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.87
Availability	Item ships within 3 business days from supplier
Catalog Page No.	3622
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		External Turning Holder
Type		With Shim
Nomenclature		TWLNR16-3D
Style		TWLN
Lock		Top Clamp
Rake		Negative
Rake Angle (Deg.)		-5
Left/Right Hand		Right Hand
Shank Width (In.)		1
Shank		Square
Shank Height (In.)		1
Overall Length (In.)		6
For Use With		WNMA, WNMG
Insert Shape		Trigon
Inscribed Circle (In.)		3/8
Insert Thickness (In.)		3/16
Clamp		DLM3
Clamp Screw		DLS3
Clamp Clip		DSP3
Shim		PSW32
Shim Screw		SO40090I
Torx Wrench		L-W2.5

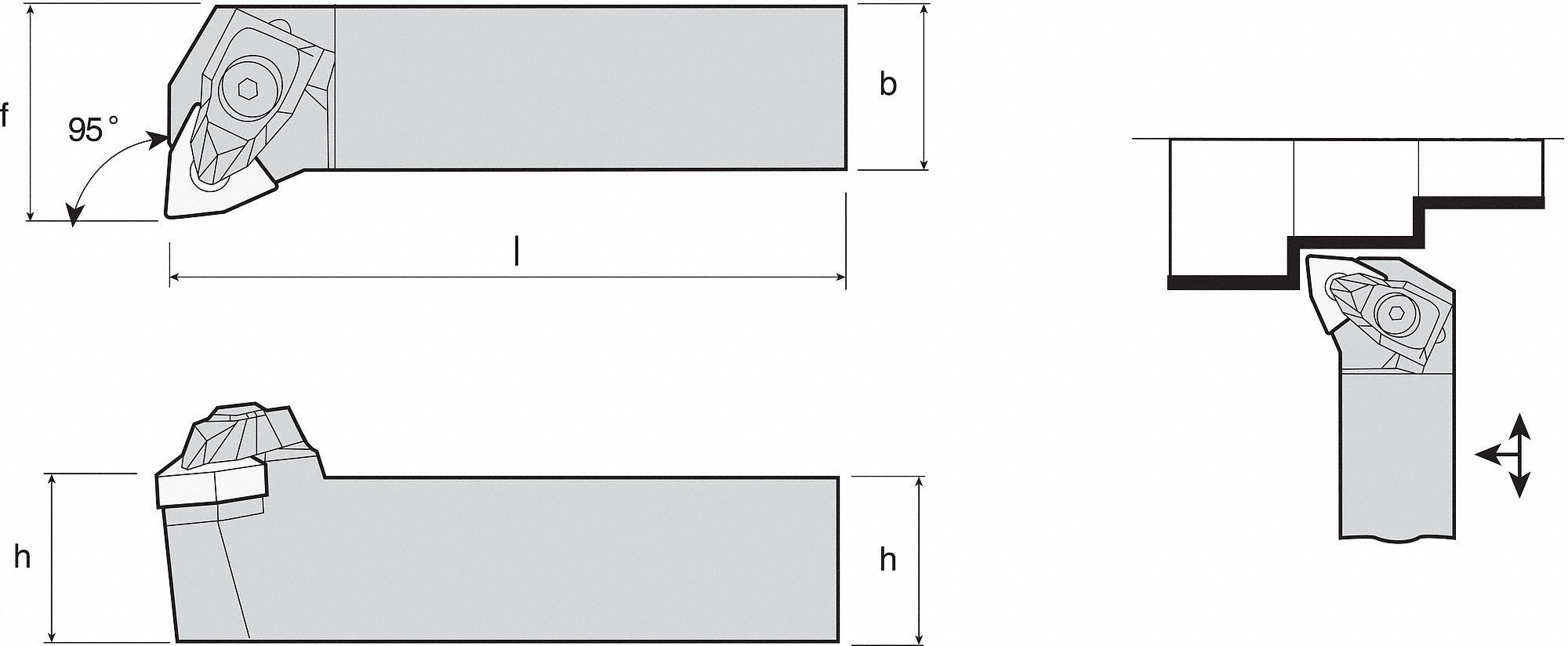

Dimension A (In.)		1
Dimension B (In.)		1
Dimension C (In.)		6
Dimension F (In.)		1.25
Package Quantity		1
