Machining
>
Milling Tools
>
Indexable End Mills

INGERSOLL CUTTING TOOL

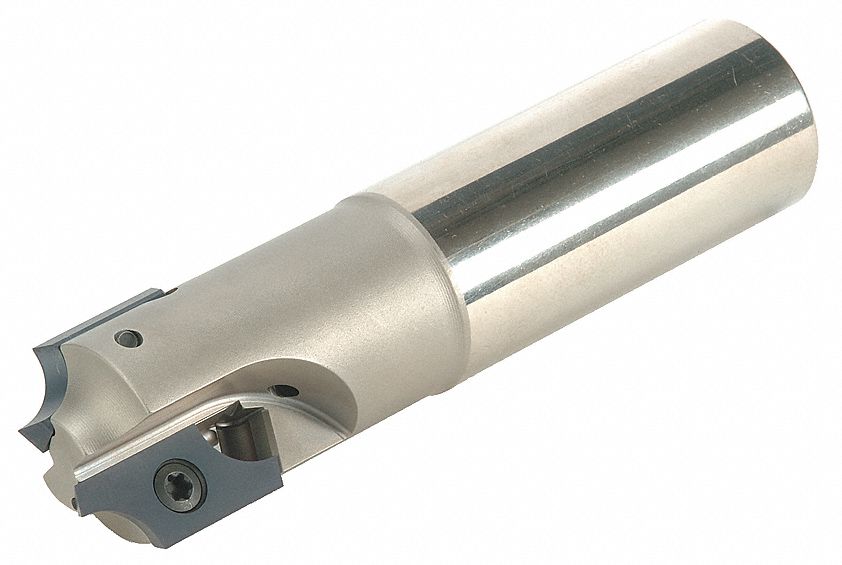

End Mill Index Holder, 15R4H-1002080R01

| Write a Review
| Read all Reviews
| Read all Ask & Answer

End Mill Indexable Toolholder, 2 Flute, Nomenclature 15R4H-1002080R01, Style 15R4H, Double Positive Rake, Rake Angle O.D. Rad Deg, Right Hand, Diameter 1.00, Bore 1.00, Weldon Shank, Shank Dia. 1.00 In., Overall Length 4.25 In, Nose Radius Various In, For Use With FEEW, Parallelogram Insert Shape

Grainger Item #	4MTG1
Price (ea.)	$372.75
Brand	INGERSOLL CUTTING TOOL
Mfr. Model #	15R4H-1002080R01
UNSPSC #	23153308
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.759
Availability	Item ships within 3 business days from supplier
Catalog Page No.	3633
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Endmill Cutter
Series		15R4H
Cutting Dia.		1.000"
Shank Dia.		1.000"
Coupling Size		1"
Depth of Cut		2.000"
Overall Length		4.250"
Shank Shape		Weldon
Neck Length		2.000"
Number of Inserts Required		2
Cutting Direction		Right Hand
Key		DS-T15T
ANSI Number		15R4H-1002080R01
