Machining
>
Indexable Inserts
>
Turning Inserts

INGERSOLL CUTTING TOOL

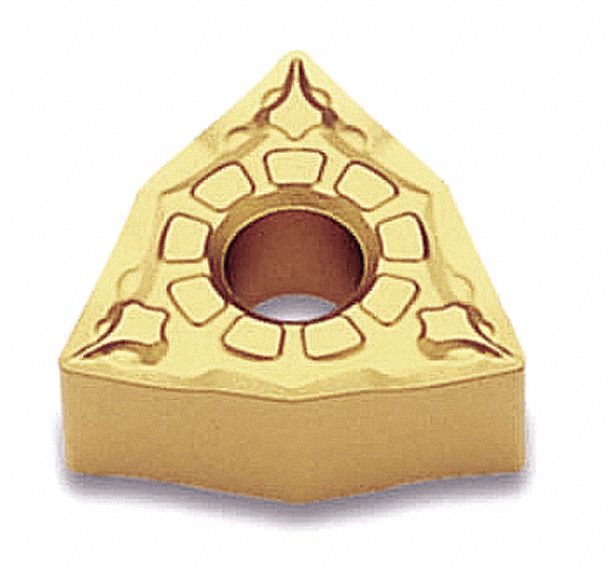

Carbide Turning Insert, WNMG331FG TT8125

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Carbide Turning Insert, 0 Degrees , 80 Degrees Trigon, Style WNMG, Insert Size 331, Chip-Breaker FG, Grade TT8125, Application Finishing, Workpiece Material Steel, Inscribed Circle 3/8 In, Insert Thickness 0.188 In, Nose Radius 0.016 In, Coating CVD, Cutting Direction Neutral, Mounting Hole Dia. 0.150 In, Mounting Style Top and Hole Clamping, Rake Negative, No. of Edges 6, ISO Number WNMG060404FG TT8125, ANSI Number WNMG331FG TT8125. Only shipped in quantities of 10.

Grainger Item #	4VKC1
Price (ea.)	$14.17
Brand	INGERSOLL CUTTING TOOL
Mfr. Model #	WNMG331FG TT8125
UNSPSC #	23171618
Ship Qty.	10
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.015
Availability	Item ships within 3 business days from supplier
Catalog Page No.	3620
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

Carbide Turning Insert, WNMG331FG TT8125

Enlarge Image

Item		Carbide Turning Insert
Insert Shape		80 Degrees Trigon
Style		WNMG
Insert Size		331
Chip-Breaker		FG
Grade		TT8125
Application		Finishing
Workpiece Material		Steel
Inscribed Circle		3/8"
Insert Thickness		0.1875"
Nose Radius		0.0157"
Coating		CVD
Cutting Direction		Neutral
Mounting Hole Dia.		0.150"
Mounting Style		Top and Hole Clamping
Rake		Negative
No. of Edges		6
ISO Number		WNMG060404FG TT8125
ANSI Number		WNMG331FG TT8125
For Use With		TWLN Toolholders, A-TWLN Boring Bars
