Machining
>
Indexable Inserts
>
Turning Inserts

INGERSOLL CUTTING TOOL
Carbide Turning Insert, TNMG431 TT8125

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Carbide Turning Insert, 0 Degrees , Triangle, Style TNMG, Insert Size 431, Grade TT8125, Application General Purpose, Workpiece Material Steel, Inscribed Circle 1/2 In, Insert Thickness 0.188 In, Nose Radius 0.016 In, Coating CVD, Cutting Direction Neutral, Mounting Hole Dia. 0.203 In, Mounting Style Top and Hole Clamping, Rake Negative, No. of Edges 6, ISO Number TNMG220404 TT8125, ANSI Number TNMG431 TT8125. Only shipped in quantities of 10.

Grainger Item #	4VJZ5
Price (ea.)	$19.52
Brand	INGERSOLL CUTTING TOOL
Mfr. Model #	TNMG431 TT8125
UNSPSC #	23171618
Ship Qty.	10
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.035
Availability	Item ships within 3 business days from supplier
Catalog Page No.	3619
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

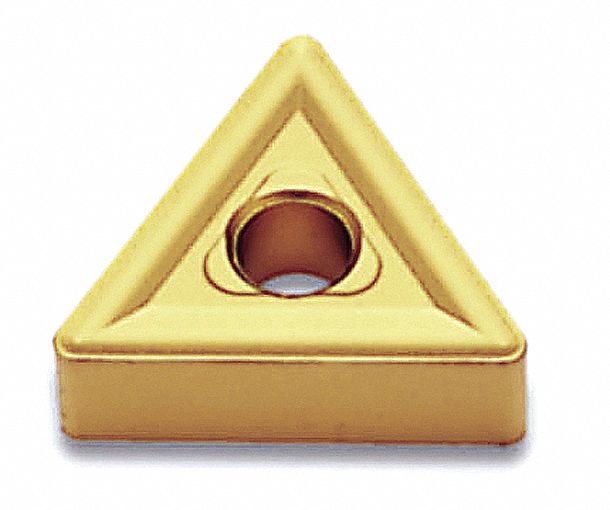

Enlarge Image

Item		Carbide Turning Insert
Insert Shape		Triangle
Style		TNMG
Insert Size		431
Chip-Breaker		Common
Grade		TT8125
Application		General Purpose
Workpiece Material		Steel
Inscribed Circle		1/2"
Insert Thickness		0.1875"
Nose Radius		0.0157"
Coating		CVD
Cutting Direction		Neutral
Mounting Hole Dia.		0.203"
Mounting Style		Top and Hole Clamping
Rake		Negative
No. of Edges		6
ISO Number		TNMG220404 TT8125
ANSI Number		TNMG431 TT8125
For Use With		TTFN, TTJN Toolholders
