INGERSOLL CUTTING TOOL

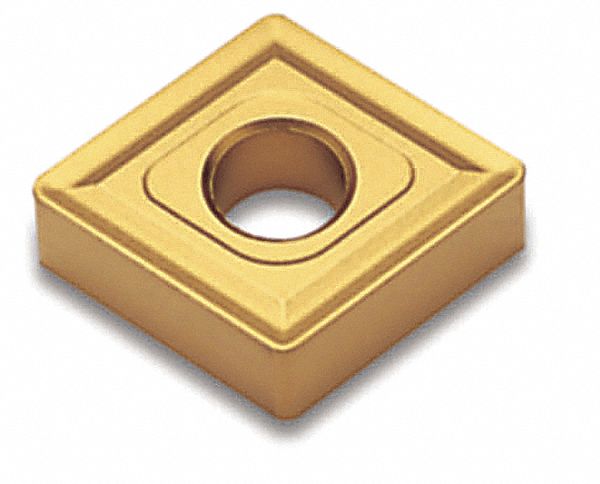

Carbide Turning Insert, CNMG432 TT8115

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Carbide Turning Insert, 0 Degrees , 80 Degrees Rhombic, Style CNMG, Insert Size 432, Grade TT8115, Application General Purpose, Workpiece Material Steel, Inscribed Circle 1/2 In, Insert Thickness 0.188 In, Nose Radius 0.031 In, Coating CVD, Cutting Direction Neutral, Mounting Hole Dia. 0.203 In, Mounting Style Top and Hole Clamping, Rake Negative, No. of Edges 4, ISO Number CNMG120408 TT8115, ANSI Number CNMG432 TT8115. Only shipped in quantities of 10.

Grainger Item #	4VHT3
Price (ea.)	$17.47
Brand	INGERSOLL CUTTING TOOL
Mfr. Model #	CNMG432 TT8115
UNSPSC #	23171618
Ship Qty.	10
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.022
Availability	Typically in Stock
Catalog Page No.	3618
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Carbide Turning Insert
Insert Shape		80 Degrees Rhombic
Style		CNMG
Insert Size		432
Chip-Breaker		Common
Grade		TT8115
Application		General Purpose
Workpiece Material		Steel
Inscribed Circle		1/2"
Insert Thickness		0.1875"
Nose Radius		0.0312"
Coating		CVD
Cutting Direction		Neutral
Mounting Hole Dia.		0.203"
Mounting Style		Top and Hole Clamping
Rake		Negative
No. of Edges		4
ISO Number		CNMG120408 TT8115
ANSI Number		CNMG432 TT8115
For Use With		TCKN, TCLN, TCMN Toolholders, A-TCLN Boring Bars
