Machining
>
Indexable Inserts
>
Turning Inserts

INGERSOLL CUTTING TOOL
Carbide Turning Insert, DNMG332FG TT8115

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Carbide Turning Insert, 0 Degrees , 55 Degrees Rhombic, Style DNMG, Insert Size 332, Chip-Breaker FG, Grade TT8115, Application Finishing, Workpiece Material Steel, Inscribed Circle 3/8 In, Insert Thickness 0.188 In, Nose Radius 0.031 In, Coating CVD, Cutting Direction Neutral, Mounting Hole Dia. 0.150 In, Mounting Style Top and Hole Clamping, Rake Negative, No. of Edges 4, ISO Number DNMG110408FG TT8115, ANSI Number DNMG332FG TT8115. Only shipped in quantities of 10.

Grainger Item #	4VHL5
Price (ea.)	$19.35
Brand	INGERSOLL CUTTING TOOL
Mfr. Model #	DNMG332FG TT8115
UNSPSC #	23171618
Ship Qty.	10
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.016
Availability	Item ships within 3 business days from supplier
Catalog Page No.	3619
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

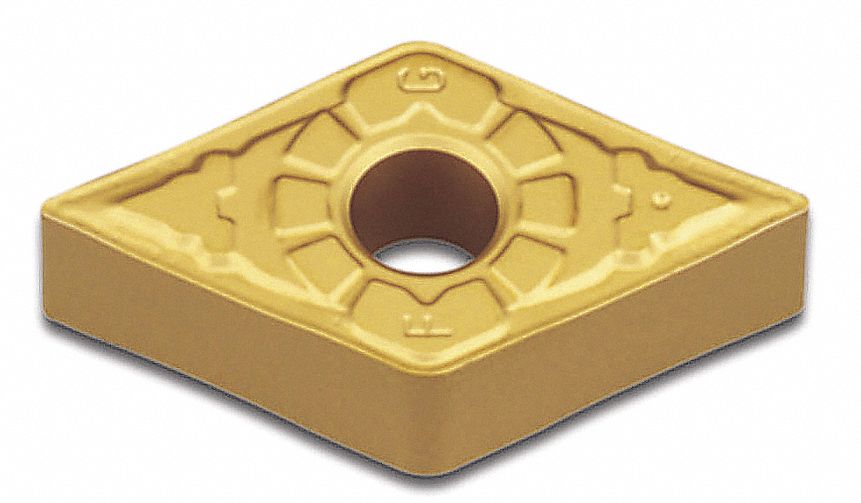

Carbide Turning Insert, DNMG332FG TT8115

Enlarge Image

Item		Carbide Turning Insert
Insert Shape		55 Degrees Rhombic
Style		DNMG
Insert Size		332
Chip-Breaker		FG
Grade		TT8115
Application		Finishing
Workpiece Material		Steel
Inscribed Circle		3/8"
Insert Thickness		0.1875"
Nose Radius		0.0312"
Coating		CVD
Cutting Direction		Neutral
Mounting Hole Dia.		0.150"
Mounting Style		Top and Hole Clamping
Rake		Negative
No. of Edges		4
ISO Number		DNMG110408FG TT8115
ANSI Number		DNMG332FG TT8115
For Use With		TDJN, TDQN, TDNNN Toolholders, A-TDJN Boring Bars
