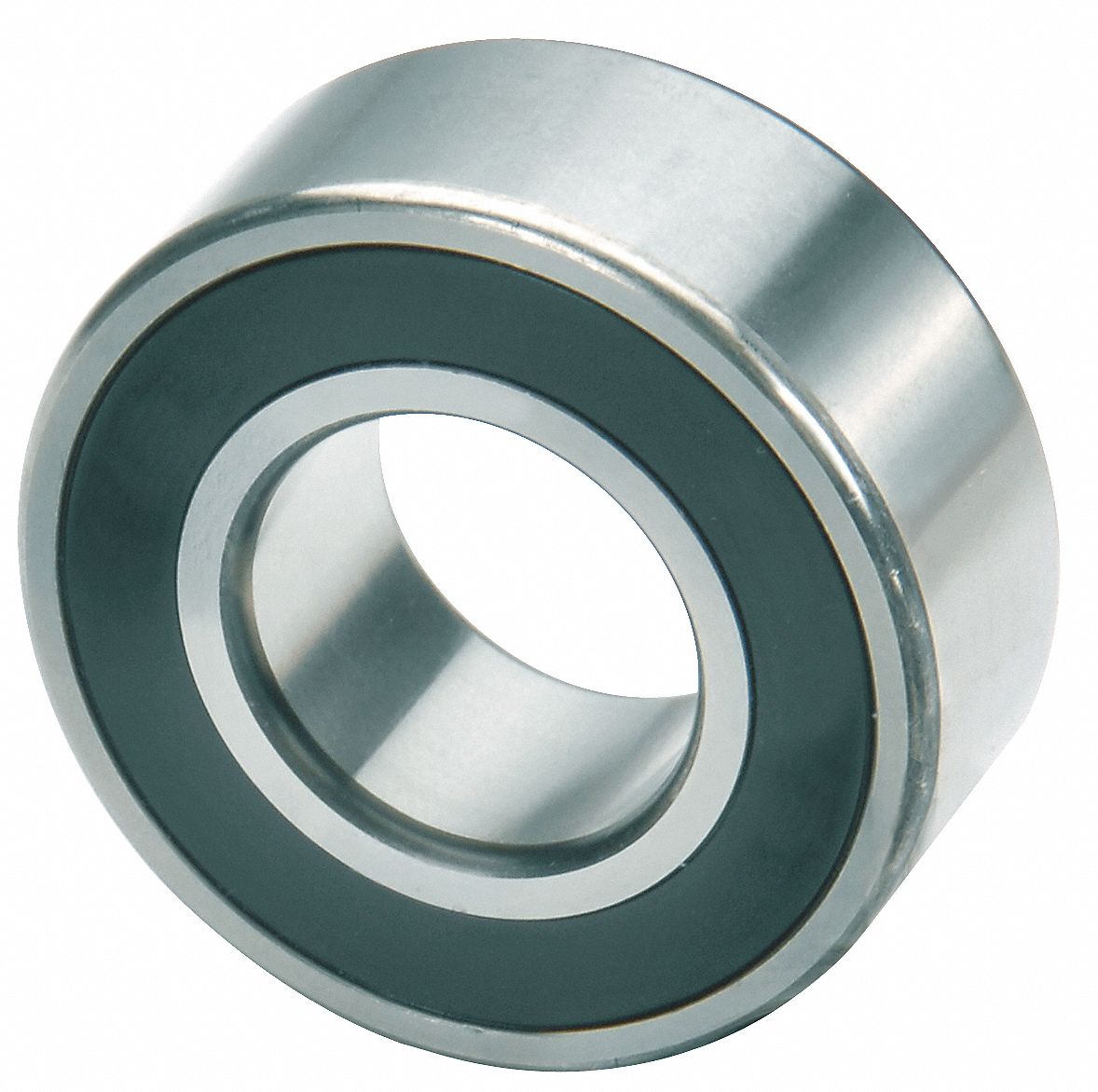

INA Angular Contact BRG, DBL Row, 12mm Bore

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Angular Contact Ball Bearing, Double Row, Contact Angle 25 Degrees, Bore Dia. 12 mm, Outside Dia. 32 mm, Width 15.87 mm, Max RPM 20000, Dynamic Load Capacity 2, 057 Lb, Dynamic Load Capacity 9, 150 N, Static Load Capacity 1, 135 Lb, Static Load Capacity 5, 050 N, ABEC Tolerance ABEC 1, Temp Range -20 to 300 F, Cage Material Steel, Oil Lubrication

Grainger Item #	4ZZH4
Price (ea.)	$15.66
Brand	INA
Mfr. Model #	3201J
UNSPSC #	31171504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.14
Availability	Clearance - limited quantity available
Catalog Page No.	206
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Angular Contact Ball Bearing
Type		Double Row
Contact Angle (Degree)		25
Bore Dia.		12mm
Outside Dia.		32mm
Width		15.87mm
Max. RPM		20000
Dynamic Load Capacity (Lb.)		2,057
Dynamic Load Capacity (N)		9,150
Static Load Capacity (Lb.)		1,135
Static Load Capacity (N)		5,050
ABEC Tolerance		ABEC 1
Temp. Range (F)		-20 to 300
Cage Material		Steel
Lubrication		Oil
