IDEAL Toggle Switch, SPDT, 3 Conn., On/Off/ On

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Toggle Switch, Contact Form SPDT, Number of Connections 3, Switch Function On/Off/Momentary On, Terminals Screw, Mounting Hole 0.5 In. Dia., AC Contact Rating 20A @ 125v, 10A @ 250VHP 3/4, Actuator Style Bat, Actuator Length 0.75 In., Stem Length 0.5 In., Stem Dia. and Thread Size 15/32-32 NS-2B, Operating Temp. Range 32 Degrees to 185 Degrees F, Actuator Color Silver, Stem Color Silver, Special Features Factory Tested 100, 00 Cycles to 21A @ 14.8VDC, Standards UL Recognized/CSA

Grainger Item #	1XWP9
Price (ea.)	$14.00
Brand	IDEAL
Mfr. Model #	774094
UNSPSC #	39121507
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.06
Availability	Typically in Stock
Catalog Page No.	400
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

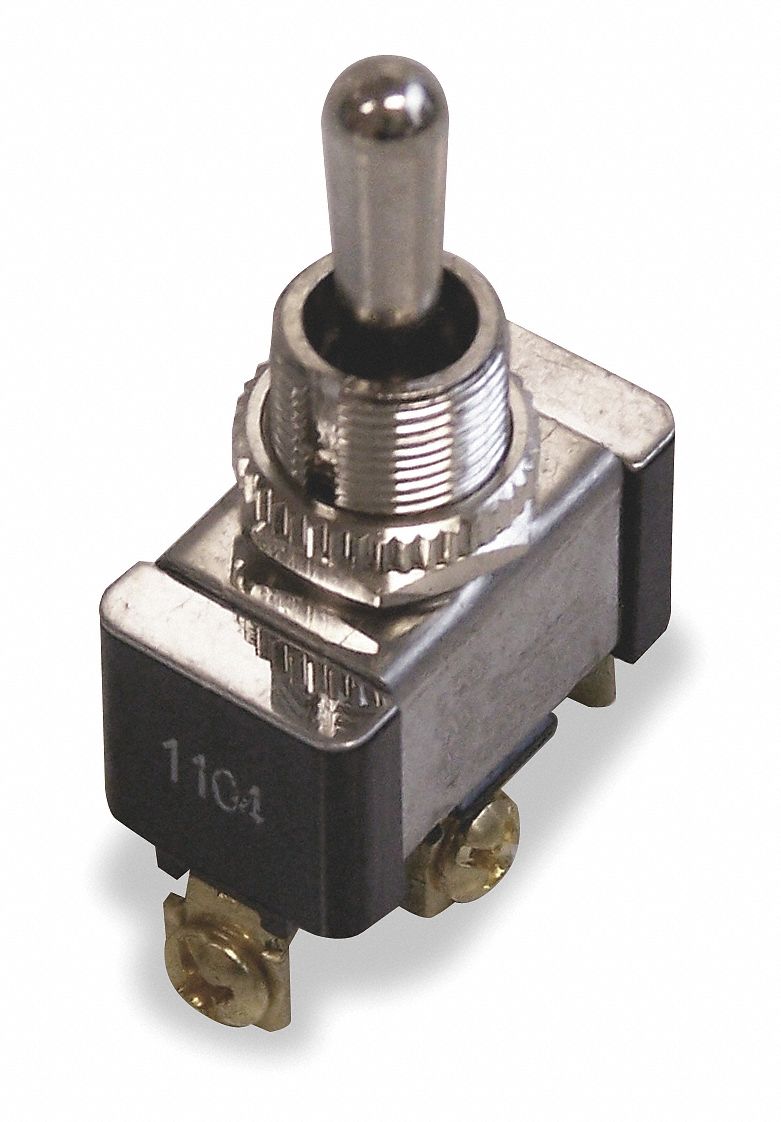

Toggle Switch, SPDT, 3 Conn., On/Off/ On

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Toggle Switch
Contact Form		SPDT
Number of Connections		3
Switch Function		On/Off/Momentary On
Terminals		Screw
Mounting Hole		0.5" Dia.
AC Contact Rating		20A @ 125v, 10A @ 250V
HP		3/4
Actuator Style		Bat
Actuator Length		0.75"
Stem Length		0.5"
Stem Dia. and Thread Size		15/32-32 NS-2B
Operating Temp. Range		32 Degrees to 185 Degrees F
Actuator Color		Silver
Stem Color		Silver
Special Features		Factory Tested 100,00 Cycles to 21A @ 14.8VDC
Recommended Use		Power Tool and Motor Control Switch Applications
Standards		UL Recognized/CSA
