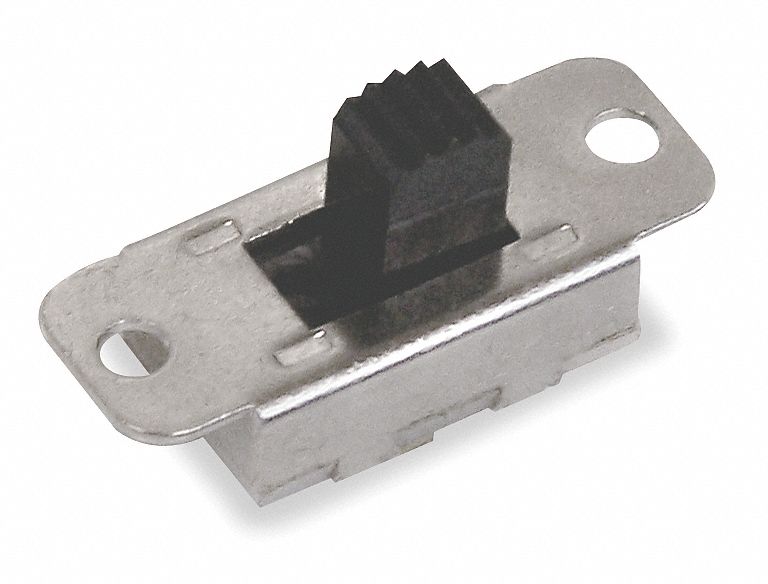

IDEAL Slide Switch, SPST, 2 Conn., On/Off

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Slide Switch, Contact Form SPST, Number of Connections 2, Switch Function On/Off, Terminals Solder Lug, Mounting Hole 0.563 x 0.875, AC Contact Rating 10A @ 125V, 5A @ 250vHP -, Actuator Style Square, Actuator Length 0.75 In., Stem Length 0.5 In., Stem Dia. and Thread Size 15/32-32 NS-2, Operating Temp. Range 32 Degrees to 185 Degrees F, Actuator Color Silver, Stem Color Silver, Special Features Factory Tested 100, 00 Cycles to 21A @ 14.8VDC, Standards UL Recognized/CSA

Grainger Item #	1XWT4
Price (ea.)	$4.42
Brand	IDEAL
Mfr. Model #	774051
UNSPSC #	39121507
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.04
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Slide Switch
Contact Form		SPST
Number of Connections		2
Switch Function		On/Off
Terminals		Solder Lug
Mounting Hole		0.563 x 0.875
AC Contact Rating		10A @ 125V, 5A @ 250v
Actuator Style		Square
Actuator Length		0.75"
Stem Length		0.5"
Stem Dia. and Thread Size		15/32-32 NS-2
Operating Temp. Range		32 Degrees to 185 Degrees F
Actuator Color		Silver
Stem Color		Silver
Special Features		Factory Tested 100,00 Cycles to 21A @ 14.8VDC
Recommended Use		Power Tool and Motor Control Switch Applications
Standards		UL Recognized/CSA
