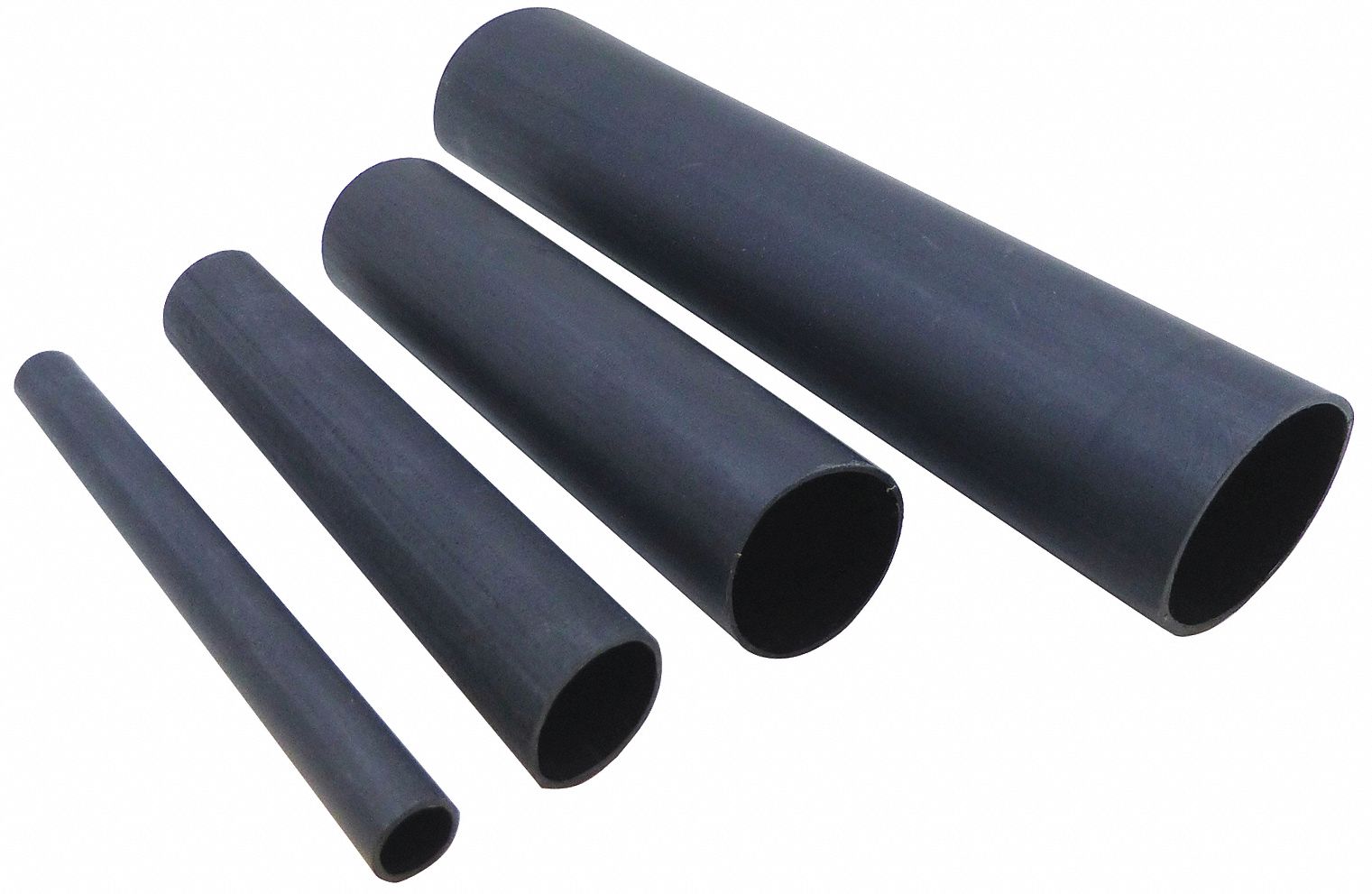

IDEAL Heat Shrink, 6in Length, 6-1 AWG, PK5

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Heavy-Wall Heat Shrink, Wire Range 1/0 to 8 AWG, Length 6 in., I.D. Before Shrinking (In.) 0.75, I.D. After Shrinking (In.) 0.24, Shrink Ratio 3:1, Wall Thickness After Shrinking (In.) 0.09, Material of Construction TS-46 Irradiated Cross-Linked Polyolefin, Temp. Range (F) -67 to 230, Max. Voltage 600, Color Black, Resists Common Fluids and Solvents, Features Maximum Flame Retardancy

Grainger Item #	25A151
Price (pk.)	$69.80
Package Qty.	5
Brand	IDEAL
Mfr. Model #	46-347
UNSPSC #	39121711
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.048
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Heavy-Wall Heat Shrink, 6in Length, 6-1 AWG
Wire Range		8 - 1/0 AWG
Length		6"
I.D. Before Shrinking (In.)		0.75
I.D. After Shrinking (In.)		0.24
Shrink Ratio		3:1
Wall Thickness After Shrinking (In.)		0.09
Material of Construction		TS-46 Irradiated cross-linked polyolefin
Temp. Range (F)		-67 to 230
Max. Voltage		600
Color		Black
Resists		Common Fluids and Solvents
Features		Maximum flame retardancy
Standards		Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4, 2.5, MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and NEMA insulation thickness requirements
