Power Transmission
>
Speed Reducers
>
Speed Reducers

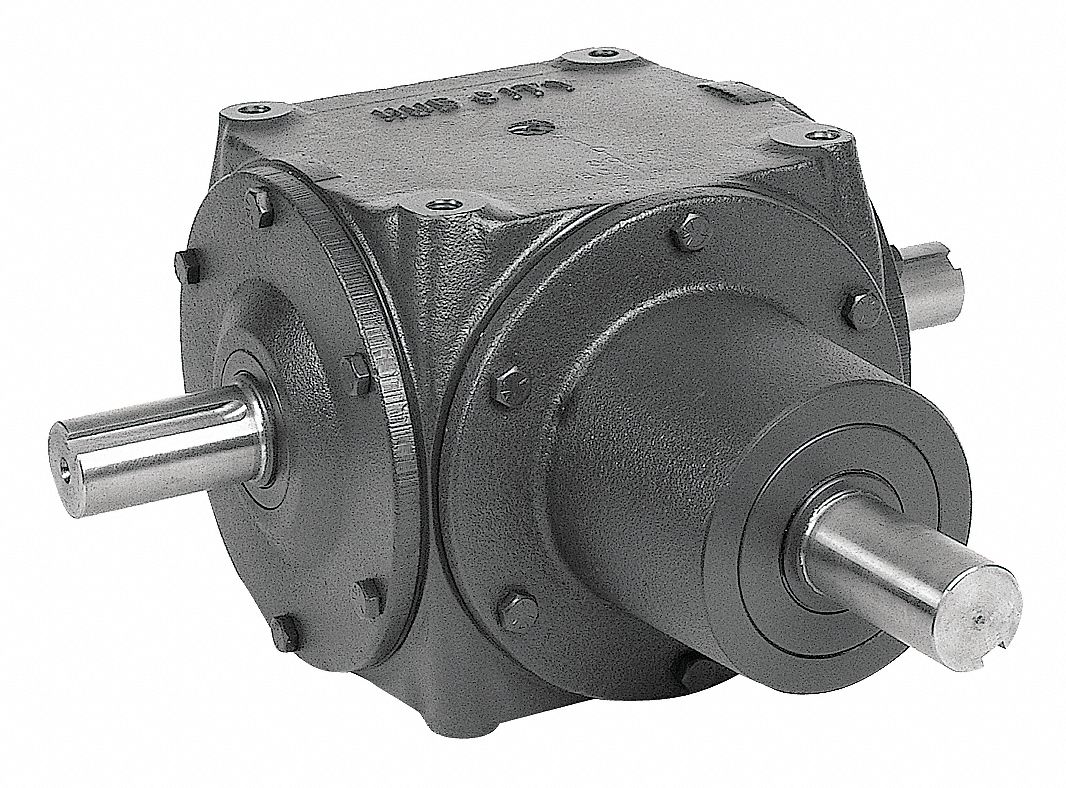

HUB CITY Gear Drive, Bevel, 1750 rpm, 56 HP, CI

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Gear Drive, Bevel, Right Angle, Standard Duty, Input RPM 1750, Nominal Output RPM 875, Overhung Load 750 Lb., Nominal Ratio 2:1, Max. Input HP 56, Max. Torque 4070 In.-Lbs., Number of Stages 1, Reversible Rotation, Double Lip Oil Seal, Tapered Roller Bearings, Cast Iron Housing, Output Shaft Dia. 1-1/2 In.

Grainger Item #	14A687
Price (ea.)	$3,943.00
Brand	HUB CITY
Mfr. Model #	800-2/1ABSP
UNSPSC #	26111503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	90.0
Availability	Item ships within 9 business days from supplier
Catalog Page No.	136
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Gear Drive
Type		Bevel
Shaft Orientation		Right Angle
Duty		Standard
Input RPM		1750
Nominal Output RPM		875
Overhung Load (Lb.)		750
Nominal Ratio		2:1
Max. Input HP		56
Max. Torque (In.-Lbs.)		4070
Number of Stages		1
Rotation		Reversible
Base		Optional
Mounting		Any Position Except Input Motor Shaft Up
Lubrication		Shipped Dry, Recommend 90W EP
Oil Seal		Double Lip
Bearings		Tapered Roller
Pinion		Hardened
Gearing		Spiral Bevel
Housing		Cast Iron
Finish		Painted Gray
Shaft Assembly		Double Output
Output Shaft Dia. (In.)		1-1/2
